ubiquiti

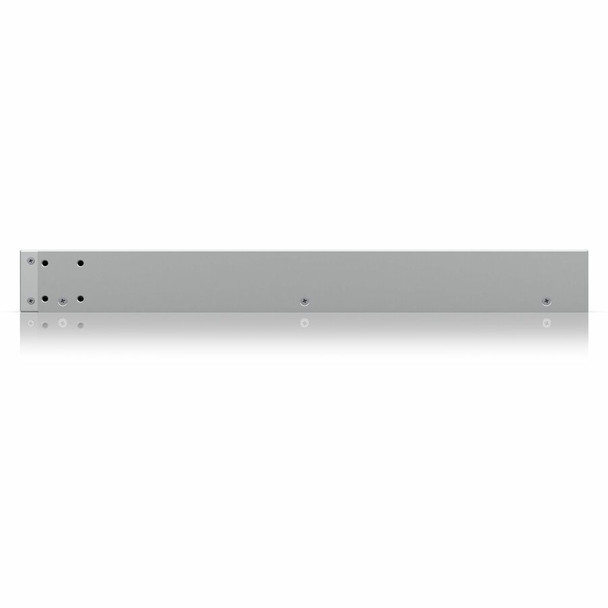

Ubiquiti USW-Pro-48-PoE Layer 3 Switch
- SKU:
- 19188186
- MPN:
- usw-pro-48-poe
- Availability:
- Out of stock
- Stock Update:
- 04/04/2026 04:08:47 PM PST
- Stock Update:
- 04/04/2026 04:08:47 PM PST
Description
This item is brand-new, factory sealed.
Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
- USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports
- USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports
Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.
Near-Silent Cooling
The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.
Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.
802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE.
Redundant Power Option
The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
Package Contents:
- USW-Pro-48-PoE Layer 3 Switch
- Rack Mount Hardware
Features
- CE
- FCC
- IC
- Anatel: 13790-20-08356
Additional Information:
- Switching Capacity: 176 Gbps
- Total Non-Blocking Throughput: 88 Gbps
- Forwarding Rate: 131 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- Management: Ethernet, AR
- Heat Dissipation: 204.7 BTU/hr (Excluding PoE Output)
- Supported Rack Depth: 400~1200 mm (15.7-47.2")
- LCM Display: 1.3" touchscreen
- ESD Protection: Air: ± 16kV, contact: ± 12kV
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- DHCP Server (Local Networks): Yes
- Inter-VLAN Routing (Local Networks): Yes
- Static Routing (Local Networks): Yes
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- QoS (DSCP): Yes
- Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
- Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Virtual Network Override: Yes
Application/Usage:
Network
Wireless Access Point
Security Camera
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | AC/DC |
| PoE Budget | 600 W |
| Frequency |
|
| Input Voltage |
|
| PoE (RJ-45) Port | Yes |
| Power Consumption | 660 W |
| Physical Characteristics | |
| Product Material | SGCC Steel |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 13.67 lb |
| Height | 1.7" |
| Compatible Rack Unit | 1U |
| Width | 17.4" |
| Depth | 15.7" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 48 |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| General Information | |
| Brand Name | Ubiquiti |
| Manufacturer Website Address | http://www.ui.com |
| Product Type | Ethernet Switch |
| Product Name | USW-Pro-48-POE Ethernet Switch |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-PRO-48-POE |
| Product Model | USW-Pro-48-POE |
| Product Line | Pro |
| Media & Performance | |
| Ethernet Technology |
|
| Maximum Data Transfer Rate | 1.25 GB/s |
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x |
| Technical Information | |
| Features |
|
