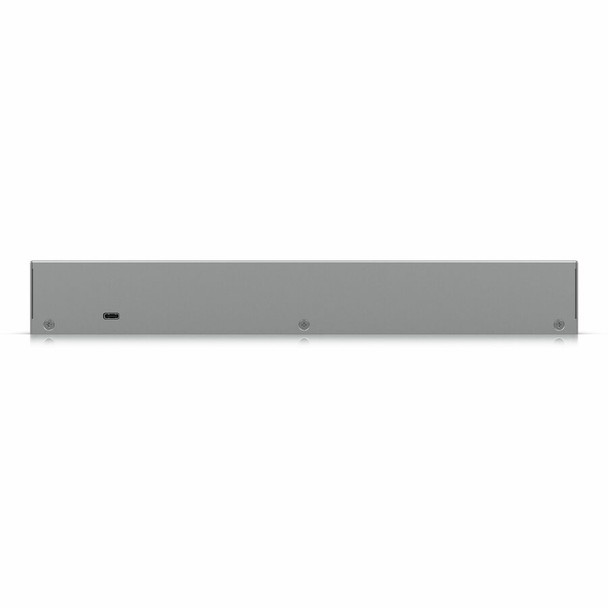

Ubiquiti Pro Max Layer 3 Switch (usw-pro-max-16)
(No reviews yet)
Write a Review
- SKU:
- 20830579
- MPN:
- usw-pro-max-16
- Availability:
- Out of stock
- Stock Update:
- 01/12/2026 02:09:08 PM PST
- Stock Update:
- 01/12/2026 02:09:08 PM PST
Description
This item is brand-new, factory sealed.
Ubiquiti USW-Pro-Max-16- A 16-port, Layer 3 Etherlighting switch 2.5 GbE and versatile mounting options.
- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (4) 2.5 GbE RJ45 ports
- (12) GbE RJ45 ports
- (2) 10G SFP+ ports
- Versatile desktop, wall, and rack** mounting
- Silent, fanless cooling system
- Data Transfer Rate: 2.5E+3 Megabits Per Second
- Manufacturer: Ubiquiti Networks
- UPC: 810084694541
- Package Dimensions: 20.4 x 9.7 x 4.2 inches
- Item Weight: 6.59 pounds
A 16-port, Layer 3 Etherlighting switch 2.5 GbE and versatile mounting options.
Features
Package Contents:
Network
- USW-Pro-Max-16 Ethernet Switch
- AC/DC Adapter
Certifications & Standards:
- CE
- FCC
- IC
- Anatel: 08953-24-08356
Additional Information:
- Switching Capacity: 84 Gbps
- Total Non-Blocking Throughput: 42 Gbps
- Forwarding Rate: 62 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- Management: Ethernet, AR
- Heat Dissipation: 85.3 BTU/hr
- Supported Rack Depth: 400~1200 mm (15.7-47.2")
- LCM Display: 1.3" touchscreen
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- DHCP Server (Local Networks): Yes
- Inter-VLAN Routing (Local Networks): Yes
- Static Routing (Local Networks): Yes
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- QoS (DSCP): Yes
- Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
- Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Virtual Network Override: Yes
Application/Usage:
Network
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source |
|
| Input Voltage |
|
| Power Consumption | 25 W |
| Physical Characteristics | |
| Product Material | SGCC Steel |
| Form Factor |
|
| Weight (Approximate) | 4.30 lb |
| Height | 1.7" |
| Compatible Rack Unit | 1U |
| Width | 12.8" |
| Depth | 6.3" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 16 |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| General Information | |
| Brand Name | Ubiquiti |
| Manufacturer Website Address | http://www.ui.com |
| Product Type | Ethernet Switch |
| Product Name | USW-Pro-Max-16 Ethernet Switch |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-PRO-MAX-16 |
| Product Model | USW-Pro-Max-16 |
| Product Line | Pro Max |
| Media & Performance | |
| Ethernet Technology |
|
| Maximum Data Transfer Rate | 1.25 GB/s |
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x |
| Technical Information | |
| Features |
|
