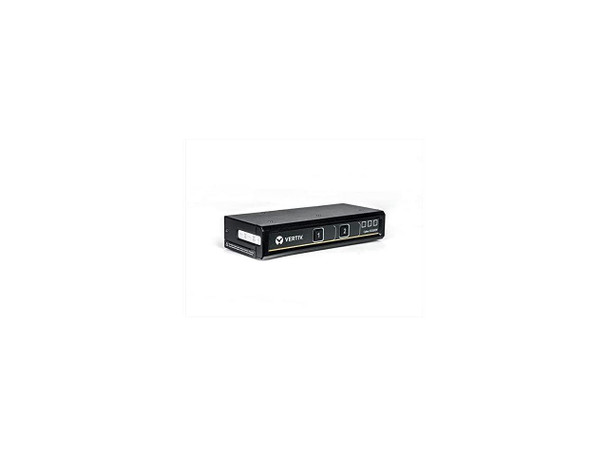

VERTIV Cybex SC820DPH-400 KVM SwitchboxVertiv Cybex SC800 Secure KVM | Single Head | 2 Port Universal DisplayPort | NIAP version 4.0 Certified [SC820DPH-400]
(No reviews yet)
Write a Review
- SKU:
- 18849210
- MPN:
- sc820dph-400
- Availability:
- Usually ships the same or next business day. In stock at our IN warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/16/2026 04:46:06 PM PST
- Stock Update:
- 03/16/2026 04:46:06 PM PST
Description
This item is brand-new, factory sealed.
Vertiv Cybex SC800 Secure Desktop KVM, Single Head Monitor, 2 Port, Universal DisplayPort, NIAP Version 4.0 Certified, TAA Compliant, Common Criteria PP3.0, Secure Keyboard Indicator (SC820DPH-400)- Certified to National Information Assurance Partnership (NIAP) Protection Profile V4.0.
- Isolated ports provide discrete processing paths, preventing data leakage between adjacent ports.
- Provides unique, customizable indicators that improve situational awareness of active channels.
- Tamper-evident holographic labels visibly indicate any compromised hardware.
- Gain true image reproduction and display flexibility.
- Brand: Avocent
- Series: Cybex SC800
- Item model number: SC820DPH-400
- Item Weight: 1 pounds
- Product Dimensions: 7 x 2.4 x 1.7 inches
- Item Dimensions LxWxH: 7 x 2.4 x 1.7 inches
- Color: USB
- Manufacturer: Vertiv
The Vertiv Cybex SC800 series secure desktop KVM switching portfolio offers a proven solution for guarding against desktop cyber intrusion while working efficiently and with a minimum of clutter. These switches enable users to seamlessly and securely switch between multiple computer resources at the push of a button. Certified to meet the recently released NIAP Common Criteria Protection Profile for Peripheral Sharing Devices (PSD) ver. 4.0, the Vertiv Cybex KVM switches provide high resolution compatibility up to UHD 4K at 60Hz. The Vertiv Cybex SC800 series models are available in single-head and dual-head two-port, four-port, and eight-port options, with the DPHC models coming with a USB-C connection. With a universal port on every unit, the Vertiv Cybex SC800 can use a combination of DP, HDMI, or VDI-D cables without needing additional adaptors.
Package Contents:
- Cybex SC820DPH Secure Desktop KVM Switch
- Power Supply
Features
Package Contents:
Yes
No
Restriction of Hazardous Substances (RoHS)
United States
- Cybex SC800 Secure Desktop KVM, Single Head Monitor, 2 Port, NIAP V4.0 Certified, TAA Compliant, Common Criteria PP3.0 (SC820DPH-400)
- Power Supply
Certifications & Standards:
NIAP 4.0 Certified
TAA Compliant:
Yes
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Specs
| Power Description | |
| Input Voltage Range | 100VAC-240VAC |
| Input Current | 1.50 A |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 3 lb |
| Height | 1.7" |
| Width | 7" |
| Rack Height | 1U |
| Depth | 2.4" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| USB | Yes |
| Number of DVI Ports | 0 |
| Number of PS/2 Ports | 2 |
| VGA | No |
| Number of USB Ports | 4 |
| Network (RJ-45) | No |
| Number of HDMI Ports | 1 |
| Number of DisplayPorts | 3 |
| DisplayPort | Yes |
| DVI | Yes |
| Number of VGA Ports | 0 |
| HDMI | Yes |
| Management Port | No |
| Number of Network (RJ-45) Ports | 0 |
| PS/2 Port | No |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Graphic Mode | 4K |
| General Information | |
| Brand Name | Vertiv AVOCENT |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The Vertiv Avocent Cybex SC820DPH-400 secure desktop KVM switch provides secure connectivity across multiple resources. It lets users switch between computers with different security levels while preventing data leaks. Designed for security-conscious organizations, the SC820DPH-400 isolates each connected system, enforcing unidirectional data flow to safeguard sensitive information. It supports a maximum resolution of 3840 x 2160 at 60 Hz on a single display, delivering crisp, clear visuals. The two universal video ports (DisplayPort and HDMI) allow easy connection of up to two systems, while a 3.5mm audio jack supports alerts and notifications. Certified to the latest NIAP Common Criteria Protection Profile for Peripheral Sharing Switch (version 4.0), the SC820DPH-400 also features active intrusion detection and tamper-evident labels to alert users of unauthorized access. With a universal power supply and 4K support, it offers both security and performance in a streamlined solution. More from the Manufacturer |
| Product Type | KVM Switchbox |
| Product Name | Cybex SC800 Secure Desktop KVM, Single Head Monitor, 2 Port, NIAP V4.0 Certified, TAA Compliant, Common Criteria PP3.0 (SC820DPH-400) |
| Manufacturer | Vertiv |
| Manufacturer Part Number | SC820DPH-400 |
| Product Model | SC820 |
| Product Series | 800 |
| Product Line | Cybex |
| Packaged Quantity | 1 |
| Technical Information | |
| Number of Remote Users Supported | 0 |
| Number of Computers Supported | 2 |
| KVM Technology | Digital & Analog |
| Maximum Operating Distance | 10 ft |
| Device Type | Secure KVM |
| Features |
|
| Connectivity Technology | Wired |
| Number of Local Users Supported | 1 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
VERTIV Cybex SC820DPH-400 KVM SwitchboxVertiv Cybex SC800 Secure KVM | Single Head | 2 Port Universal DisplayPort | NIAP version 4.0 Certified [SC820DPH-400]
$824.71
