Vertiv Geist Monitored RPDU with Next-Generation IMD | 30A | 120V | 0U Rack | [24] NEMA 5-20R receptacles | NEMA L5-30P Plug | 2.8kW | VP4N30AP
(No reviews yet)
Write a Review
- SKU:
- 21158763
- MPN:
- vp4n30ap
- Availability:
- Usually ships the same or next business day. In stock at our IN warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/17/2026 11:56:19 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $903.57 each 903.57 |
- Stock Update:
- 03/17/2026 11:56:19 PM PST
Description
This item is brand-new, factory sealed.

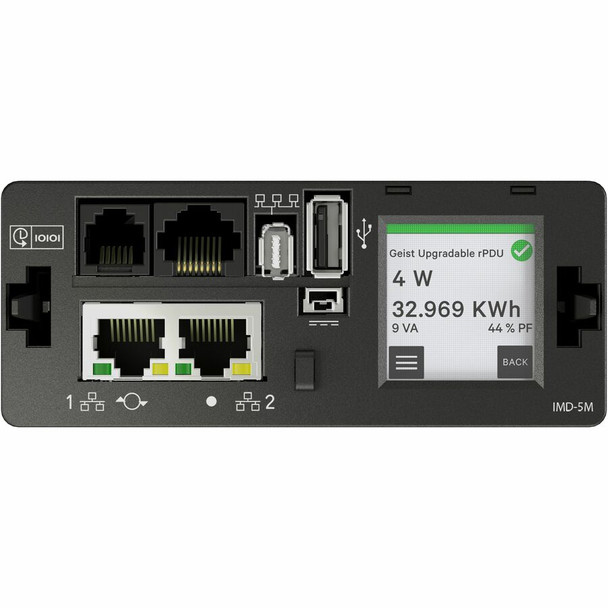

The Vertiv Geist Monitored Rack PDU VP4N30AP is a 30A, 120V, 0U, vertical rack power distribution unit with input power monitoring and breaker-level current monitoring. It has (24) NEMA 5-20R receptacles and an L5-30P plug providing 2.8kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.Features
Certifications & Standards:
UL c-UL Listed 62368
Yes
Yes
United States
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Specs
| Power Description | |
| Power Rating (Watt) | 2800 W |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Form Factor | Rack |
| Weight (Approximate) | 15 lb |
| Cord Length | 10 ft |
| Length | 2" |
| Mount Type | Rack-mountable |
| Height | 66.3" |
| Mounting Orientation | Vertical |
| Width | 2" |
| Rack Height | 0U |
| Depth | 2" |
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Modem (RJ-11) | No |
| Modem (RJ-22) | No |
| Modem (RJ-12) | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Serial Port | Yes |
| General Information | |
| Brand Name | Vertiv Geist |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The Vertiv Geist Monitored Rack PDU VP4N30AP is a 30A, 120V, 0U, vertical rack power distribution unit with input power monitoring and breaker-level current monitoring. It has (24) NEMA 5-20R receptacles and an L5-30P plug providing 2.8kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability. More from the Manufacturer |
| Product Type | PDU |
| Product Name | Monitored VP4N30AP PDU |
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP4N30AP |
| Product Series | N |
| Product Line | Geist Upgradeable |
| Technical Information | |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 24 x NEMA 5-20R |
| Plug/Connector Type | NEMA L5-30P |
| PDU Type | Monitored |
| Features |
|
| Management | |
| Remote Outlet Switching | No |
| Management | <li>DHCP </li><li>HTTP </li><li>HTTPS </li><li>IPv4 </li><li>IPv6 </li><li>LDAP </li><li>NTP </li><li>RADIUS </li><li>RSTP </li><li>SSH </li><li>SMTP </li><li>SNMP (v1/v2c/v3) </li><li>Syslog </li><li>TACACS+</li> |
