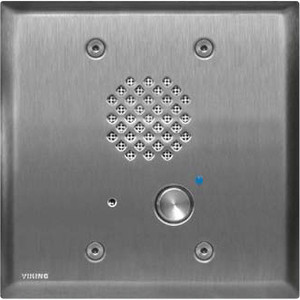

Viking Electronics E-60-SS-EWP Telephone Entry System (E60SSEWP)
(No reviews yet)
Write a Review
- SKU:
- 18124797
- MPN:
- e-60-ss-ewp
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/10/2026 08:19:28 PM PST
- Stock Update:
- 03/10/2026 08:19:28 PM PST
Description
This item is brand-new, factory sealed.
Package Contents:
- Compact size: Front panel is the size of a typical double gang mid- size wall plate
- Mounting: Flush mounts in a double gang electrical box (2.25" deep x 3.7" wide x 2.84" tall minimum) or surface mounts in a Viking model VE-5x5 (not included, see DOD# 424)
- PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes
- Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, self draining mic mount and UV stable weather resistant powder coating (excluding E-60-SS Stainless Steel faceplate)
- Optional Enhanced Weather Protection (EWP) available
- Vandal Resistant Features: 16 gauge polished brass or 18 gauge stainless steel faceplate, stainless steel push button, stainless steel speaker screen, scratch resistant powder coating, hex drive mounting screws
- Blue LED helps locate the push button, indicate ringing and off-hook
- Telephone line powered
- Microphone and speaker volume controls
- Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Selectable auto answer feature for monitoring
- Programmable VOX (mic/speaker) switching speed
- Operating temperature: -34° C to 65° C (-30° F to 150° F)
- Humidity: standard model: 5% to 95% non-condensing humidity, EWP model: up to 100% humidity
- Speaker volume: approximately 62db maximum @ 1m
- CPC disconnect time: 300ms minimum
Features
Package Contents:
- Compact size: Front panel is the size of a typical double gang mid- size wall plate
- Mounting: Flush mounts in a double gang electrical box (2.25" deep x 3.7" wide x 2.84" tall minimum) or surface mounts in a Viking model VE-5x5 (not included, see DOD# 424)
- PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes
- Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, self draining mic mount and UV stable weather resistant powder coating (excluding E-60-SS Stainless Steel faceplate)
- Optional Enhanced Weather Protection (EWP) available
- Vandal Resistant Features: 16 gauge polished brass or 18 gauge stainless steel faceplate, stainless steel push button, stainless steel speaker screen, scratch resistant powder coating, hex drive mounting screws
- Blue LED helps locate the push button, indicate ringing and off-hook
- Telephone line powered
- Microphone and speaker volume controls
- Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Selectable auto answer feature for monitoring
- Programmable VOX (mic/speaker) switching speed
- Operating temperature: -34° C to 65° C (-30° F to 150° F)
- Humidity: standard model: 5% to 95% non-condensing humidity, EWP model: up to 100% humidity
- Speaker volume: approximately 62db maximum @ 1m
- CPC disconnect time: 300ms minimum
Specs
| Physical Characteristics | |
| Product Material | Stainless Steel |
| Height | 2.8" |
| Width | 1.8" |
| Depth | 1.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Viking Electronics |
| Manufacturer Website Address | http://www.vikingelectronics.com |
| Marketing Information | The E-60 Series entry phones are compact, weather and vandal resistant, telephone line powered speaker phones designed to provide two-way handsfree communication. The E-60's compact size allows it to be mounted in a standard double gang electrical box. The E-60 is available in five different attractive finishes to match your door hardware, light fixtures, etc. Replacement E-60 faceplates (PNL60) can be purchased separately and are available in all five standard finishes. The E-60's blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming ring. |
| Product Type | Intercom Sub Station |
| Product Name | E-60-SS-EWP Telephone Entry System |
| Manufacturer | Viking Electronics, Inc |
| Manufacturer Part Number | E60SSEWP |
| Product Model | E-60-SS-EWP |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Viking Electronics E-60-SS-EWP Telephone Entry System (E60SSEWP)
$348.82
