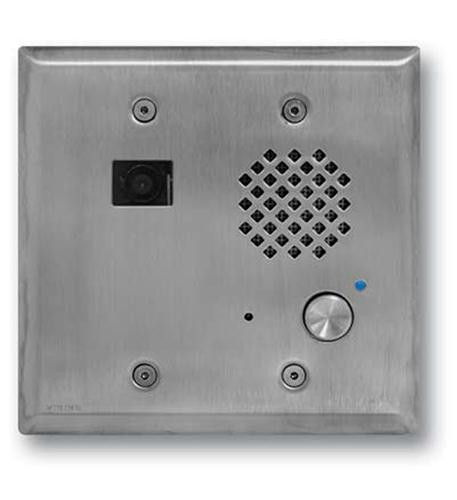

Viking Electronics E-65-ss-ewp Intercom Sub Station (e-65-ss-ewp)

(No reviews yet) Write a Review
SKU:
18284899
MPN:
e-65-ss-ewp
Availability:
Out of stock
Stock Update:
10/23/2023 10:01:59 AM PST
  • Main
  • Large

Out of stock

Stock Update:
10/23/2023 10:01:59 AM PST

Description

This item is brand-new, factory sealed.

  • Built-in high resolution color video camera with wide viewing, tilt/swivel adjustment, and wide operating temperature of -30F to 150F
  • Audio and video transmission on one CAT5E cable
  • Compact size: front panel is the size of a typical double gang midsize wall plate
  • Mounting: flush mounts in a double gang electrical box (2.25" deep x 3.65" wide x 2.84" tall minimum) or surface mounts in a Viking model VE-5x5 (not included, see DOD# 424) for mounting to a wall, post or VE-GNP Gooseneck Pedestal (EWP recommended)
  • Available in 5 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Polished Brass, Satin Black and Satin White
  • PNL-65 faceplates: replacement faceplates with matching screws available in all five standard finishes
  • Vandal Resistant Features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate, 316 stainless steel button, stainless steel speaker scree, scratch resistant powder coating, impact and scratch resistant camera lens, hex drive mounting screws
  • Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, sealed camera lens, potted camera circuit board, stainless steel phone and camera mounting hardware and UV stable weather resistant powder coating (excludes (E-65-SS)
  • E-65-EWP is designed to meet IP66 Ingress Protection Rating (see DOD# 859)
  • Blue LED helps locate the push button, indicate ringing and off-hook
  • Telephone line powered
  • Microphone and speaker volume controls
  • Programmable intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out

    Package Contents:
    • E-65-SS-EWP Intercom Sub Station
    • Adapter
    • Ring Terminal
    • Ring Connector
    • Butt Connectors
    • Mounting Plate
    • Faceplate Gasket
    • Flathead Screws
    • Faceplate
    • LED Light Pipe

    Features

    Package Contents:
    • E-65-SS-EWP Intercom Sub Station
    • Adapter
    • Ring Terminal
    • Ring Connector
    • Butt Connectors
    • Mounting Plate
    • Faceplate Gasket
    • Flathead Screws
    • Faceplate
    • LED Light Pipe



    Additional Information:
    • Built-in high resolution color video camera with wide viewing, tilt/swivel adjustments, and wide operating temperature of -30° F to 150° F
    • Audio and video transmission on one CAT5E cable
    • Compact size: Front panel is the size of a typical double gang mid- size wall plate
    • Blue LED helps locate the push button, indicate ringing and off-hook
    • Telephone line powered
    • Microphone and speaker volume controls



    Specs

    Physical Characteristics
    Product ColorBrushed Stainless Steel
    Warranty
    Limited Warranty2 Year
    General Information
    Brand NameViking Electronics
    Manufacturer Website Addresshttp://www.vikingelectronics.com
    Marketing InformationThe E-65 Series Video Entry phones are compact, weather and vandal resistant speaker phones designed to provide two-way handsfree audio communication and color composite video of who is at your door or gate.
    Product TypeIntercom Sub Station
    Product NameE-65-SS-EWP Intercom Sub Station
    ManufacturerViking Electronics, Inc
    Manufacturer Part NumberE65SSEWP
    Product ModelE-65-SS-EWP
    Product SeriesE-65
