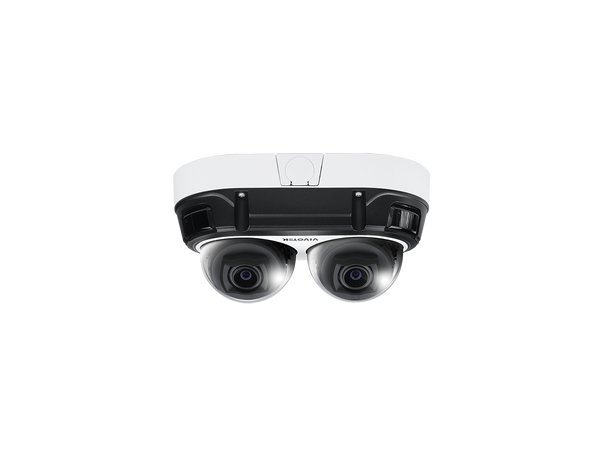

Vivotek 301594 Cm Ma9312-ehtv 8mp Camera V-series 8mpx2 4.3-9.8mm Ai Retail

This item is brand-new, factory sealed.

MA9312-EHTV

4K x 2CH Dual-Directional Panoramic AI Camera

30 fps @ 3840x2160 per channel

IP66/67, IK10, NEMA 4X-rated Protection

AI-powered Smart Motion Detection and Smart VCA

Signed Firmware, Secure Boot and TPM

Built-in IR illuminators, effective up to 20 meters


Benefits

One camera, one IP, one installation, one license

A single installation provides complete coverage while reducing deployment complexity. Additionally, with a reduced number of cameras, licenses and maintenance cost will be cut down as well.

Exceptional clarity in any lighting condition

The V-series Dual-Directional Panoramic AI Camera features with 1/1.8" Progressive CMOS sensor, 20m IR distance, and WDR technology, ensuring sharp, clear visuals with minimal noise in low-light and high-contrast conditionsperfect for 24/7 panoramic surveillance.

Sharper vision with P-Iris

The Dual-Directional Panoramic AI Camera features advanced P-Iris technology, ensuring precise aperture control for sharper images, enhanced clarity, and improved depth of field. This ensures consistent, high-quality performance in varying lighting conditions, making it ideal for detailed and reliable surveillance across expansive areas.

AI detection for accurate alarm

VIVOTEK Smart VCA offers precise object and attribute tracking, providing detailed video analytics for targeted monitoring and quick searches.

Dual-Lens efficiency: perfect for two-way monitoring

The Dual-Directional Panoramic AI Camera delivers comprehensive coverage with its wide field of view, eliminating blind spots and reducing the need for multiple cameras.System Information
CPU
Multimedia SoC (System-on-Chip)
Flash
8GB
RAM
4GBCamera Specifications
Image Sensor
1/1.8" Progressive CMOS
Max. Resolution
3840x2160 (4K/8MP) x 2
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f is 4.3 to 9.8mm
Aperture
F1.6 to F2.6
Iris Type
P-iris
Field of View
110.4^o to 45.1^o (Horizontal)
57.9^o to 25.4^o (Vertical)
133.9^o to 51.8^o (Diagonal)
Shutter Time
1/30 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut filter
Yes
Illuminators
Built-in IR illuminators up to 20 meters with Smart IR, IR LED x 4
Minimum Illumination
0.02 lux at F1.6 (Color)
0.005 lux at F1.6 (B/W)
0 lux with IR illumination on
Pan Range
350^o each lens
Tilt Range
80^o each lens
Rotation Range
350^o each lens
Pan/Tilt/Zoom Functionalities
ePTZ:
48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card (1T capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom, Micro USB^note , pixel calculator
Note: Requires Wi-Fi dongle and Micro B converterVideo
Compression
H.265, H.264, MJPEG
Maximum Frame Rate
H.265 and H.264: 30 fps at (3840x2160) x 2
MJPEG: 15 fps at (3840x2160) x 2
Maximum Streams
3 streams each channel, (up to total 14 profiles)
S/N Ratio
70 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constrained bit rate control, Smart Stream III
Image Settings
General settings
video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators
illuminators, anti-overexposure, VCA-based Smart IR III
Image settings
white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto, deblur)
Exposure
BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Focus
zoom, focus
Privacy mask (Color, Mosaic)
Pixel calculator
Scheduled profile settingsAudio
Audio Capability
Two-way audio (Full duplex) ^note
Note: Requires AO-015 cable
Compression
G.711, G.726, MPEG-2 AAC-LC
Interface
Built-in microphone
External microphone Input^note
External line output^note
Note: Requires AO-015 cable
Effective Range
5 metersNetwork
Users
Live viewing for up to 20 clients
Security
Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management, certificate management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM)
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface
10 Base-T/100 BaseTX/1000 Base-T Ethernet (RJ-45)
Note: It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T ,M supported, specification available at www.onvif.orgAI Analytics
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection
People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
Attribute Extraction
People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
Human face Bestshot, Re-Search Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart VCA - Group 1
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
Smart VCA - Group 2
Unattended object detection, Missing object detection, Crowd detection
Application available with license
Smart VCA - Group 3
Running detection, Parking Violation Detection, Restricted Zone Detection
Note: Support for more analytic applications and free trial,please visit VIVOTEK website.
RealSight Engine
Smart IR III, Deblur, WDR, White Balance, Exposure ControlSolution Integration
VADP Package
Trend Micro (Default, 3-year free trial)
Video Motion Detection
Motion Detection (Five-window video motion detection)Alarm and Event
Event Trigger
Audio detection^note, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input^note, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Note: Requires AO-015 cable
Event Action
Event notification via audio clip^note, camera link, digital output^note, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Note: Requires AO-015 cableGeneral
Connectors
RJ-45 cable connector for 10/100/1000 Mbps Network/PoE connection
Audio line input^note
Audio line output^note
Digital input: 1^note
Digital output: (DO+: 12V, 50mA, DO-: 30V, Open Drain, 1A) ^note
Note: Requires AO-015 cable
LED Indicator
System power and status indicator
Power Input
IEEE 802.3 at PoE Class 4
Power Consumption
Max 25.5W /19.8W (IR on/off)
Certifications
EMC
CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7
Safety
UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471)
Environment
NEMA (NEMA 250 Type 4X) , IK10 (IEC 60529), IP66 / IP67 (IEC 60529)
IA
BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Operating Temperature
Starting Temperature:
-30^oC to 55^oC (-22^oF to 131^oF)
Working Temperature:
-40^oC to 55^oC (-40^oF to 131^oF) (IR off)
-40C to 50^oC (-40F to 122^oF) (IR on)
Humidity
98% RH (non-condensing)System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 11
Other Players
VLC: 1.1.11 or aboveIncluded Accessories
Packing Contents
Quick installation guide, alignment sticker, L-shaped wrench, screws pack,sunshieldDORI (EN 62676-4 Standard)
Detection (25PPM/ 8PPF)
Wide: 88.1 m (289.2 ft)
Tele: 197.6 m (648.2 ft)
Observation (63PPM/ 19PPF)
Wide: 35.0 m (114.9 ft)
Tele: 77.9 m (255.7 ft)
Recognition (125PPM/ 38PPF)
Wide: 17.5 m (57.4 ft)
Tele: 39.0 m (127.8 ft)
Identification (250PPM/ 76PPF)
Wide: 8.7 m (28.6 ft)
Tele: 19.5 m (63.9 ft)Item Dimension (L inchxW inchxH inch)
11 x 5 x 4

Weight
6.00lb

Warranty Information
5 years
