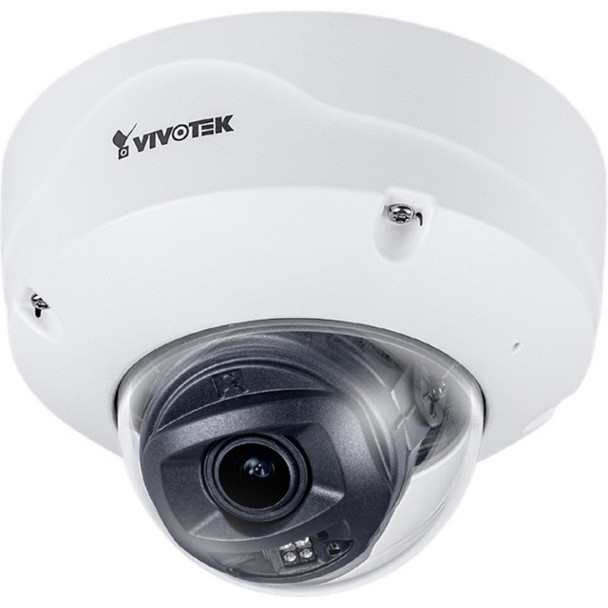

Vivotek FD9367-EHTV-v2 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - TAA Compliant (286946)

This item is brand-new, factory sealed.

FD9367-EHTV-V2
2MP Outdoor Fixed Dome AI Camera
Supreme Night Visibility for Low Light Scene
WDR Pro for Unparalleled Visibility
Built-in IRs up to 50M with Smart IR II
AI-powered Smart Motion Detection and Smart VCA
Cyber Protection via Trend Micro IoT Security
Benefits
Installation-friendly, Budget-friendly
A brand new Installation-friendly mechanical design has made installation easier and more hassle-free than ever. The cameras modular design means that it can be installed in only 3 simple steps, saving in both time and expense and allowing the user to focus attention on service and upgrades. Featuring wireless access via the supported proprietary Wi-Fi dongle, the view angle can be easily adjusted during installation. Making the camera even more versatile, it can operate without the need for heaters at a range of temperatures between -40 ^oC to 60 ^oC (-40 ^oF to 140 ^oF) and thus is more energy efficient in all conditions.
Make Your Surveillance Easier and Smarter
VIVOTEK took advantage of its extensive experience in the surveillance field and vast image databases to develop an AI-powered detection engine for people forms. Based on a people silhouette database and rapid responses via a pre-trained deep learning model, the smart engine instantly recognizes the appearance of people forms in the video surveillance area which helps greatly reduce false alarms comparing to the conventional motion detection.System Information
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
1 GBCamera Specifications
Image Sensor
1/2.8" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f equal 2.7 - 13.5 mm
Aperture
F1.4 - 2.8
Iris Type
P-iris
Field of View
110^o - 33^o (Horizontal)
55^o - 18^o (Vertical)
126^o - 37^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut filter
Yes
Illuminators
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LEDx4 (50IRE)
Minimum Illumination
0.035 lux at F1.4 (Color)(30IRE)
0.080 lux at F1.4 (Color)(50IRE)
<0.005 lux at F1.4 (B/W)
0 lux with IR illumination on
Pan Range
+/-175^o
Tilt Range
80^o
Rotation Range
+/-175^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDKC card (1TB Capacity Supported) and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom, Micro USB, pixel calculator
Requires Wi-Fi dongle and Micro B converterVideo
Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps at 1920x1080 (WDR Pro on)
60 fps at 1920x1080 (WDR Pro off)
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
53 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings
video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators
illuminators, anti-overexposure
Image settings
white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)
Exposure
BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Focus
zoom, focus
Privacy mask
Pixel calculator
Scheduled profile settingsAudio
Audio Capability
Two-way audio (Full duplex)
Compression
G.711, G.726, MPEG-2 AAC-LC
Interface
Built-in microphone
External microphone Input
External line output
Effective Range
5 metersNetwork
Users
Live viewing for up to 10 clients
Security
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.orgAI Analytics
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection
People, Vehicle (4-wheeled), Human / Vehicle Bestshot, Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart VCA - Group 1
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
Smart VCA - Group 2
Unattended object detection, Missing object detection, Crowd detection
Application available with license
Smart VCA - Group 3
Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial,please visit VIVOTEK websiteSolution Integration
VADP Package
Stratocast, Trend Micro IoT Security (3-year free trial)
Video Motion Detection
Motion Detection (Five-window video motion detection)Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD cardGeneral
Connectors
Default I/O RJ-45 cable connector for 10/100 Mbps PoE network connection Audio line input Audio line output DC 12V power input Digital input Digital output DO+
12V, 50mA
DO-
30V, Open Drain, 1A)
Micro USB
Module I/O
Digital input
Digital output DO+: 12V, 50mA
DO-
30V, Open Drain, 1A)
AC 24V power input
Requires extension I/O module kit
LED Indicator
System power and status indicator
Power Input
AC 24V/DC 12V, IEEE 802.3af PoE Class 0 (Power Redundancy)
Requires extension I/O module kit
Power Consumption
PoE: Max. 9/6 W (IR on/off)
DC 12V: Max. 9/6 W (IR on/off)
AC 24V: Max. 9/6 W (IR on/off)
Requires extension I/O module kit
Certifications
EMC
CE (EN 55032 Class A, EN 55035, EN 50121-4), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7
Safety
UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment
IK10 (IEC 62262), IP66/67 (IEC 60529), NEMA (NEMA 250 Type 4X), IEC 60068-2-11
IA
BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature
Starting Temperature:
-30^oC - 50^oC (-22^oF - 122^oF)
Working Temperature:
-40^oC - 60^oC (-40^oF - 140^oF) (IR off)
-40^oC - 50^oC (-40^oF - 122^oF) (IR on)
Humidity
98% RH (non-condensing)System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 11
Other Players
VLC: 1.1.11 or aboveIncluded Accessories
Packing Contents
Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, conduit bracket, I/O cableDORI (EN 62676-4 Standard)
Detection (25PPM/ 8PPF)
Wide: 46.2 m (151.57 ft)
Tele: 135.6 m (444.88 ft)
Observation (63PPM/ 19PPF)
Wide: 18.3 m (60.04 ft)
Tele: 53.8 m (176.51 ft)
Recognition (125PPM/ 38PPF)
Wide: 9.2 m (30.18 ft)
Tele: 27.1 m (88.91 ft)
Identification (250PPM/ 76PPF)
Wide: 4.6 m (15.09 ft)
Tele: 13.6 m (44.62 ft)Item Dimension (L"xW"xH")
12 x 9 x 8

Weight
7 lbs

Warranty Information
3-Year
