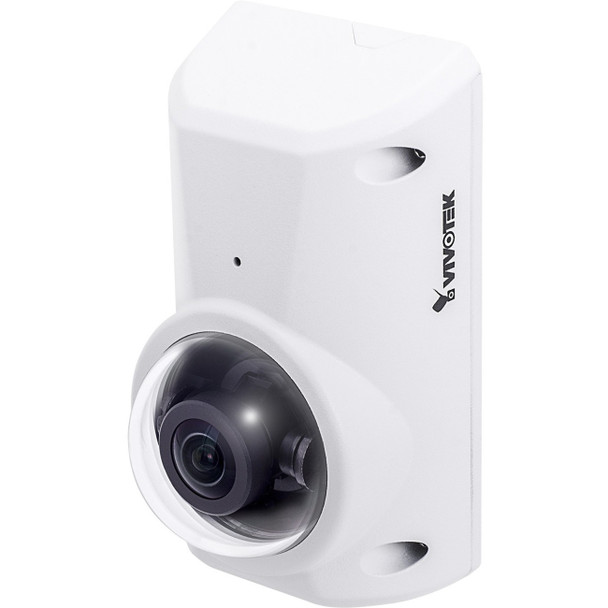

Vivotek CC9380-HV 5 Megapixel Network Camera - Fisheye - TAA Compliant

This item is brand-new, factory sealed.

CC9380-HV

5MP, H.265, 30fps, WDR Pro, SNV, IP66, IK10


VIVOTEKs CC9380-HV is an update on the widely popular CC8370-HV, now available in 5MP with H.265 compression.



The CC9380-HV is a true day/night camera, with a removable IR-cut filter. Through the use of a single fisheye lens set to a 180 panoramic view, the seemless image provides a very large vertical field of view. This allows for amazing close range surveillance coverage in a low profile design.



To meet the demands of any harsh outdoor application, the CC9380-HV is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides robust protection against acts of vandalism. In addition the CC9380-HV continues the trend of its predecessor CC8370-HV and has an anti-ligature housing, to reduce chances of suicide and/or self inflicted harm.System Information
Model
CC9380-HV
CPU
Multimedia SoC (System-on-Chip)
Flash
256 MB
RAM
512 MBCamera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Fixed-focal
Focal Length
f equals 1.45 mm
Aperture
F2.2
Iris Type
Fixed iris
Field of View
180^o (Horizontal)
120^o (Vertical)
180^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
Minimum Illumination
0.11 lux at F2.2 (Color)
0.01 lux at F2.2 (B/W)
Tilt Range
+/-25^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
H.265:
20 fps/30 fps at 2560x1920 (WDR Pro on/off) :
H.264: :
20 fps/25 fps at 2560x1920 (WDR Pro on/off) :
MJPEG: :
20 fps/20 fps at 2560x1920 (WDR Pro on/off)
Maximum Streams:

3 video streams (Up to 8 configurable profiles)
S/N Ratio
62 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bitrate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur), Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR, Privacy mask: Scheduled profile settingsAudio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 metersNetwork
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 BaseTX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.orgSolution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security (1-year free trial), VIVOCloudAlarm and Event
Event Trigger
Audio detection, Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD cardGeneral
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 1
Power Consumption
Max. 5W
Certifications
EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), VCCI (VCCI-CISPR 32 Class B). Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950- 22, IEC/EN 62471). Environment: IK10 (IEC 62262), IP66 (IEC 60529). IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC to50^oC (14^oF to 122^oF) Working Temperature: -30^oC to 50^oC (-22^oF to 122^oF)
Humidity
90%System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or aboveIncluded Accessories
Packing Contents
Quick installation guide, mounting bracket, screw packItem Dimension (L inchxW inchxH inch)
6 x 6 x 5

Weight
2 lbs

Warranty Information
2-year
