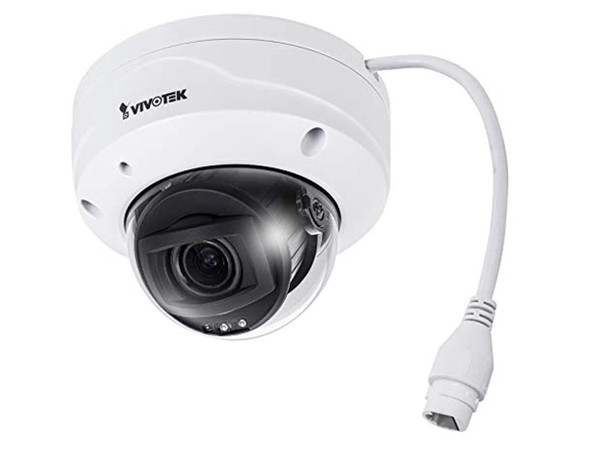

Vivotek FD9388-HTV 5 Megapixel Outdoor HD Network Camera - Dome - TAA Compliant

This item is brand-new, factory sealed.

FD9388-HTV


VIVOTEKs FD9388-HTV is a H.265 outdoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9388-HTV is capable of capturing high-quality imagery in both high contrast and low light environments.



The FD9388-HTV deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the FD9388-HTV is encased in IP66 and IK10 housing.



By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9388-HTV is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

* Depending on scenesSystem Information
Model
FD9388-HTV
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
512 MBCamera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f equals 2.8 to 12 mm
Aperture
F1.4 to F2.8
Iris Type
Fixed iris
Field of View
90^o to 30^o (Horizontal)
65^o to 23^o (Vertical)
115^o to 38^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LEDx2
Minimum Illumination
0.035 lux at F1.4 (Color)
< 0.005 lux at F1.4 (B/W)
0 lux with IR Illuminators on
Pan Range
353^o
Tilt Range
75^o
Rotation Range
350^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) Built-in Installation Aids
Remote focus, remote zoomVideo

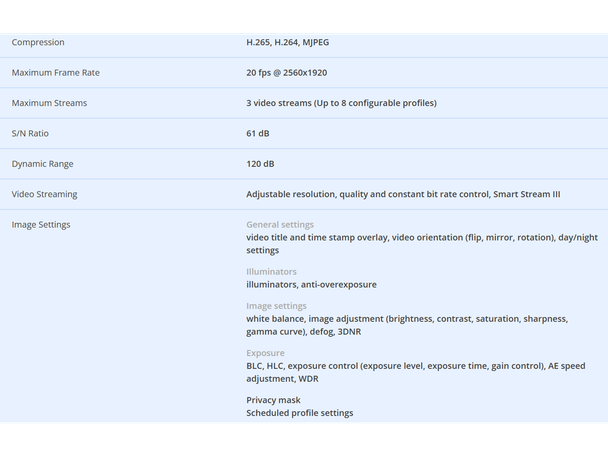

Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
20 fps at 2560x1920
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
61 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings. Illuminators: illuminators, anti-overexposure. Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR. Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR. Privacy mask. Scheduled profile settingsAudio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 metersNetwork
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.orgSolution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security (1-year free trial), VIVOCloudAlarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD cardGeneral
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
Max. 12.95 W/9 W (IR on/off)
Certifications
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment: IK10 (IEC 62262), IP66 (IEC 60529) IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC to 60^oC (14^oF to 140^oF) Working Temperature: -30^oC to 60^oC (-22^oF to 140^oF)
Humidity
90%System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or aboveIncluded Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable glandItem Dimension (L inchxW inchxH inch)
8 x 7 x 6

Weight
3 lbs

Warranty Information
2-year

Package Contents:

• Fixed Dome Network Camera
• Quick Installation Guide
• Alignment Sticker
• Screw Pack
• Cable Gland
