Xantrex

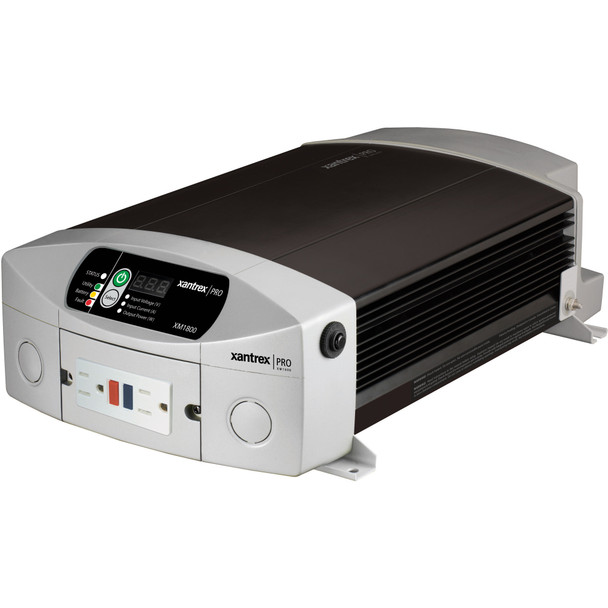

Xantrex XM 1800 DC-to AC Power Inverter (3931172)

(No reviews yet) Write a Review
SKU:
18030609
MPN:
3931172
Availability:
Usually ships the same or next business day. In stock at our NJ warehouse.
Shipping:
Calculated at Checkout
Stock Update:
12/08/2025 07:24:30 PM PST
$545.78
Stock Update:
12/08/2025 07:24:30 PM PST

Description

This item is brand-new, factory sealed.

The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available.

Both 1000 and 1800W models are designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions.

Performance Features

  • 1000/1800W inverter easily powers TVs, small appliances, and other electronics
  • Built-in 15A circuit breaker to protect GFCI connected loads
  • Up to 25A pass through for hardwired loads
  • Digital remote control displays power output, AC source and battery voltage
  • Detachable remote control can be mounted wherever convenient
  • Conformal coated electronics provide moisture resistance
  • Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included)

Protection Features

  • Battery over-voltage and under-voltage protection
  • Over temperature shutdown
  • Automatic overload protection
  • Short-circuit protection
  • Ground fault protection
Specifications
Electrical Specifications
Models   XM1000   XM1800
Maximum continuous power 1000 W 1800 W
Surge rating 2000 W 3600 W
Output current (continuous) 8.3 A 15 A
Output voltage (at no load) 115 V +/- 10 V 115 V +/- 10 V
Output frequency 60 Hz +/- 1 Hz 60 Hz +/- 1Hz
Output waveform Modified sine wave Modified sine wave
Peak efficiency 88% 88%
No load power draw < 6 W < 6 W
Power draw in standby mode < 2 W < 2 W
Input operating voltage range 11.0-15.5 VDC 11.0-15.5 VDC
Transfer relay rating 25 A 25 A
Transfer time <35 milliseconds <35 milliseconds
  General Specifications
Operating temperature range 0°C - 40°C 0°C - 40°C
Storage temperature range -20°C - 60°C -20°C - 60°C
AC receptacles 2 2
Recommended DC fuse 150 A 250 A
Dimensions (H x W x D) 4 x 8.3 x 13" (103 x 211 x 329mm) 4 x 8.3 x 15.5" (103 x 211 x 393mm)
Weight (lbs) 7.5 9.5
Part numbers 806-1010 806-1810
Warranty 1 year 1 year
  Regulatory Approval
FCC Class ?B?, UL 458
Note: Specifications subject to change without notice.

Features

System Requirements:

Automobile Battery Connection




Specs

Power Description
Maximum Frequency60 Hz
Continuous Power Load1800 W
Input Voltage Range11 V DC - 15.5 V DC
Input Voltage12 V DC
Peak Power Load3600 W
Output Voltage120 V AC
Waveform TypeModified Sine Wave
Physical Characteristics
Weight (Approximate)9.50 lb
Height4.1"
Width8.3"
Depth15.5"
Warranty
Limited Warranty1 Year
General Information
Brand NameXantrex
Manufacturer Website Addresshttp://www.xantrex.com
Marketing InformationThe Xantrex PRO Series Power Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. ?The PRO Series design is both user friendly and versatile. These power inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available.
Product TypePower Inverter
Product NameXM 1800 DC-to AC Power Inverter
ManufacturerXantrex Technology
Manufacturer Part Number806-1810
Product ModelXM 1800
Product SeriesPRO
Technical Information
Plug/Connector TypeTerminal Block
Receptacles2 x AC Out
