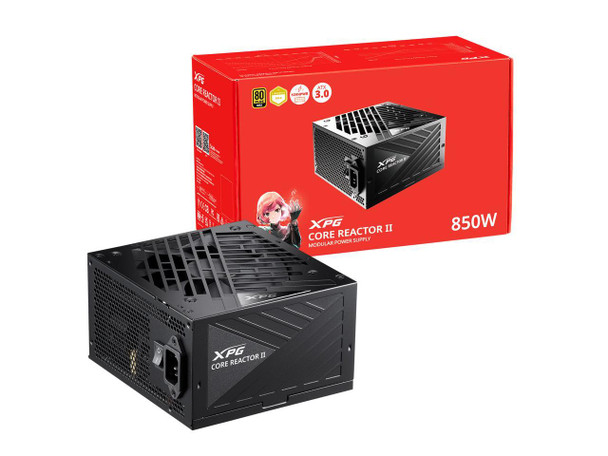

XPG COREREACTORII850GBKCUS 850W Power Supply

This item is brand-new, factory sealed.

CORE REACTOR II

IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE

CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.


Next-Gen Ready - ATX 3.0 COMPLIANT

CORE REACTOR II series power supply units meet Intel ATX 3.0 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 PSU, the new standard in PC hardware.


Certified GOLD Efficiency

CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.


Intelligent Fan-Curve Design

The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.


Premium 105C Japanese Capacitors

CORE REACTOR II features top-tier 105C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.80 Plus Rating
GOLD

ATX Version
ATX 12V v3.0 and EPS v2.92

Protections
OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP

Certification
CE, CB FCC(IC), TUV, cTUVus, TUV S-Mark, NOM, BSMI, UKCA, EAC, CCC, RCM

PFC
> 0.99

Input Voltage
100-240VInput Current
850W: 12AInput Frequency
850W: 47Hz-63HzDC Output Voltage
+5V, +3.3V, +12V, -12V, +5VsbTotal Output
850W: +5V/+3.3V: 22A, +12V: 70.8A, -12V: 0.3A, +5Vsb: 3AOperating Temperature
50^oCFan Size
850W: 120mm FDB FanFan Bearing
FDB (Fluid Dynamic Bearing)

Fan Speed
2400 RPM

MTBF
100K hours at full loadATX 24 Pin Connector
850W: 1EPS 8 Pin Connector
850W: 2PCI-E 6+2 Pin Connector
850W: 6Molex 4 Pin Connector
850W: 412VHPWR (12 + 4) Connector
850W: 1SATA Connector
850W: 8Item Dimension (L inchxW inchxH inch)
13 x 9 x 7

Weight
6.83 lbs

Warranty Information
10 Years
