4K Dual View Wireless Media Presentation Switch Gateway - For Meetings & Boardroom Presentation (245470)

This item is brand-new, factory sealed.

Features

Allows sharing laptop, tablet, smart phone wirelessly, easily join meeting room and board room presentations

Supports Dual view on-screen display and up to 16 simultaneous connections. Note: Requires Dual View Wireless Media Presentation Kits (part # CE-H26611-S1) and additional Wireless Media Presentation Transmitter - HDMI Dongle (part # CE-H26711-S1), each sold separately

Supports Whiteboard and Annotation allows documents to be easily written, edited, captured and shared, more productive and effective collaboration

Three different security levels to satisfy different security requirements, according to different security sensitive environments or security policies

Provides two segmented routing options to connect to the base unit simultaneously and separately, including wireless WI-FI network and wired LAN network

Provides nearly zero latency mouse operation on the main screen

Supports VESA PC resolution input with auto-detect

Supports HDMI/USB plug-in auto configuration/pairing for wireless media presentation. Note: Additional Wireless Media Presentation Transmitter - HDMI Dongle (part # CE-H26711-S1) sold separately

Supports remote mouse to control the active source devices from other smart devices

Supports "Airplay" for Apple iPhone or MacBook devices
HDMI standard:
Up to HDMI 2.0
HDCP version:
Up to HDCP 2.2
HDMI output:
1x HDMI 19-pin female connector
Video resolution (output):
3840x2160 at 60Hz, 3840x2160 at 30Hz, 1920x1080 at 60Hz, 1280x720 at 60Hz
Video playback frame rate:
20-60 FPS
Video capacity:
1080P at <60Hz Airplay for IOS devices / app, 1080P at <60Hz "WirelessMedia" app, 1080P at <30Hz for all show-me button
Audio input:
Airplay, DLNA, Windows/MAC, WMH
Analog audio output:
1x 3.5mm PC audio female connectors
Control connectors:
3.5mm Phoenix terminal/ RS232 interface
USB interface:
USB 3.0 x1, USB 2.0 x1, Type-C x1
Number of window simultaneously on screen (max):
2 + 14 (2 main windows + 14 thumbnail windows)
Latency:
<100ms, Min 20ms
Network connectivity:
Wireless data rate: Up to 1200Mbps
Wireless transmission protocol: WIFI IEEE 802.11 a/g/n/ac
Frequency band: 2.4 GHz and 5 GHz
WIFI Antenna: MIMO 2x2
LAN Ethernet port 1: 100Mbps
LAN Ethernet port 2: 1Gbps, with POE
POE standard: IEEE 802.3af
POE standard: IEEE 802.3af
Base unit:
Color: Silver
Housing material: Metal

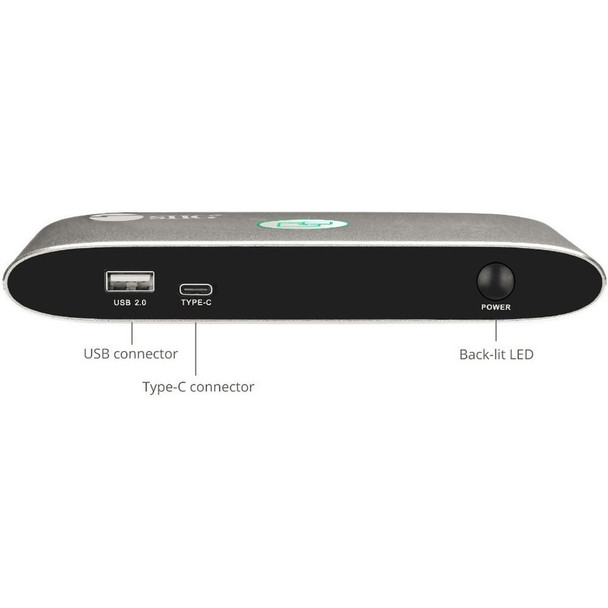

Connectors:
1x USB 2.0 Type-A, Female
1x 24-pin, USB-C , Female
1x Back-lit LED
1x Power Switch
1x 19-pin, HDMI Type-A, Female, Output
1x Line audio output
1x USB 3.0 Type-A, Female
1x Reset button
1x RS232, 3-pin 3.5mm Phoenix terminal
1x 8-pin, RJ45, 100Mbps
1x 8-pin, RJ45, 1000Mbps, support POE
1x DC power jack, 12V/1.5A, UL: E24161885WU, VI
2x Antenna fixture points
USB A/C Dongle:
Color: Golden
Housing material: Metal
Connector:
1x USB 3.0 Type-A, Female
1x USB 3.0 Type-C, Female
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 - 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
3 x 1 x 1
Weight
1.00 LB
Warranty Information
2 Years


Package Contents:

• Dual View Wireless Media Presentation Switch Gateway
• Dual head pen drive (USB A / Type-C)
• 2 x Antenna
• 3-pin RS-232 Terminal block
• Power Adapter (US, UK, EU, AU plug)
• Quick Start Guide
