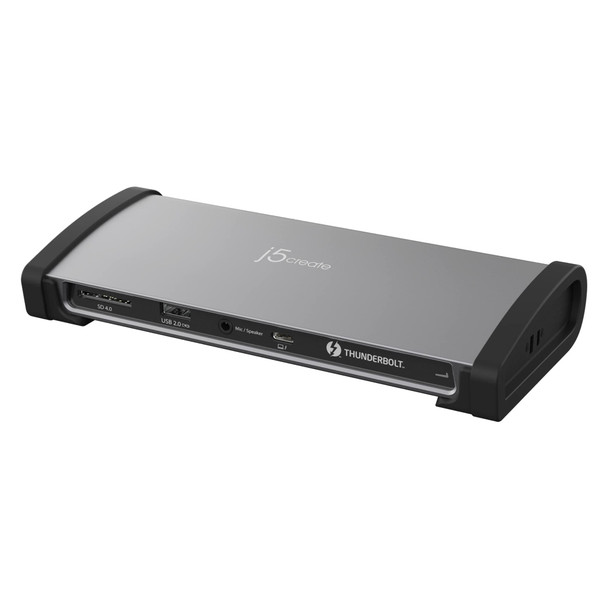

J5Create JTD562 Thunderbolt 4 Docking Station With 8K Or Dual 4K Display

This item is brand-new, factory sealed.

8K Thunderbolt 4 Docking Station

Thunderbolt certified /Single 8K /Dual 4K /11-in-1 Functions

Model: JTD562

This Thunderbolt 4 Docking Station turns your Mac or Windows laptop into a full workstation with three Thunderbolt 4 outputs. Supports resolution up to dual display 4K or one display at 8K. Great for content creators, professionals, and enthusiast that require high resolution displays for the best visual experience.

With 96W Power Delivery, three USB 3.2 ports, and a USB-C port, this docking station is perfect for your MacBook, or Windows laptop that support Thunderbolt 4 allowing you to add high-speed ports to your laptop. This Thunderbolt 4 docking station also has an RJ45 Gigabit Ethernet port, SD 4.0 memory card reader/writer, and combo audio jack for added flexibility.

All 11 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!


11-in-1 Functions

Maximize productivity with 11-in-1 functions

High Quality Video Experience with 8K 60Hz Resolution

Increase Productivity with Dual 6K 60Hz Display

Comes With Two 4K DisplayPort Cables (JCA141)

With refresh rates of 4K 144 Hz and 8K 60 Hz, you can get the most out of your movie and gaming experiences.

Thunderbolt Daisy Chain Support

Equipped with 3 Thunderbolt 4 ports with 40Gbps ultra-high speeds and let you create 3 separate daisy chains.

Extreme Speed of 40Gbps for Maximum Performance

Large files, such as videos or images, can be transferred in seconds.

High-Speed Charging

PD 96W and USB BC1.2 quick-charging capabilities for your laptop and mobile device.

Wide Compatibility

With an Intel Thunderbolt 4 chip specifically designed for MacBook Pro 2021 and Thunderbolt 4 laptops.Hardware
Audio Supported
Yes
Host Connector
1 - Thunderbolt^TM 4 Female
Network Interface
RJ45 (Gigabit Ethernet)
Ports
1 - USB-C Power Delivery 96W (Host)
3 - Thunderbolt^TM 4 USB-C 40Gbps
3 - USB^TM 3.2 Type-A Gen 2 10Gbps
1 - USB^TM 2.0 Type-A with BC1.2 fast charging
1 - SD^TM 4.0 UHS-II 312 MB/s memory card reader/writer
1 - 3.5 mm combo audio jack
1 - RJ45 Gigabit Ethernet
Power Source
Self-powered
Video Output
3 - Thunderbolt^TM 4 FemalePerformance
Audio Channel
3 -Thunderbolt^TM 4 / 3.5 combo audio jack
Compatible Networks
10/100/1000 Base-T, auto-negotiating
Displays Supported
2
Max Data Transfer Rate
40Gbps
Max Display Refresh Rate
60 Hz via Thunderbolt^TM 4
Max Display Resolution
Thunderbolt^TM Mode
2 - 4K at 60 Hz
1 - 4K at 120 Hz (Via DP^TM)
1 - 4K at 144 Hz (with DSC)
1 - 8K at 30 Hz
1 - 8K at 60 Hz (with DSC)
MFDP Mode (Base on HBR3 Host)
1 - 4K at 60 HzPower
Input Current
2.5A
Input Voltage
110V-240V
Output Current
6.75A
Output Voltage
20V
Power Consumption
1.2A
Power Delivery
96WPhysical Specifications
Cable Length
2.3 ft. / 70 cm
Color
Black / Space Grey
Enclosure Type
Aluminum
Operating Humidity
< 85% non-condensing
Operating Temperature
32 to 118^oF (0 to 48^oC)
Storage Humidity
< 85% non-condensing
Storage Temperature
14 to 149^oF (-10 to 65^oC)Package Contents
1 - JTD562 Thunderbolt^TM 4 Docking Station
1 - 135W AC adapter with up to 96W PD charge
1 - Thunderbolt^TM 4 to Thunderbolt^TM 4 Cable (2.3 ft / 70 cm)
2 - USB-C to 4K DisplayPort^TM Cable (JCA141)
1 - Quick Installation Guide (QIG)Item Dimension (L inchxW inchxH inch)
10 x 5 x 4

Weight
2.95lb

Warranty Information
2 Year

Package Contents:

• 8K Thunderbolt 4 Docking Station
• 1 x 135W AC Adapter with up to 96W PD Charge
• 1 x Thunderbolt 4 to Thunderbolt 4 Cable (2.3 ft / 70 cm)
• 2 x USB-C to 4K DisplayPort Cable (JCA141)
• 1 x Quick Installation Guide (QIG)
