ACP 302094 J5create Accessory Jtd568 Thunderbolt 4 Quad Display Docking Station Retail

This item is brand-new, factory sealed.

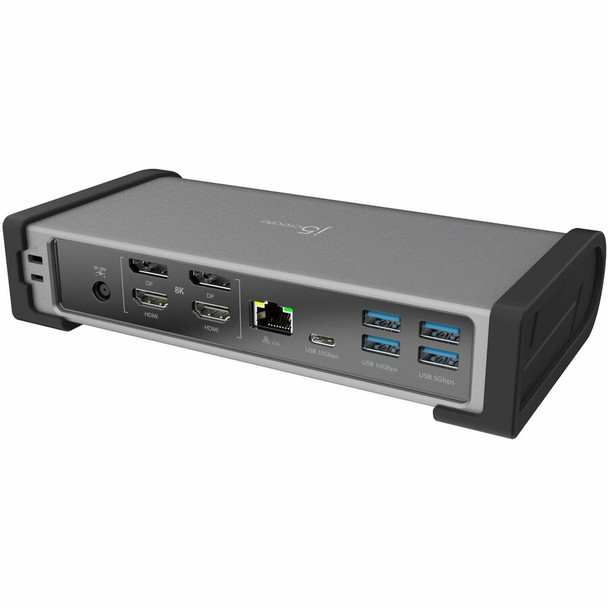

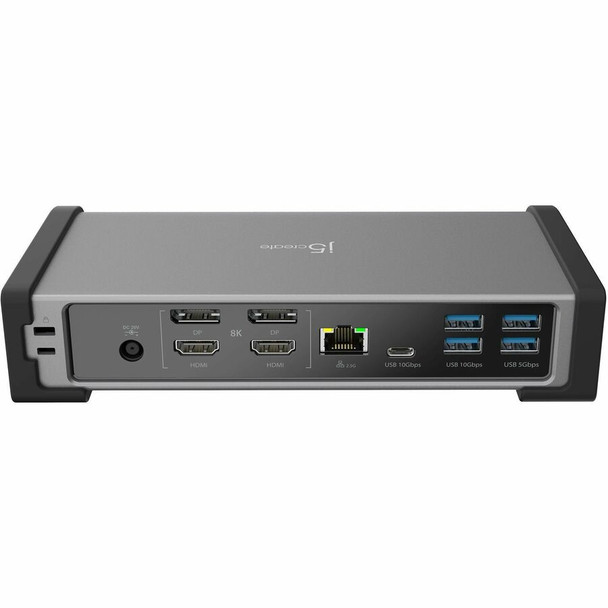

Thunderbolt 4 Quad Display Docking Station

Intel Thunderbolt 4 certified

Model: JTD568

This Thunderbolt 4 Quad display Docking Station turns your Windows laptop or Mac into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB 3.2 ports, and a USB-C 3.2 port, this docking station is perfect for Thunderbolt 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD/microSD 4.0 memory card reader/writer, and combo audio jack for maximum productivity.

All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!


15-in-1 Functions

Providing the ultimate connectivity for Thunderbolt 4 laptops

High Quality Video Experience with 8K 60Hz Resolution

Quadruple Efficiency With Quad 4K60Hz Display

Comes with 2 HDMI and 2 DisplayPort

Provides A Full Range Of Connections

Extreme Speed of 10Gbps for Maximum Performance

Hyper-Fast 2.5 Multi-Gig Ethernet Port

Built-in SD & microSD 4.0 Card Reader

Supports up to UHS-II 312 MB/s transfer speed

High-Speed Charging

PD 98W and USB BC1.2 quick-charging capabilities for your laptop and mobile device

K-Slot Anti-Theft Protection For Business Or Institutional Environments

Wide Compatibility

Perfect for Windows and MacBook laptops that support Thunderbolt 4Hardware
Audio Supported
Yes
Host Connector
1 - Thunderbolt^TM 4 Female (Host)
Network Interface
RJ45 (2.5 Gigabit Ethernet)

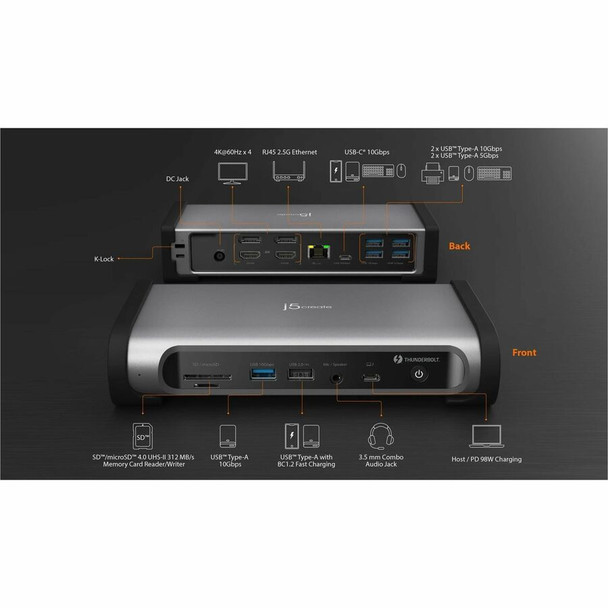

Ports
1 - USB-C Power Delivery 98W (Host)
2 - HDMI^TM 2.1
2 - DisplayPort^TM 1.4
1 - USB-C 10Gbps
3 - USB^TM 3.2 Type-A Gen 2 10Gbps
2 - USB^TM 3.2 Type-A Gen 1 5Gbps
1 - USB^TM 2.0 Type-A with BC1.2 1 - SD^TM/microSD^TM 4.0 UHS-II 312 MB/s memory card reader/writer
1 - 3.5 mm combo audio jack
1 - RJ45 2.5 Gigabit Ethernet
Power Source
Self-powered
Video Output
2- HDMI^TM 2.1
2- DisplayPort^TM 1.4Performance
Audio Channel
3.5 combo audio jack / HDMI^TM / DisplayPort^TM
Compatible Networks
10/100/1000/2500 Base-T, auto-negotiating
Displays Supported
4
Max data Transfer Rate
40Gbps
Max Display Resolution
DP^TM 1.4 with DSC:
Single Display:
-7860 x 4320 at 60 Hz
-5120 x 2880 at 60Hz
-3840 x 2160 at 120 Hz
-2560 x 1440 at 170 Hz
-1920 x 1080 at 240 Hz
Dual Display:
-5120 x 2880 at 60 Hz + 5120 x 2880 at 60 Hz
Triple Display:
-3840 x 2160 at 60Hz + 3840 x 2160 at 60 Hz + 3840 + 3840 x 2160 at 60 Hz
Quad Display:
-3840 x 2160 at 60Hz + 3840 x 2160 at 60 Hz + 3840 at 60 Hz + 3840 x 2160 at 60 HzPower
Ac Current
6.75A
Ac Input
135W
Ac Voltage
20V
Power Delivery
98W (Max)Physical Specifications
Cable Length
Thunderbolt^TM 4 Cable: 2.6 ft / 80 cm
Color
Dark / Space Grey
Enclosure Type
Aluminum
Operating Humidity
< 85% non-condensing
Operating Temperature
32 to 118^oF (0 to 48^oC)
Storage Humidity
< 85% non-condensing
Storage Temperature
14 to 149^oF (-10 to 65^oC)Package Contents
1 - JTD568 Thunderbolt^TM 4 Quad Display Docking Station
1 - 135W AC adapter with up to 96W PD charge
1 - Thunderbolt^TM 4 Cable (2.6 ft / 80 cm)
1 - Quick Installation Guide (QIG)Item Dimension (L inchxW inchxH inch)
10 x 5 x 4

Weight
3.59lb

Warranty Information
2 Year
