ACP 305022 J5create Ac Jcd3199p Usb-c Dock Dual 4k Hdmi Hub W 140w Gan Pd3.1 Poweradapter

This item is brand-new, factory sealed.

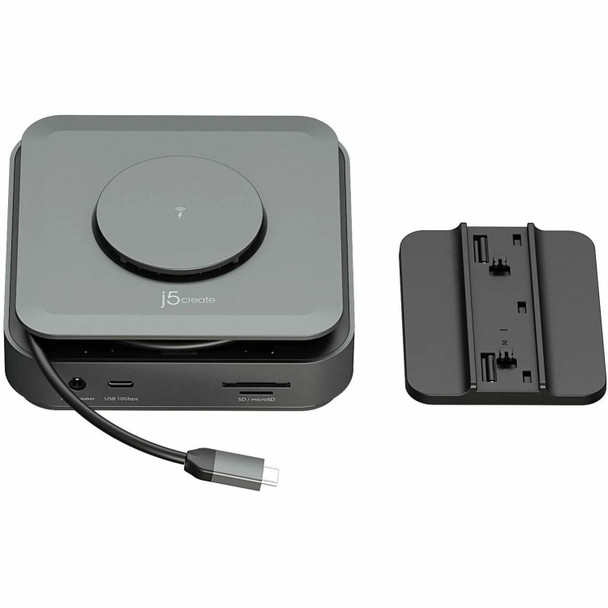

USB-C Dock Dual 4K HDMI with 140W GaN PD 3.1 Power Adapter

140W Power Delivery 3.1 / 15W Wireless charger / Dual 4K HDMI/ Gigabit Ethernet / USB 10Gbps

Windows / macOS Compatible

Model: JCD3199P

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI outputs, USB ports, Gigabit Ethernet, SD/microSD card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook or other USB-C compatible laptops to a 4K monitor or TV.

With USB Power Delivery 3.1 itll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C power adapter even if your laptop only has one USB-C port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C ports location.

Through a single USB-C (Thunderbolt 3, 4, and USB4 compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

Versatile 12-in-1 expansion, excellent companion for office

Easily add dual 4K display, extend your display area and maximize product

Break free from the limitation, effortlessly connect two additional displays to your M1/M2/M3 MacBook or Windows laptop

Integrates a wireless charger compatible with iPhone MagSafe, charge smart devices conveniently with up to 15W power

Exclusive PD 3.1 Power distribution technology ensures optimal PD 3.1 power utilization, even when used with computers supporting only PD 3.0Hardware
Audio Supported
Yes
Host Connector
1 - USB-C Male (PD3.1 100W, 20V/5A)
Network Interface
Yes
Output
Perfect for Google^TM Pixel^TM, iPhone with MagSafe, and AirPods - Provide 15W of wireless charging to a Google^TM Pixel^TM - Provide 7.5W of wireless charging to an iPhone - Provide 5W of wireless charging to AirPods
Ports
1 - USB-C PD-in PD3.1 140W (28V/5A)
2 - USB-C 5Gbps and 10Gbps
2 - USB^TM Type-A 5Gbps and 10Gbps
1 - Combo 3.5mm Audio Jack
1 - HDMI^TM (USB^TM display max resolution 4K at 30Hz)
1 - HDMI^TM (DP^TM-Alt max resolution 4K at 60Hz)
1 - RJ45 Gigabit Ethernet
1 - SD^TM/microSD^TM 3.0
1 - Wireless charger 15W
Power Source
Bus-powered or self-powered
Video Output
2- HDMI^TM FemalePerformance
Audio Channel
2.1 via HDMI^TM
Compatible Networks
10/100/1000 Mbps
Displays Supported
2
Max Data Transfer Rate
10Gbps
Max Display Refresh Rate
60 Hz
Max Display Resolution
3840 x 2160Power
Input Current
Up to 5A
Input Voltage
Up to 28V
Output Current
Up to 5A
Output Voltage
Up to 20V
Power Consumption
is less than or equal to 900 mA
Power Delivery
Up to 140W via USB-CPhysical Specifications
Cable Length
2.28 ft (69.5 cm)
Color
Space Grey
Enclosure Type
Plastic
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116^oF (-1 to 41^oC)
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155^oF (-17 to 68^oC)Package Contents
1 - JCD3199P USB-C Dock Dual 4K HDMI^TM with 140W GaN PD3.1 Power Adapter
1 -140W GaN PD3.1 USB-C 1-Port Charger (JUP17140)
Detachable 3 Pin Power Cord (Note: Depends on selling area)
- 47.24 in /120 cm for US
- 39.37in / 100cm for AU/EU/UK
1 - Quick Installation Guide (QIG)Item Dimension (L inchxW inchxH inch)
7 x 7 x 5

Weight
2.23lb

Warranty Information
2-year
