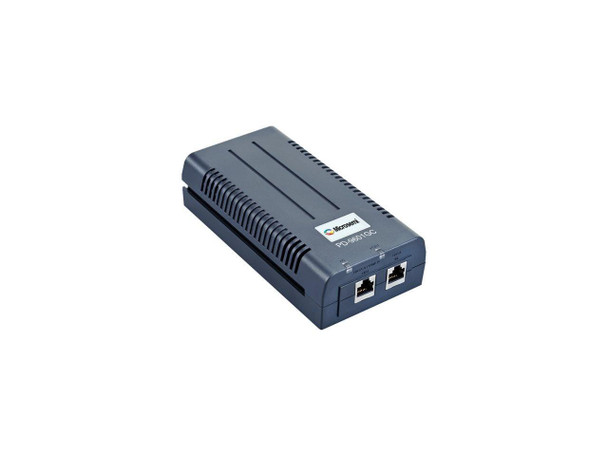

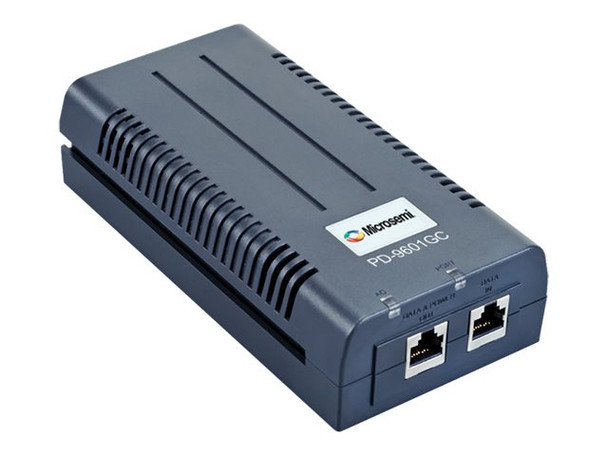

Adaptec 247130 Microchip Nt Pd-9601gc Ac-us 1pt Ieee802.3bt + Legacy Midspan 90w Retail
- SKU:
- 18212771
- MPN:
- 247130
- Availability:
- Out of stock
- Stock Update:
- 04/12/2024 01:25:45 PM PST
- Stock Update:
- 04/12/2024 01:25:45 PM PST
Description
This item is brand-new, factory sealed.
The single port PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9601GC is designed to power PoE compliant devices such as IEEE 802.11ax access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals requiring up to 90W of power.
Package Contents:
- 1-Port, IEEE 802.3bt 90W PoE Midspan
- Power Cord
Features
- 1-Port, IEEE 802.3bt 90W PoE Midspan
- Power Cord
Certifications & Standards:
- IEEE 802.3bt Type 4
- IEEE 802.3af/at
Additional Information:
Power over Ethernet Output:
- Pin Assignment and Polarity:
- Data Pairs 1/2 (-) and 3/6 (+)
- Spare Pairs 7/8 (-) and 4/5 (+)
Indicators:
- AC Power (Green)
- Channel Power Indicators:
- Green-Power delivered over 4 pairs
- Yellow-Power delivered over 2 pairs
- Connectors: Shielded RJ-45, EIA 568A and 568B
- Operating Ambient Temperature: 14ºF to 104ºF (-10ºC to 40ºC)
- Operating Humidity: Maximum 95%, Non-condensing
- Storage Temperature:-4ºF to 158ºF (-20ºC to 70ºC)
- Storage Humidity: Maximum 95%, Non-condensing
- Operating Altitude: -1000 to 6561.6 ft. (-304.8m to 2,000m)
Reliability: MTBF: 100,000 hrs. @25ºC
Thermal Rating: 55 BTU/Hr (@100Vac)
Electromagnetic Emission & Immunity: FCC Part 15, Class B, EN 55032 Class B (Emissions), EN 55024 (Immunity), VCCI
Safety Approvals: UL/EN/IEC 60950-1 (ed.2)
Environmentally Friendly:
Yes
Compatibility:
- Access Points
- Pan-tilt-zoom (PTZ)
- Dome Cameras
- IP Videophones
- Thin Clients
- High Power Ethernet End Terminals
Country of Origin:
China
Specs
| Power Description | |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Maximum Output Voltage | 54 V DC |
| Maximum Output Power | 90 W |
| Input Voltage |
|
| Maximum Input Current | 1.80 A |
| Physical Characteristics | |
| Form Factor | External |
| Weight (Approximate) | 1.05 lb |
| Length | 6.6" |
| Height | 1.7" |
| Width | 3.5" |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Output Ports | 1 x Gigabit Ethernet |
| Input Ports | 1 x Gigabit Ethernet |
| General Information | |
| Brand Name | Microchip |
| Manufacturer Website Address | http://www.microchip.com |
| Marketing Information | The single port PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9601GC is designed to power PoE compliant devices such as IEEE 802.11ax access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals requiring up to 90W of power. |
| Product Type | PoE Injector |
| Product Name | 1-Port, IEEE 802.3bt 90W PoE Midspan |
| Manufacturer | Microchip Technology Inc. |
| Manufacturer Part Number | PD-9601GC/AC-US |
| Product Model | PD-9601GC |
| Product Series | PD-9600GC |
