Aiphone AC-2DM-B 2-dr Controller Blk

This item is brand-new, factory sealed.

• Mounts Right at the Door: designed to be mounted above or near a door, and controls and unlocks the door it is mounted by as well as a nearby door within 500 ft
• Connect Two Readers: two Wiegand reader inputs
• Wire Each Door Completely: two solid state dry contact relays and four configurable inputs, with contacts rated 24V DC at 1A
• Integrated lock power at 12V DC 500mA, and option power at 12V DC 300mA
• Knows When Someone Is There: infrared motion sensor
• Capacity: up to 100,000 card holders and up to 50,000 events, first in first out
• Troubleshoot at the Unit: built-in diagnostic LCD
• Works Alone or in a System: use it on its own, or as part of a larger AC Series system with additional AC-2DM modules and AC-2DR panels, managed with AC Nio software and partitioning options
• Specifications: NDAA and TAA compliant, UL and ULC listed to UL 294 and ULC S319-05, IPv4, IPv6, TCP, UDP and HTTPS, 3-1/2 in H x 10 in W x 2-3/8 in D

• Brand Name: Aiphone
• Manufacturer: Aiphone
• Included Components: AC-2DM-B Two-Door Access Controller
• Part Number: AC-2DM-B

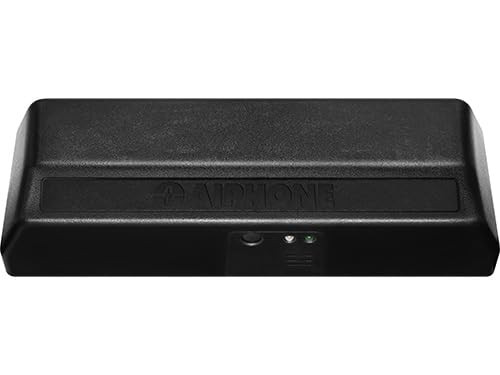

Control two doors from a box that mounts at the door itself, not in a distant closet. The Aiphone AC-2DM-B is a PoE two-door controller with a black case designed to be mounted above or near a door. It can be used to control and unlock the door it is mounted by, as well as a nearby door within 500 ft. This unit is also available in white, as the AC-2DM-W. It provides two Wiegand reader inputs, two solid state dry contact relays, four configurable inputs, and integrated lock power at 12V DC 500mA, with option power at 12V DC 300mA and contacts rated 24V DC at 1A. An infrared motion sensor and a built-in diagnostic LCD are included. Power is PoE, IEEE 802.3af. The controller stores up to 100,000 user credentials and up to 50,000 events, first in first out. It can be used on its own, or as part of a larger AC Series access control system with additional AC-2DM modules and AC-2DR panels, managed using AC Nio management software with partitioning options available. Protocols are IPv4, IPv6, TCP, UDP and HTTPS. It is NDAA and TAA compliant, UL and ULC listed to UL 294 and ULC S319-05, and measures 3-1/2 in H x 10 in W x 2-3/8 in D.
