Ancor

Ancor 17949137 Orange 10 Awg Tinned Copper Wire - 100'

(No reviews yet) Write a Review
SKU:
18274346
MPN:
17949137
Availability:
Usually ships the same or next business day. In stock at our NJ warehouse.
Shipping:
Calculated at Checkout
Stock Update:
11/20/2026 11:05:18 PM PST
$78.45

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 and pay only $72.41 each 72.41
Buy 3 and pay only $70.00 each 70
Buy 4 or above and pay only $68.12 each 68.12
Stock Update:
11/20/2026 11:05:18 PM PST
Frequently bought together:

Description

This item is brand-new, factory sealed.

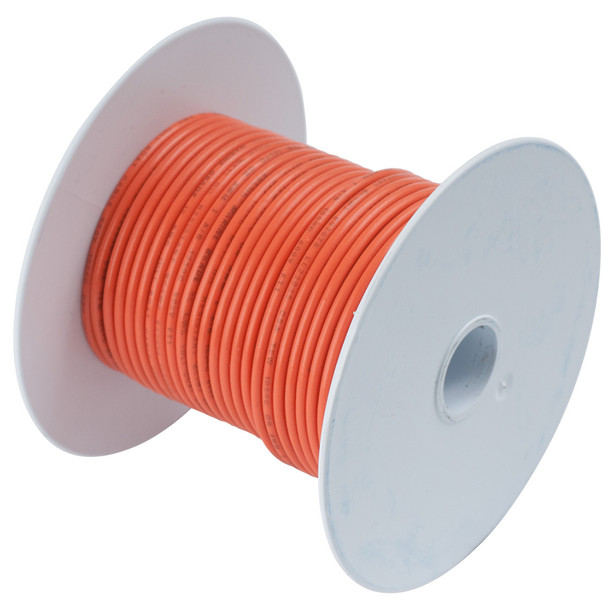

Ancor Tinned Copper Wire, 10 AWG (5mm2), Orange - 100ft
Model: 108510

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Specifications
Wire Gauge10 AWG
ColorOrange
Length100 ft
ConductorTinned copper, Type 3 ultra flexible stranding
Stranding105 strands of 30 AWG
Nominal O.D.7/32" (5.6 mm)
Wire Diameter3.3 mm
Minimum Bend Radius1-29/64" (3.7 cm)
Circular Mil Area10,500
Cross-Sectional Area5.26 mm²
Resistance1.00 ohms per 1000 ft
Weight per 1000 ft44 lbs (20 kg)
Voltage Rating600V
Temperature Rating221°F / 105°C dry, 167°F / 75°C wet
Cold FlexibilityStays flexible to -40°F / -40°C
StandardsExceeds UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46)
