APC

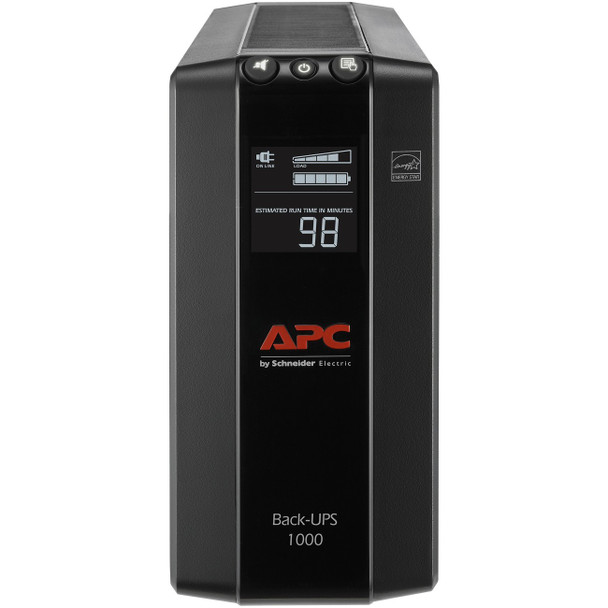

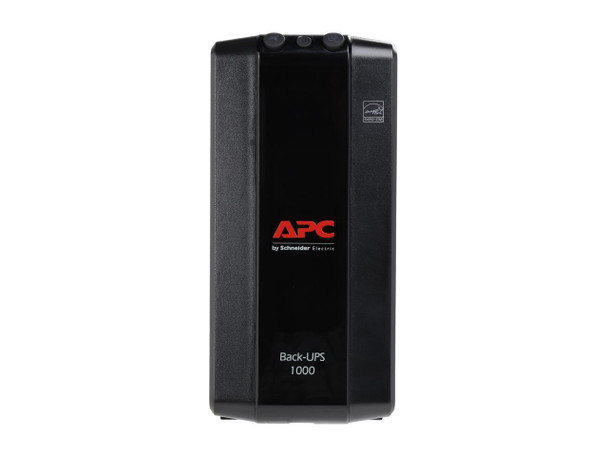

APC by Schneider Electric Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V

(No reviews yet) Write a Review
SKU:
18047307
MPN:
bx1000m
Availability:
Usually ships the same or next business day. In stock at our CA, PA warehouses.
Shipping:
Calculated at Checkout
Stock Update:
07/28/2026 04:23:06 AM PST
  • ALTIMAGE1
  • ALTIMAGE2
  • ALTIMAGE3
  • ALTIMAGE4
  • Alternate-Image2
  • Alternate-Image1
  • Main
  • Alternate-Image7
$229.44
Stock Update:
07/28/2026 04:23:06 AM PST
Frequently bought together:

Description



This item is brand-new, factory sealed.

Specifications

  • Mfr Part Number: BX1000M
  • Output:
    • Output Power Capacity: 600Watts / 1.0 kVA
    • Max Configurable Power: 600Watts / 1.0 kVA
    • Nominal Output Voltage: 120 V
    • Output Frequency (sync to mains):60Hz
    • Topology: Line Interactive
    • Waveform Type: Stepped approximation to a sinewave
    • Maximum Output Current: 15
    • Output Connections:4x NEMA 5-15R (selector_surgetitle); 4x NEMA 5-15R (Battery Backup)
    • Transfer Time: 8ms typical, 10ms maximum
  • Input:
    • Nominal Input Voltage: 120 V
    • Input Frequency: 60Hz +/- 3Hz
    • Input Connections: NEMA 5-15P
    • Cord Length: 1.83 meters
    • Input voltage range for main operations: 88 ~ 139V
    • Number of Power Cords: 1
    • Maximum Input Current:12.0A
  • Batteries & Runtime:
    • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    • Included Battery Modules: 1
    • Typical recharge time: 12 hours
    • Expected Battery Life (years):3 ~5
    • RBC Quantity: 1
  • Communications & Management:
    • Interface Port(s): USB
    • Control panel: Multi-function LCD status and control console
    • Audible Alarm: Alarm when on battery; distinctive low battery alarm; overload continuous tone alarm
  • Surge Protection and Filtering:
    • Surge energy rating: 1103 Joules
    • Filtering: Full time multi-pole noise filtering;5% IEEE surge let-through;zero clamping response time;meets UL 1449
    • Data Line Protection: Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
  • Audible noise at 1 meter from surface of unit: 45.0 dBA
  • Online Thermal Dissipation: 48.5 BTU/hr
  • Regulatory Approvals: FCC Part 15 Class B, UL 1778
  • Color: Black
  • Dimension (WxDxH):3.58 x 12.2 x 7.48 inch / 91.0 x 310.0 x 190.0 mm
  • Weight:15.87 Ibs / 7.2 kg

Features

End of Life Manual Availability:
https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712010_EN&p_File_name=ENVEOLI1712010_EN.pdf



Product Take Back Program:
Yes



EU RoHS Declaration URL:
https://download.schneider-electric.com/files?p_Doc_Ref=BX1000M_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)



Certifications & Standards:
California (CEC) Battery Charger|ENERGY STAR V2.0 (USA)|TUV C-US certified



REACH Declaration URL:
https://download.schneider-electric.com/files?p_Doc_Ref=BX1000M_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)



Environmentally Friendly:
Yes



Optimized Energy Efficiency:
Yes



REACH free of SVHC:
No



Packaging Contains Recycled Cardboard:
Yes



Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)



Energy Star URL:
https://www.energystar.gov/products/uninterruptible_power_supplies



Package Contents:
  • Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V
  • USB cable
  • User manual

    •

    California Proposition 65 Warning:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



    Sustainable Packaging:
    No



    Energy Star:
    Yes



    Single-use Plastic (SUP) Free Shipping Packaging:
    No



    RoHS Exemption Information:
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BX1000M_ROHS_DECLARATION&p_FileName=BX1000MKIT_ROHS_DECLARATION_US.pdf



    Environmental Profile Availability:
    https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712010EN&p_File_name=ENVPEP1712010_V3.pdf



    For Country/Region:
    United States



    Country of Origin:
    Philippines



    Reach Compliance Date:
    12/10/2025



    Specs

    Power Description
    Load Capacity (Watt)600 W
    Input Frequency60 Hz
    Surge Energy Rating1103 J
    Input Voltage Range88 V AC - 139 V AC
    Input Voltage120 V
    Output Voltage120 V AC
    Load Capacity (VA)1000 VA
    Input Current15 A
    Waveform TypeStepped Approximated Sine Wave
    Output Frequency60 Hz
    Physical Characteristics
    Form FactorTower
    Weight (Approximate)15.87 lb
    Product ColorBlack
    Height7.48"
    Color FamilyBlack
    Width3.58"
    Mounting PreferenceNo Preference
    Depth12.20"
    Warranty
    Directly Connected Equipment Guarantee$250000 Lifetime
    Additional Warranty InformationBattery: 12 month(s)|UPS: 36 month(s)
    Limited Warranty3 Year
    Controls/Indicators
    Status Indicators<p><b>LCD Status Display:</b></p> <ul> <li>UPS status </li> <li>Load and battery bar graphs</li> </ul>
    Interfaces/Ports
    USB (HID Compliant) PortYes
    Battery Information
    Backup/Run Time (Full Load)4.30 Minute
    Number of Batteries1
    Battery Energy504 kJ
    Replaceable BatteryYes
    Battery ChemistryLead Acid
    Hot SwappableYes
    Backup/Run Time (Half Load)13.50 Minute
    Typical Battery Recharge Time12 Hour
    Battery CharacteristicsMaintenance-free, Sealed, Leak-proof
    General Information
    Brand NameAPC
    Manufacturer Website Addresshttp://www.schneider-electric.com
    Marketing InformationProtect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS Pro Compact 1000VA. APC Back-UPS Pro Compact provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. This compact tower UPS is designed for workstations, monitors and network devices. Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations so connected devices receive consistent power. The APC compact tower UPS is significantly smaller and lighter than other tower models, allowing for convenient use and installation while still providing quality power protection. With 8 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 600w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD Display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more. 2 RJ-45 data ports are in the back to protect DSL, modem or fax lines from potentially harmful power surges. 2 coaxial ports are also in the back of the UPS for additional protection. This computer backup offers lifetime guaranteed surge protection with a $250,000 equipment protection policy. Package Contains UPS, USB cable and user manual
    More from the Manufacturer
    Product TypeLine-interactive UPS
    Product NameBack UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V
    ManufacturerSchneider Electric SA
    Manufacturer Part NumberBX1000M
    Product LineBack-UPS Pro
    Technical Information
    Receptacle TypeNEMA 5-15R
    Receptacle Detail
    • 4 x NEMA 5-15R Surge
    • 4 x NEMA 5-15R
    PhaseSingle Phase
    Plug/Connector TypeNEMA 5-15P
    Cord Length6 ft
    Dataline Protection
    • Coax
    • RJ-45
    Application/Usage
    • Computer
    • Electronic Equipment
    • Router
    • Modem
    • Storage Device
    • Gaming Console
    • Home
    • Business
    Number of Surge-only Outlets4
    Number of Battery & Surge Outlets8
    Transfer Time10 ms
    AVRYes
    Management
    Alarm
    • On Battery
    • Low Battery
    • Overload
    Environmental Conditions
    Operating Humidity0% - 95%
    Thermal Dissipation14.21 W
    Storage Relative Humidity0% - 95%
    Maximum Storage Elevation50000 ft
    Sound Emission (A-Weighted)45 dB(A)
    Maximum Operating Temperature104&deg;F (40&deg;C)
    Storage Temperature5&deg;F (-15&deg;C) - 113&deg;F (45&deg;C)
    Maximum Operating Elevation10000 ft
