APC

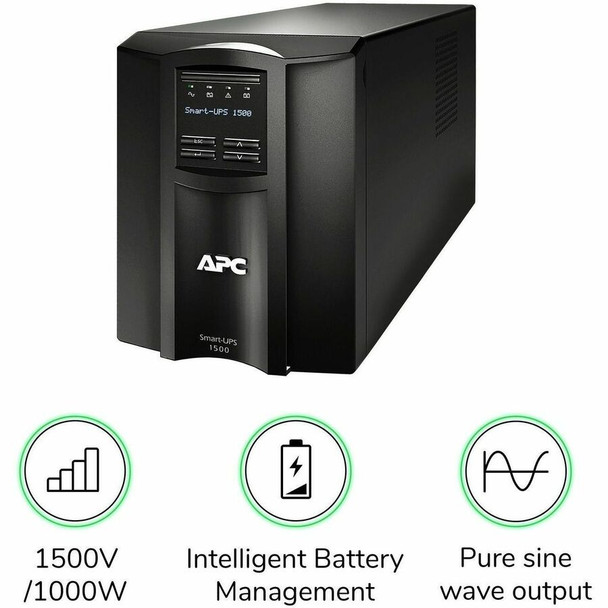

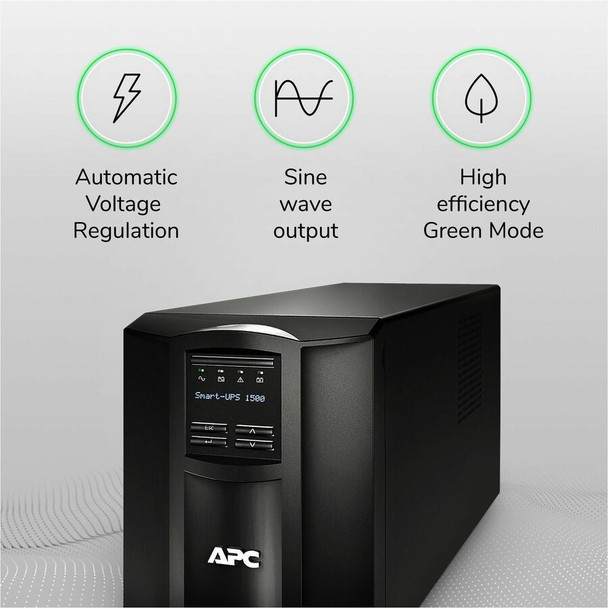

APC SMT1500C Smart-UPS 1500VA LCD 120V with SmartConnect
(No reviews yet)
Write a Review
- SKU:
- 18061171
- MPN:
- smt1500c
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 09/27/2026 09:36:15 PM PST
- Stock Update:
- 09/27/2026 09:36:15 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: SMT1500C
- Output:
- Output Power Capacity: 1.0 KWatts / 1.44 kVA
- Max Configurable Power: 1.0 KWatts / 1.44 kVA
- Nominal Output Voltage: 120 V
- Output Voltage Distortion: Less than 5%
- Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
- Other Output Voltages: 110,127
- Topology: Line Interactive
- Waveform Type: Sine wave

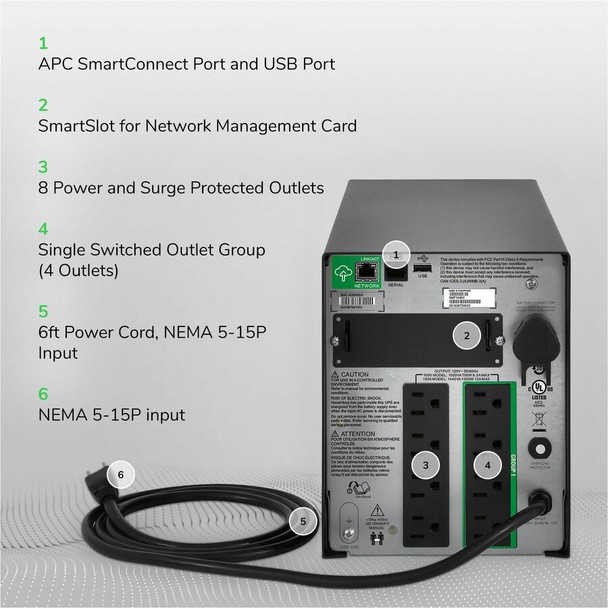

- Output Connections: 8x NEMA 5-15R (Battery Backup)
- Transfer Time?6ms typical; 10ms maximum
- Input:
- Nominal Input Voltage: 120 V
- Input Frequency: 50/60 Hz +/- 3Hz (auto sensing)
- Input Connections: NEMA 5-15P
- Cord Length: 6ft (1.83 meters)
- Input voltage range for main operations: 82 ~ 144 V
- Input voltage adjustable range for mains operation: 75 ~ 154 V
- Number of Power Cords: 1
- Other Input Voltages:110, 127
- Batteries & Runtime:
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
- Typical recharge time: 3 hours
- Expected Battery Life (years): 3 ~ 5
- RBC Quantity: 1
- Communications & Management:
- Interface Ports: SmartSlot, USB
- Control panel: Multi-function LCD status and control console
- Audible Alarm: Alarm when on battery; distinctive low battery alarm; configurable delays
- Available SmartSlot Interface Quantity: 1
- Surge Protection and Filtering:
- Surge energy rating: 680 Joules
- Filtering: Full time multi-pole noise filtering; 0.3% IEEE surge let-through; zero clamping response time; meets UL 1449
- Audible noise at 1 meter from surface of unit: 45.0 dBA
- Online Thermal Dissipation: 225.0BTU/hr
- Color: Black
- Dimensions(WDH): 6.73 x 17.28 x 9.62 inch / 171.0 x 439.0 x 219.0 mm
- Weight: 54.23 lbs / 24.6 kg
- Approvals: CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
- RoHS Compliant
Features
Certifications & Standards:
cULus|ENERGY STAR V2.0 (USA)
https://download.schneider-electric.com/files?p_Doc_Ref=SMT1500C_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Powerchute Serial Edition
No
Yes
Smart-UPS 1500VA LCD 120V with SmartConnect Installation guide USB cable
Yes
No
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500C_ROHS_DECLARATION&p_FileName=SMT1500CKIT_ROHS_DECLARATION_US.pdf
https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1612028EN&p_File_name=ENVPEP1612028_V2_1.pdf
ENERGY STAR 2.0
https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1612028_EN&p_File_name=ENVEOLI1612028_EN.pdf
Yes
https://download.schneider-electric.com/files?p_Doc_Ref=SMT1500C_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Yes
Yes
Restriction of Hazardous Substances (RoHS)
0
No
https://www.energystar.gov/products/uninterruptible_power_supplies
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
No
b2b22a56-41f2-497e-9ea6-cf093b3b8bd3
United States
Vietnam
2/1/2026
cULus|ENERGY STAR V2.0 (USA)
REACH Declaration URL:
https://download.schneider-electric.com/files?p_Doc_Ref=SMT1500C_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Software Included:
Powerchute Serial Edition
REACH free of SVHC:
No
Packaging Contains Recycled Cardboard:
Yes
Package Contents:
Energy Star:
Yes
Single-use Plastic (SUP) Free Shipping Packaging:
No
RoHS Exemption Information:
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500C_ROHS_DECLARATION&p_FileName=SMT1500CKIT_ROHS_DECLARATION_US.pdf
Environmental Profile Availability:
https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1612028EN&p_File_name=ENVPEP1612028_V2_1.pdf
Energy Efficiency Certification:
ENERGY STAR 2.0
End of Life Manual Availability:
https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1612028_EN&p_File_name=ENVEOLI1612028_EN.pdf
Product Take Back Program:
Yes
EU RoHS Declaration URL:
https://download.schneider-electric.com/files?p_Doc_Ref=SMT1500C_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmentally Friendly:
Yes
Optimized Energy Efficiency:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Minimum Percentage of Recycled Metal Content:
0
Product Contributes Saved Avoided Emissions:
No
Energy Star URL:
https://www.energystar.gov/products/uninterruptible_power_supplies
California Proposition 65 Warning:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Packaging:
No
SCIP Number:
b2b22a56-41f2-497e-9ea6-cf093b3b8bd3
For Country/Region:
United States
Country of Origin:
Vietnam
Reach Compliance Date:
2/1/2026
Specs
| Power Description | |
| Load Capacity (Watt) | 1000 W |
| Input Frequency | 60 Hz |
| Surge Energy Rating | 680 J |
| Input Voltage Range |
|
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 1440 VA |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 54.23 lb |
| Product Color | Black |
| Height | 8.62" |
| Color Family | Black |
| Mounting Location | Front |
| Width | 6.73" |
| Mounting Preference | No Preference |
| Depth | 17.28" |
| Warranty | |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | LCD Status |
| Battery Information | |
| Backup/Run Time (Full Load) | 7 Minute |
| Number of Batteries | 1 |
| Battery Life | 5 Year |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Brand Name | APC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | Smart-UPS 1500VA LCD 120V with SmartConnect |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT1500C |
| Product Model | SMT1500C |
| Product Line | Smart-UPS |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 8 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft |
| Application/Usage |
|
| Number of Battery & Surge Outlets | 8 |
| Transfer Time | 6 ms |
| Management | |
| Network Management | SmartConnect |
| Alarm |
|
| Environmental Conditions | |
| Thermal Dissipation | 65.94 W |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 50000 ft |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 41°F (5°C) - 235.4°F (113°C) |
| Maximum Operating Elevation | 10000 ft |
