APC
APC Smart-UPS X SMX3000HVT
- SKU:
- 18136309
- MPN:
- smx3000hvt
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, SC, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/12/2026 12:51:37 AM PST
- Stock Update:
- 10/12/2026 12:51:37 AM PST
Description
This item is brand-new, factory sealed.
Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
Package Contents:
- Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
- CD with Software
- Documentation CD
- Rack Mounting Brackets
- Smart UPS Signalling RS-232 Cable
- USB Cable
- User Manual
Features
https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1612029_EN&p_File_name=ENVEOLI1612029_EN.pdf
Product Take Back Program:
Yes
EU RoHS Declaration URL:
https://download.schneider-electric.com/files?p_Doc_Ref=SMX3000HVT_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Certifications & Standards:
C-tick|CE|CSA|GOST|IRAM|VDE
REACH Declaration URL:
https://download.schneider-electric.com/files?p_Doc_Ref=SMX3000HVT_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmentally Friendly:
Yes
Optimized Energy Efficiency:
Yes
Software Included:
Powerchute Serial Edition
REACH free of SVHC:
No
Packaging Contains Recycled Cardboard:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Minimum Percentage of Recycled Metal Content:
0
Product Contributes Saved Avoided Emissions:
No
Package Contents:
California Proposition 65 Warning:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Packaging:
No
Single-use Plastic (SUP) Free Shipping Packaging:
No
RoHS Exemption Information:
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HVT_ROHS_DECLARATION&p_FileName=SMX3000HVTKIT_ROHS_DECLARATION_US.pdf
Environmental Profile Availability:
https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1612029EN&p_File_name=ENVPEP1612028_V2_1.pdf.pdf
For Country/Region:
United States
Country of Origin:
Philippines
Reach Compliance Date:
12/10/2025
Specs
| Power Description | |
| Load Capacity (Watt) | 2700 W |
| Surge Energy Rating | 645 J |
| Input Voltage | 208 V AC |
| Circuit Breaker | Yes |
| Output Voltage | 208 V AC |
| Load Capacity (VA) | 3000 VA |
| Waveform Type | Sine Wave |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 85.19 lb |
| Product Color | Black |

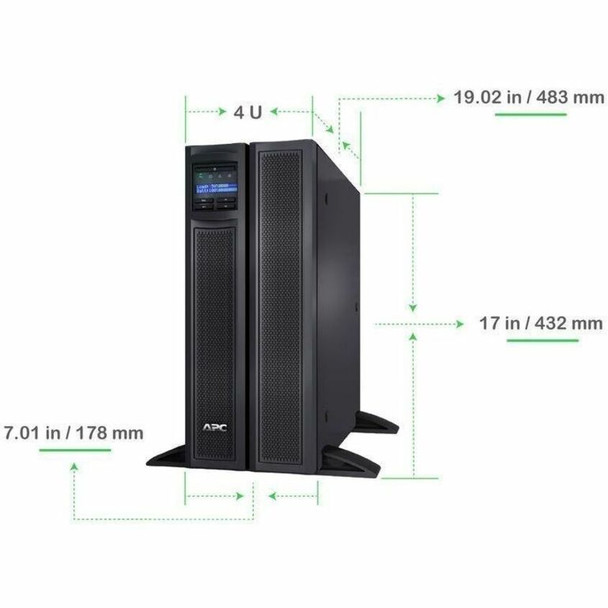

| Height | 17.01" |
| Color Family | Black |
| Mounting Location | Front |
| Width | 7.01" |
| Mounting Preference | Lower |
| Depth | 19.02" |
| Rack Height | 4U |
| Warranty | |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
| Interfaces/Ports | |
| Total Number of Expansion Slots | 1 |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 6.30 Minute |
| Number of Batteries | 1 |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 15.70 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| General Information | |
| Brand Name | APC |
| Manufacturer Website Address | http://www.schneider-electric.com |

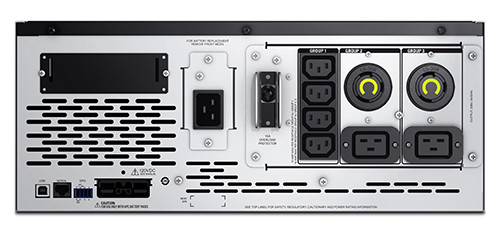

| Marketing Information | This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX3000HVT |
| Product Series | X |
| Product Line | Smart-UPS |
| Technical Information | |
| Receptacle Type | NEMA L6-20P |
| Receptacle Detail |
|
| Plug/Connector Type | NEMA L6-20P |
| Cord Length | 6 ft |
| Protection Type | Surge |
| Emergency Power OFF | Yes |
| Number of Battery & Surge Outlets | 11 |
| Management | |
| Alarm |
|
| Environmental Conditions | |
| Thermal Dissipation | 53.93 W |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Maximum Operating Temperature | 113°F (45°C) |
