Description

This item is brand-new, factory sealed.

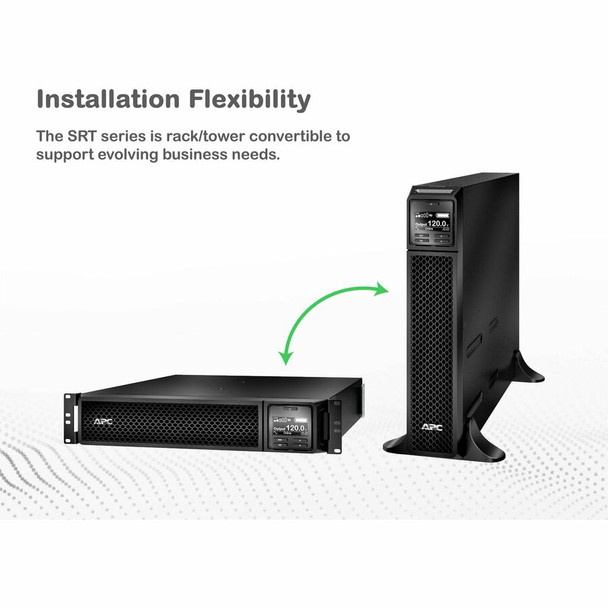

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Package Contents:

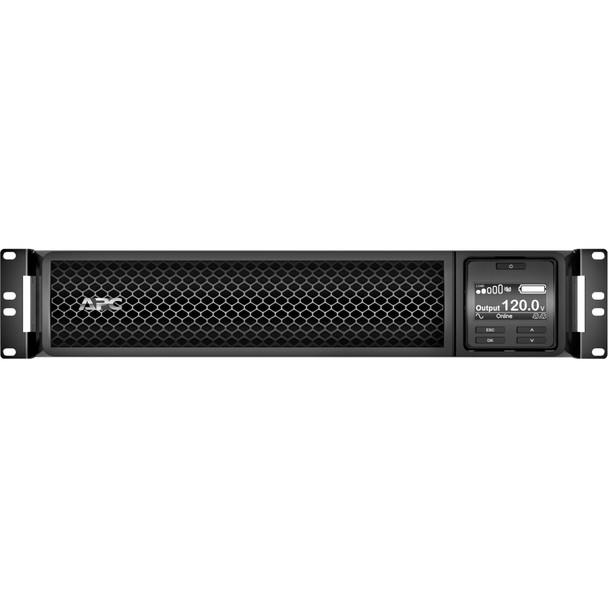

Smart-UPS SRT 2200VA RM 120V Network Card
CD with software
Documentation CD
Installation guide
Network Management Card
Rack Mounting brackets
Rack mounting hardware
Rack Mounting support rails
USB cable
Warranty card

Features

Product Take Back Program:
Yes

EU RoHS Declaration URL:
https://download.schneider-electric.com/files?p_Doc_Ref=SRT2200RMXLA-NC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)

Certifications & Standards:
ENERGY STAR V2.0 (USA)

REACH Declaration URL:
https://download.schneider-electric.com/files?p_Doc_Ref=SRT2200RMXLA-NC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)

Environmentally Friendly:
Yes

REACH free of SVHC:
No

Packaging Contains Recycled Cardboard:
Yes

Environmental Compliance:
Restriction of Hazardous Substances (RoHS)

Minimum Percentage of Recycled Metal Content:
0

Product Contributes Saved Avoided Emissions:
No

Energy Star URL:
https://www.energystar.gov/products/uninterruptible_power_supplies

Package Contents:

Smart-UPS SRT 2200VA RM 120V Network Card

CD with software

Documentation CD

Installation guide

Network management card

Rack mounting brackets

Rack mounting hardware

Rack mounting support rails

USB cable

Warranty card

California Proposition 65 Warning:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Packaging:
No

Energy Star:
Yes

Single-use Plastic (SUP) Free Shipping Packaging:
No

RoHS Exemption Information:
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200RMXLA-NC_ROHS_DECLARATION&p_FileName=SRT2200RMXLA-NCKIT_ROHS_DECLARATION_US.pdf

Environmental Profile Availability:
https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512017EN&p_File_name=ENVPEP1512017_EN.pdf

SCIP Number:
4282bd22-a353-4f82-bb5c-97bbd7f1d1e9

For Country/Region:
United States

Reach Compliance Date:
12/10/2025

Specs

Power Description
Load Capacity (Watt)	1800 W
Surge Energy Rating	340 J
Input Voltage	120 V AC
Output Voltage	120 V AC
Load Capacity (VA)	2200 VA
Waveform Type	Sine Wave
Physical Characteristics
Form Factor	Rack-mountable
Weight (Approximate)	55.12 lb
Product Color	Black
Height	3.35"
Color Family	Black
Mounting Location	Front
Width	17.01"
Mounting Preference	Lower
Depth	22.99"
Rack Height	2U
Warranty
Additional Warranty Information	UPS: 36 month(s)\|Battery: 24 month(s)
Limited Warranty	3 Year
Battery Information
Battery Chemistry	Lead Acid
Typical Battery Recharge Time	3 Hour
General Information
Brand Name	APC
Manufacturer Website Address	http://www.schneider-electric.com
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. More from the Manufacturer
Product Type	Double Conversion Online UPS
Product Name	Smart-UPS SRT 2200VA RM 120V Network Card
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRT2200RMXLA-NC
Product Line	Smart-UPS
Technical Information
Receptacle Type	NEMA 5-20P
Receptacle Detail	1 x NEMA L5-20R 6 x NEMA 5-20R
Phase	Single Phase
Plug/Connector Type	NEMA 5-20P
Cord Length	5.91 ft
Number of Battery & Surge Outlets	7
