ASRock 1U2N2GAM5/2T 1U Dual Node AMD AM5 Server System with 10GbE 1U2N2GAM5/2T

This item is brand-new, factory sealed.

1U2N2G-AM5/2T

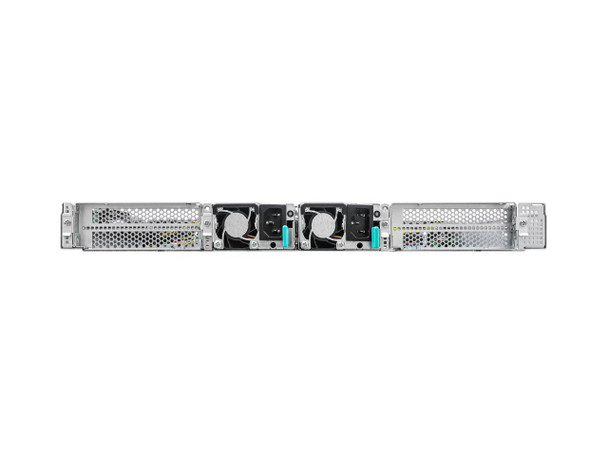

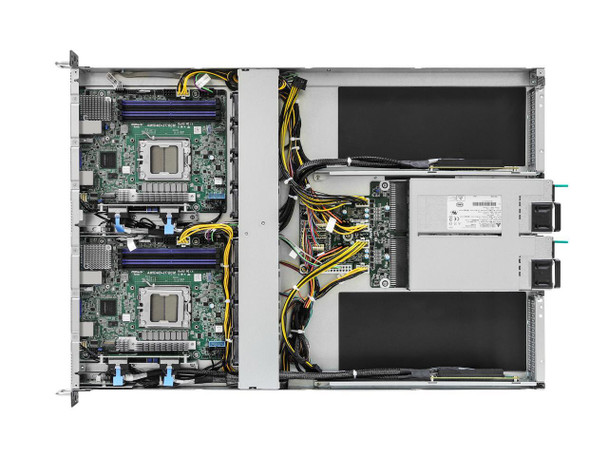

1U chassis with 2 nodes, 1+1 80-PLUS Platinum, 1600W CRPS
Single Socket AM5 (LGA 1718), supports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 FH dual-slot PCIe5.0 x16 per node
Supports 1 M.2 (PCIe4.0 x4) per node
2 RJ45 (10GbE) by Broadcom BCM57416 per node
Remote management (IPMI)System
Form Factor
1U Rackmount
Support MB
AM5D4ID-2T/BCMFront Panel
Buttons
UID w/LED, Power w/LED
LEDs
System Fail

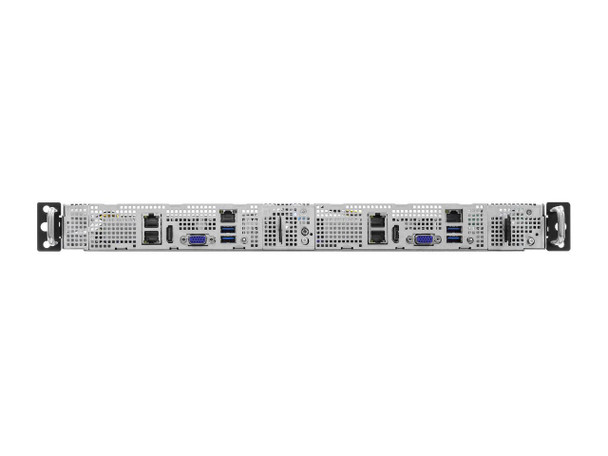

I/O Ports
2 RJ45 (10GbE) by Broadcom BCM57416, 2 Type-A (USB3.2 Gen1), 1 DB15 (VGA), 1 HDMI
IPMI LAN
1 dedicated IPMIExternal Drive Bay / Storage
Internal Side
1 M-key (PCIe4.0 x4), supports 2280 form factor CPUPower Supply
Type
1+1 CRPS
Output Watts
1000W at100-127Vac input / 1600W at 200-240Vac input
Efficiency
80-PLUS Platinum
AC Input
Low-line: 100-127Vac, 60/50Hz High-line: 200-240Vac, 60/50HzSystem Fan
Fan
8 PWM Hot-swap 40x56 mm fansProcessor System
CPU
Supports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series Processors
Socket
Single Socket AM5 (LGA 1718)
Thermal Design Power
Up to 120W
Chipset
KNOLL3 X300System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
48GB
Max. DIMM Frequency
5600 MHz (1DPC) 3600 MHz (2DPC)
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
1 FHFL dual-slot PCIe5.0 x16 or 2 FHFL single-slot PCIe5.0 x8
Support passive-cooling GPU card dimensions (L x W x H):
266.7 x 111.15 x 39.04 mm (GPU power connector on the east edge)
Please contact ASRock Rack for suggested active-cooling GPU card dimensions or further details.Ethernet
Additional GbE Controller
Broadcom BCM57416: 2 RJ45 (10GbE)Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLANGraphics
Controller
ASPEED AST2600:
1 DB15 (VGA)
AMD Processors with Graphics:
1 HDMISystem BIOS
BIOS Type
AMI UEFI BIOS 256Mb (32MB) SPI Flash ROM
BIOS Features
Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3Hardware Monitor
Temperature
CPU, DDR, MB, Card Side
Fan
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage
3VSB, 5VSB, VCPU, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V Supported OS
OS
Microsoft Windows:
Windows 10 (64 bit)
Windows 11 (64 bit)
Linux:
UBuntu 22.04.2 (64 bit)
On the Windows system, Raid mode supports UEFI Boot only.
The Linux system doesnt support Raid Mode. Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)Item Dimension (L"xW"xH")
35 x 25 x 9

Weight
57 lbs

Warranty Information
36 M
