ASRock IMB-1231 Industrial Motherboard - Intel Q670 Chipset - Socket LGA-1700 - Mini ITX (263316)

This item is brand-new, factory sealed.

Intel 12th Gen (Alder Lake-S) Core Processors with Q670 chipset

2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)

1 x PCIe x16 (Gen4), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 5 x COM, 4 x SATA3

2 x Intel 2.5 Gigabit LAN

Supports Quad display, 1 x HDMI 2.0b, 2 x DP1.4a, 1 x LVDS or eDP, 1 x VGA

TPM 2.0 onboard IC

Supports Intel vPro, AMT, RAID 0/1/5/10

ATX-PWR (24+4-pin) and +12V DC-In co-design Form Factor
Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm) Processor System
CPU
Intel 12th Gen (Alder Lake-S) Core^TM Processors, up to 65W
Chipset
Intel Q670
Socket
LGA1700
BIOS
AMI SPI 256 Mbit Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM Graphics
Controller
Intel UHD Graphics DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160 at 60Hz HDMI
HDMI 2.0b
Max resolution up to 4096x2160 at 60Hz eDP
Max resolution up to 1920 x 1200 at 60Hz LVDS
Dual channel 24 bit up to 1920x1200 at 60Hz VGA
Max resolution up to 1920 x 1200 at 60Hz MultiDisplay
Quad Display Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G
PCIe
1 x PCIe x16 (Gen4, Support riser card x8/x8)
SIM Socket
1 x Socket connected to M.2 Key B Audio
Interface
Realtek ALC897, High Definition Audio. Line-out,Mic-in Ethernet
Controller/ Speed
LAN1: Intel I225LM with 10/100/1000/2500 Mbps, support AMT/vPro
LAN2: Intel I225LM with 10/100/1000/2500 Mbps
Connector

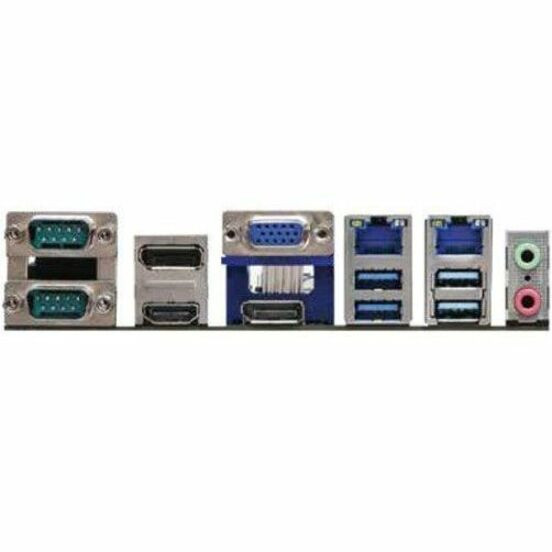

2 x RJ-45 Rear I/O
HDMI
1 x HDMI 2.0b DisplayPort
2 x DP 1.4a++ VGA
1 Ethernet
2 x 2.5 Gigabite LAN USB
4 x USB 3.2 (Gen2) Audio
2 (Mic-in, Line-out) COM
2 x COM(RS-232/422/485)
