Asrock B650D4U B650 Motherboard

This item is brand-new, factory sealed.

Micro-ATX (9.6"x 9.6")

Supports AMD EPYC 4004 and AMD Ryzen 8000/7000 Series Processors

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM

1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1

Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)

2 RJ45 (1GbE) by Intel i210

4 SATA 6Gb/s

1 HDMI, 1 DisplayPort

Remote management (IPMI) Physical Status
Form Factor
Micro-ATX Processor System
CPU
Supports AMD EPYC^TM 4004 and AMD Ryzen^TM 8000/7000 Series Processors
Socket
Single Socket AM5 (LGA 1718)
Thermal Design Power
Up to 170W by proper cooling solution
Chipset
AMD B650E System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
48GB
Max. DIMM Frequency
5200 MHz (1DPC), 3600 MHz (2DPC)
Voltage
1.1V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 x16 (CPU)
PCIe x 4
SLOT7: PCIe5.0 x4 (CPU)
PCIe x 1
SLOT4: PCIe4.0 x1 (FCH) Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor (CPU)
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor (FCH) SATA/SAS Storage
PCH Built-in Storage
AMD B650E (4 SATA 6Gb/s):
4 SATA 7-pin Ethernet
Additional GbE Controller
Intel i210: 2 RJ45 (1GbE) Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN Graphics
Controller
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:

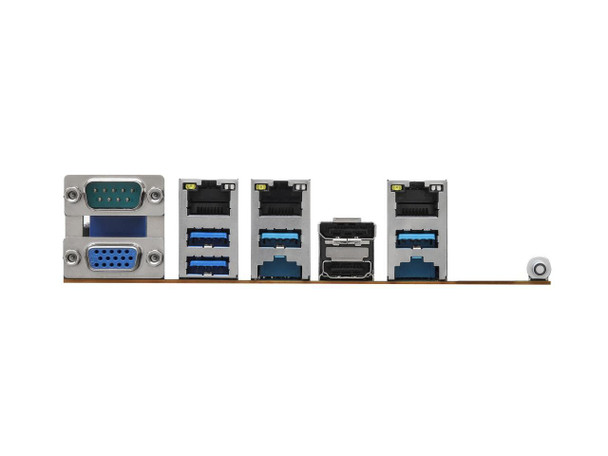

1 HDMI, 1 DisplayPort Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (1GbE)
1 dedicated IPMI Internal Connector/Headers
Power Connector
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN activity LED
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header
1
Speaker Header
1
Buzzer
1
Fan Header
7 (6-pin)
TPM Header
1 (13-pin, SPI)
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1
Others
1 (3-pin, 80 debug port header) LED Indicators
Standby PWR LED 5vsb
1 (5VSB)
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1 System BIOS
BIOS Type
AMI UEFI BIOS, 256Mb (32MB) SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 Hardware Monitor
Temperature
CPU, DDR, MB, Card Side, Chipset, M.2 slot
Fan
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V Supported OS
OS
Microsoft Windows:
- Windows 10 (64 bit)
- Windows 11 (64 bit)
Linux:
- UBuntu 22.04.1 (64 bit)
Note: On the Windows system, Raid mode supports UEFI Boot only.
Note: The Linux system doesnt support Raid Mode. Environment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
14 x 12 x 3

Weight
4.00 lb

Warranty Information
3 Years
