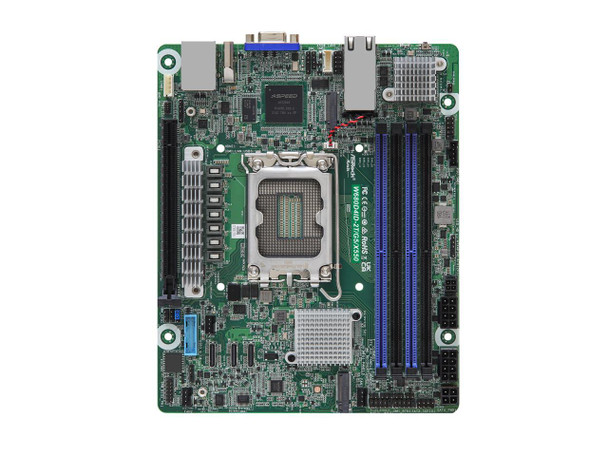

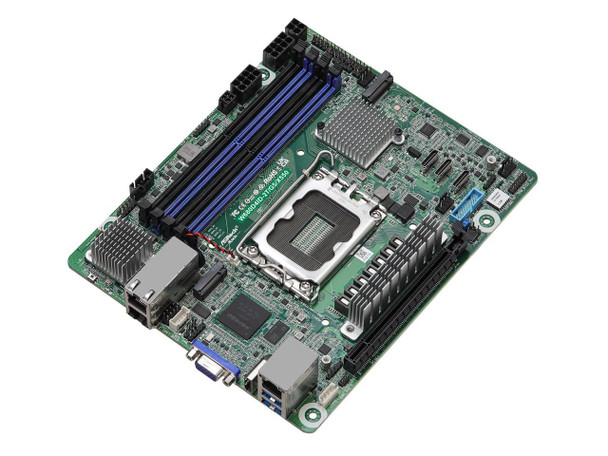

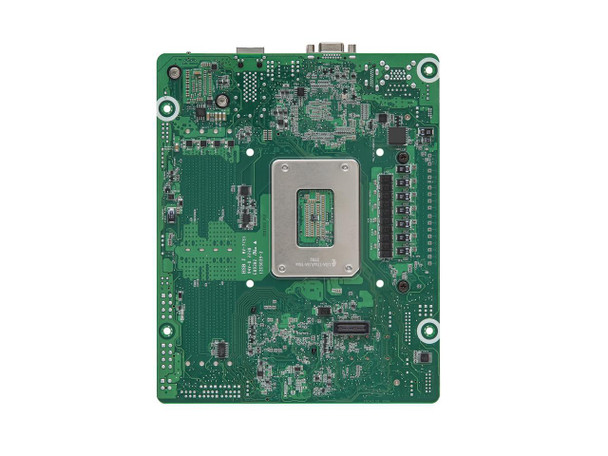

ASRock W680D4ID2T/G5/X550 Mini-ITX Server Motherboard for Intel Core 12th/13th Gen W680D4ID2T/G5/X550

This item is brand-new, factory sealed.

W680D4ID-2T/G5/X550

Deep mini-ITX (6.7" x 8.2")

Supports Intel Core 14th Gen, 13th & 12th Gen Intel Core series processors

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM Memory

1 PCIe5.0 x16

1 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s), 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)

Supports 2 M.2 (PCIe4.0 x4)

8 SATA 6Gb/s

2 RJ45 (10GbE) by Intel X550

Remote management (IPMI)Physical Status
Form Factor
Deep mini-ITX
Dimensions
6.7" x 8.2"Processor System
CPU
Supports Intel Core^TM 14th Gen, 13th and 12th Gen Intel Core^TM series processors
Socket
Single Socket LGA 1700
Thermal Design Power
150W
Chipset
Intel W680System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
48GB on Intel Core^TM 14th Gen, 13th Gen Intel Core^TM processors
32GB on 12th Gen Intel Core^TM processors
Max. DIMM Frequency
4400MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R)
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe5.0 x16 (CPU)Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe4.0 x4), support 2280 form factor (CPU)
1 M-key (PCIe4.0 x4), support 2280 form factor (PCH)
OCuLink
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) (PCH)
1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) (PCH)
1 OCuLink (PCIe4.0 x4) (PCH)SATA/SAS Storage
PCH Built-in Storage
Intel W680 (up to 8 SATA 6Gb/s, RAID 0/1/5/10):
2 OCuLink for 8 SATAEthernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel X550

Server Management
BMC Controller
ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211FGraphics
Controller
ASPEED AST2600:
1 DB15 (VGA)
Intel Integrated Processor Graphics:

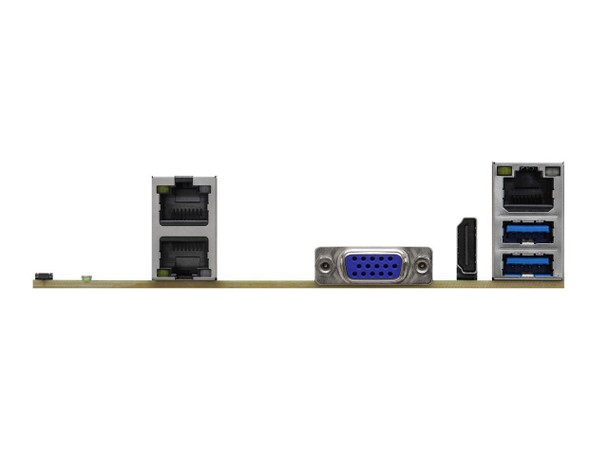

1 HDMIRear I/O
UID Button/LED
1 UID button, 1 UID LED
Video Port
1 DB15 (VGA), 1 HDMI
USB 3.2 Gen1 Port
2 Type A (USB3.2 Gen1)
RJ45
2 RJ45(10GbE), 1 dedicated IPMIInternal Connector/Headers
Power Connector
1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors
1 (4-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header
1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1
Speaker Header
1
Fan Header
3 (4-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (2-pin)
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
NMI Header
1LED Indicators
Standby PWR LED
1
Fan Fail LED
3
BMC heartbeat LED
1System BIOS
BIOS Type
AMI 256Mb SPI Flash ROM
BIOS Features
Plug and Play(PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 3.6.0 and above, ASRock Rack instant flashHardware Monitor
Temperature
CPU, MB, VR, M.2, X550 Temperature Sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
5VSB, 3VSB, VCORE, VCCIN_AUX, VDD2, 1.05V_PCH, 0V82SB_PCH, VCCGT, 1V8SB, 3V,5V, 12V, BAT, VCCSASupported OS
OS
Windows 10 (64 bit)
Windows 11 (64 bit)Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
15 x 10 x 5

Weight
6.00 lb

Warranty Information
36 M
