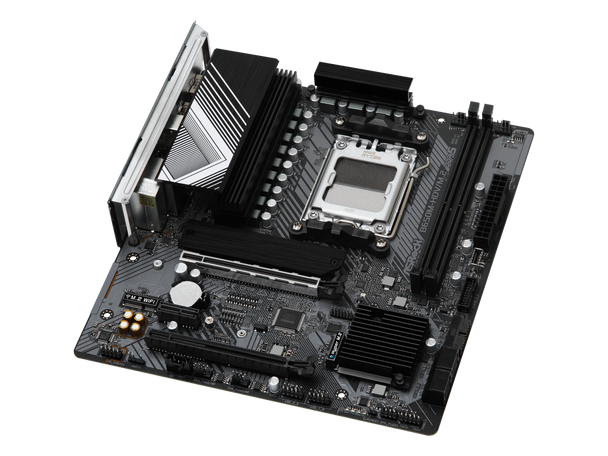

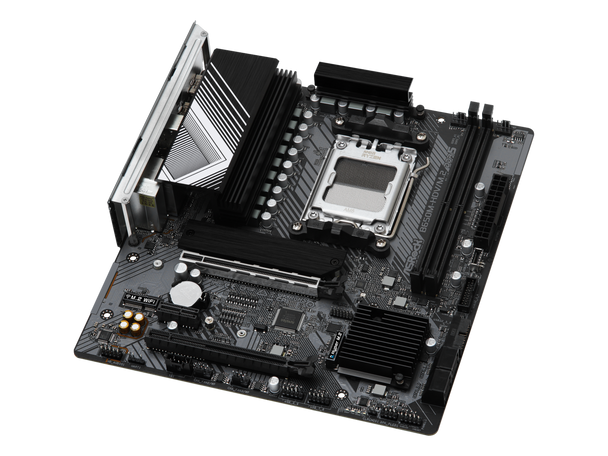

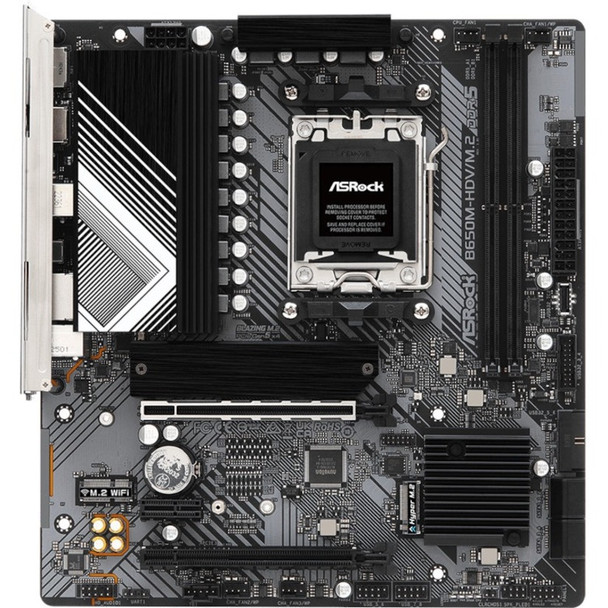

ASRock B650M-HDV/M.2 Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX (272684)
(No reviews yet)
Write a Review
- SKU:
- 20034442
- MPN:
- 272684
- Availability:
- Usually ships in 1-2 business days.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/23/2025 12:10:32 AM PST
- Stock Update:
- 12/23/2025 12:10:32 AM PST
Description
This item is brand-new, factory sealed.
Supports AMD Socket AM5 Ryzen 7000 Series Processors8+2+1 Power Phase, Dr.MOS
Supports DDR5 7200+ MHz (OC)
2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA 2 Graphics*
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2 Front Type-C,
7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer, BIOS Flashback
Pre-Installed I/O Shield
*Actual support may vary by CPU. Unique Feature
Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 8+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I/O Shield
Ultrafast Gaming
- 2.5G LAN EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker CPU
- Supports AMD Socket AM5 RyzenTM 7000 Series Processors Chipset
- AMD B650 Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
- Max. capacity of system memory: 96GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support Graphics
Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeNote
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 modeNote
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2) Note
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFireTM
- 15mu Gold Contact in VGA PCIe Slot (PCIE1)
Note: Supports NVMe SSD as boot disks Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) modeNote
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) modeNote
- 4 x SATA3 6.0 Gb/s Connectors
Note: Supports NVMe SSD as boot disks RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devicesNote
Note: Requires additional M.2 NVMe expansion cards to support RAID 10 USB
- 1 x USB 3.2 Gen2 Type-C (Front)
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Note: All USB ports support ESD Protection Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin) Note1
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) Note2
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x ThunderboltTM AIC Connector (5-pin) (Supports ASRock ThunderboltTM 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header
Note1: CPU_FAN1 supports the fan power up to 1A (12W).
Note2: CHA_FAN1 to 3/WP support the fan power up to 2A (24W).
CHA_FAN1 to 3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN SoftwareNote
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Note: These utilities can be downloaded from ASRock Live Update and APP Shop. Accessories
- 1 x User Manual
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets Form Factor
- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
- 2oz Copper PCB OS
- Microsoft Windows 10 64-bit / 11 64-bit Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)Item Dimension (L inchxW inchxH inch)
11 x 11 x 3
Weight
3.00 lb
Warranty Information
3 years
Features
Environmentally Friendly:
Yes
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 8.9" |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 2 |
| Memory Speed Supported | 6400 MHz |
| Memory Form Factor |
|
| Maximum Memory Supported | 64 GB |
| General Information | |
| Brand Name | ASRock |
| Manufacturer Website Address | http://www.asrock.com |
| Marketing Information | Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. DDR5 Memory with Protection Circuit Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. Reinforced Steel Slot [PCIe 4.0 Version] The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include: ? Extra anchor points ? Stronger latch ? Ensure signal stability ? Make sure heavy graphics cards to be well-installed. Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. PCIe Gen5 Blazing M.2 The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. |
| Product Type | Gaming Desktop Motherboard |
| Product Name | B650M-HDV/M.2 Gaming Desktop Motherboard |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | B650M-HDV/M.2 |
| Product Model | B650M-HDV/M.2 |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Multi GPU Supported | CrossFire |
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Model | B650 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 2.0 Ports | 4 |
| Interfaces/Ports | |
| HDMI Version | <li>2.1</li> |
| DisplayPort | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| HDMI | Yes |
| Number of USB 2.0 Ports | 4 |
| Total Number of USB Ports | 7 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
