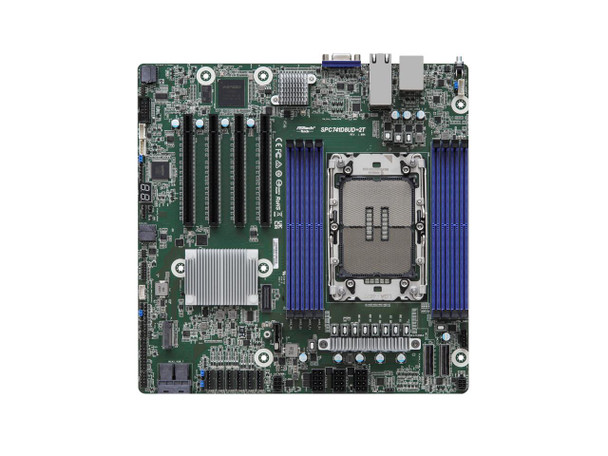

Asrock SPC741D8UD2T/X550 Server Motherboard SPC741D8UD2T/X550

This item is brand-new, factory sealed.

SPC741D8UD-2T/X550
Deep Micro-ATX (10.4" x 10.5")
Supports 5th and 4th Gen Intel Xeon Scalable processors
8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
4 PCIe5.0 / CXL1.1 x16
2 MCIO (PCIE5.0 x8)
Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
Up to 9 SATA 6Gb/s
2 RJ45 (10GbE) by Intel X550-AT2
Supports ATX PSU or 12V DC-in
Remote management (IPMI)Physical Status
Form Factor
Deep Micro-ATXProcessor System
CPU
Supports 5th and 4th Gen Intel Xeon Scalable processors
Socket
Single Socket E (LGA 4677)
Thermal Design Power
350W
Chipset
Intel C741 System Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM
RDIMM: 96GB
RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
Max. DIMM Frequency
5600 MT/s on 5th Gen Intel Xeon Scalable Processors
4800 MT/s on 4th Gen Intel Xeon Scalable Processors
Memory speed and capacity support varies by CPU SKU
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe5.0 / CXL1.1 x16 CPU
SLOT6: PCIe5.0 / CXL1.1 x16 CPU
SLOT5: PCIe5.0 / CXL1.1 x16 CPU
SLOT4: PCIe5.0 / CXL1.1 x16 CPUOther PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe3.0 x4 or SATA 6Gb/s) support 2280 form factor PCH
Others
2 MCIO (PCIE5.0 x8) CPUSATA/SAS Storage
PCH Built-in Storage
Intel C741 (9 SATA 6Gb/s, support RAID 0/1/5/10):
1 Mini-SAS HD 8i for 8 SATA, 1 M.2Ethernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel X550-AT2Server Management
BMC Controller
ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211FGraphics
Controller
ASPEED AST2600:
1 DB15 (VGA)Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE), 1 dedicated IPMIInternal Connector/Headers
Power Connector
1 Mirco-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors
1 Mirco-Fit (6-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1 (9-pin)
Speaker Header
1 (4-pin)
Fan Header
6 (6-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
VROC header
1
HSBP
1
SMBus header
2
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Type A USB 2.0 Port
1 header (9-pin, 2 USB2.0)
NMI Header
1LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
6
BMC heartbeat LED
1System BIOS
BIOS Type
AMI UEFI BIOS 512Mb SPI Flash ROM
BIOS Features
Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant FlashHardware Monitor
Temperature
CPU, PCH, MB, Card side Temperature Sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSBEnvironment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)Item Dimension (L"xW"xH")
14 x 12 x 3

Weight
4 lbs

Warranty Information
3 Years
