Asrock GENOAD8X2T/BCM Motherboard GENOAD8X2T/BCM

This item is brand-new, factory sealed.

GENOAD8X-2T/BCM
EEB (12.63" x 13")
Single Socket SP5 (LGA 6096), supports AMD EPYC 9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
4 PCIe5.0 / CXL1.1 x16, 3 PCIe5.0 x16, 1 PCIe5.0 x8
2 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s), 1 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s), 1 MCIO (PCIe5.0 x4)
Supports 1 M.2 (PCIe5.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe5.0 x4)
Up to 16 SATA 6Gb/s
2 RJ45 (10GbE) by Broadcom BCM57416
Remote Management (IPMI)Physical Status
Form Factor
EEB Processor System
CPU
Supports AMD EPYC 9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
Socket
Single Socket SP5 (LGA 6096)
Chipset
System on ChipSystem Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM
RDIMM: 64GB (2R)
RDIMM-3DS: 512GB (2S8Rx4)
Max. DIMM Frequency
4800 MHz
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 / CXL1.1 x16
SLOT5: PCIe5.0 x16
SLOT4: PCIe5.0 / CXL1.1 x16
SLOT3: PCIe5.0 x16
SLOT2: PCIe5.0 / CXL1.1 x16
SLOT1: PCIe5.0 x16
SLOT0: PCIe5.0 / CXL1.1 x16
SLOT1 shared lanes with 1 MCIO and 1 M.2. SLOT1 auto-switch to PCIe5.0 x8 when either 1 MCIO or 1 M.2 populated.
PCIe x 8
SLOT7: PCIe5.0 x8
SLOT7 share lanes with 2 MCIO. When SLOT7 occupied, 1 MCIO will not function and 1 MCIO can be enabled by jumper setting. When selecting 1 MCIO, SLOT7 will switch to PCIex4.Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe5.0 x4 or 4 SATA 6Gb/s), supports 22110/2280 form factor
1 M-key (PCIe5.0 x4), supports 22110/2280 form factor
Others
2 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s)
1 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s)
1 MCIO (PCIe5.0 x4)SATA/SAS Storage
PCH Built-in Storage
AMD EPYC 9004 (16 SATA 6Gb/s):
3 MCIO, 4 SATA via optional M2U2_HD_G4 M.2 deviceEthernet
Additional GbE Controller
Broadcom BCM57416: 2 RJ45 (10GbE)Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLANGraphics
Controller
ASPEED AST2600
VRAM

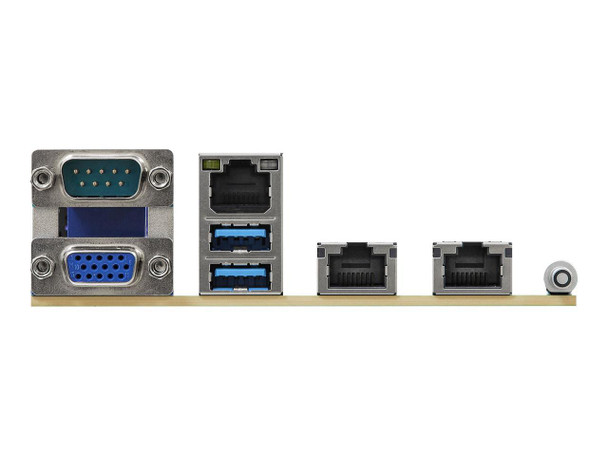

DDR4 512MBRear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE)
1 dedicated IPMIInternal Connector/Headers
Power Connectorbr>1 (24-pin, ATX main power), 3 (8-pin, ATX 12V)
Auxiliary Panel Headerbr>1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panelbr>1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Headerbr>1
VGA headerbr>1
Speaker Headerbr>1 (4-pin)
Fan Headerbr>8 (6-pin)
Thermal Sensor Headerbr>1
TPM Headerbr>1 (13-pin, SPI)
SMBus headerbr>1
PMBus headerbr>1
IPMB Headerbr>1
Clear CMOSbr>1 (contact pads)
USB 3.2 (Gen1) Headerbr>1 (19-pin, 2 USB3.2 Gen1)
NMI Headerbr>1LED Indicatorsbr>Standby PWR LED 5vsb
1 (5VSB)
80 Debug Port LEDbr>1
Fan Fail LEDbr>8
BMC heartbeat LEDbr>1System BIOS
BIOS Type
AMI UEFI BIOS 256 Mb (32MB) SPI Flash ROM
BIOS Features
ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)Hardware Monitor
Temperature
CPU, MB, TR1 Temperature sensing
Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage
VCORE,VCCSA,VCCM,3V, 5V, 12V, +1.05V_PCH_AUX,+BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPPSupported OS
OS
Microsoft Windows:
- Server 2019 (64 bit)
- Server 2022 (64 bit)
Linux:
- RedHat Enterprise Linux Server 8.6 (64 bit) / Server 8.7 (64 bit) / Server 9.0 (64 bit) / Server 9.1 (64 bit)
- SUSE SLES 15.4(64 bit)
- UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit)
Hypervisor::
- VMWare ESXi/ 7.0 U3i / 8.0
- CITRIX Hypervisor 8.2.1Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)Item Dimension (L"xW"xH")
16 x 15 x 14

Weight
25 lbs

Warranty Information
3 Years
