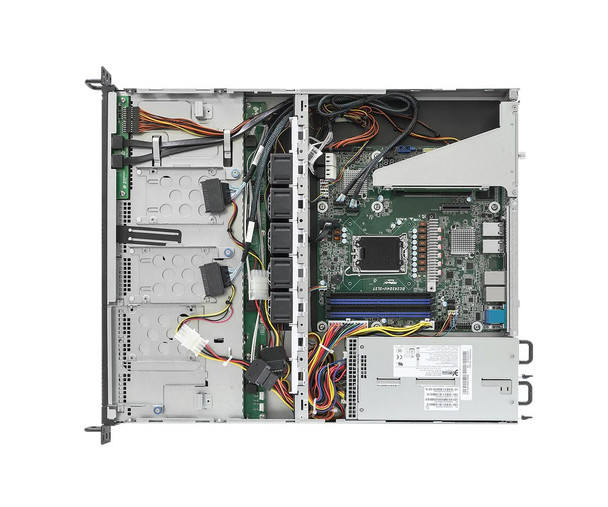

Asrock 285660 1U4LW-C262 1U Server Barebone for Intel Xeon E-2400

This item is brand-new, factory sealed.

1U4LW-C262/2L2T RPSU
1U Rackmount with 1+1, 80-PLUS Platinum, 450W RPSU
Single Socket V1 (LGA 1700), supports Intel Xeon 6300-series, Xeon E-2400 series, and Pentium Gold G7400/G7400T processors
4 DIMM slots, supports DDR5 ECC UDIMM
4 Hot-swap 3.5" SATA drive bays
2 fixed 2.5" NVMe (PCIe4.0 x4) drive bays
1 FHHL PCIe5.0 x16
Supports 1 M.2 (PCIe4.0 x4)
2 RJ45 (10GbE) by Intel X710
2 RJ45 (1GbE) by Intel i210
Remote management (IPMI)System
Form Factor
1U Rackmount
Support MB
EC262D4U-2L2TFront Panel
Buttons
Power Switch, ID Switch, System reset, NMI
LEDs
Power status, HDD, LANs, System Fail activity LEDs
I/O Ports
2 Type-A (USB3.2 Gen1)External Drive Bay / Storage
Front Side Drive Bay
4 Hot-swap 3.5" SATA drive bays
Front Side Backplane
4-port 6Gbps passive backplane
Internal Side
2 fixed 2.5" NVMe (PCIe4.0 x4) drive bay
1 M-key (PCIe4.0 x4) support 2280/2260/2242/2230 form factor PCHPower Supply
Type
1+1 Hot-swap RPSU
Output Watts
450W at 100-240Vac input
Efficiency
80-PLUS Platinum
AC Input
AC 100-240V/6-3A,50-60 HzSystem Fan
Fan
5 PWM Easy-swap 40x28 mm fansProcessor System
CPU
Supports Intel Xeon 6300-series, Xeon E-2400 series, and Pentium Gold G7400/G7400T processors
Socket
Single Socket V1 (LGA 1700)
Thermal Design Power
max. up to 95W (TDP)
Chipset
Intel C262System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
Supports DDR5 288-pin ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R)
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
1 FHHL PCIe5.0 x16 via RB1UX16R_G5TPM
TPM support
1 (13-pin, SPI)Ethernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel X710
2 RJ45 (1GbE) by Intel i210Server Management
BMC Controller
ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211FGraphics
Controller
ASPEED AST2600:
1 DB15 (VGA)Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMISystem BIOS
BIOS Type
AMI 256Mb SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant FlashHardware Monitor
Temperature
CPU, MB, Card side, VR, DDR5, PCH, M.2, X710, TR1 Temperature sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, VCCSA, BAT, 3V, 5V, 12VEnvironment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)Item Dimension (L"xW"xH")
21 x 19 x 18

Weight
52 lbs

Warranty Information
36M
