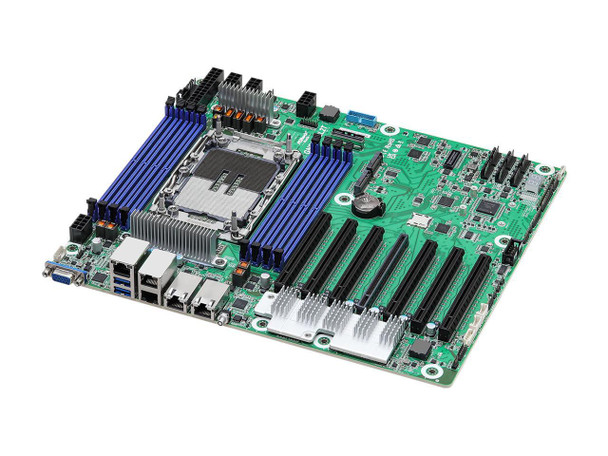

Asrock GNRD82L2T Motherboard

This item is brand-new, factory sealed.

GNRD8-2L2T
CEB (12" x 10.5")
Supports Intel Xeon 6700P-series, 6500P-series, and 6700E-series processors
8 DIMM slots (1DPC) supports DDR5 RDIMM, MRDIMM
7 PCIe5.0 / CXL2.0 x16
1 MCIO (PCIe5.0 / CXL2.0 x8)
Supports 2 M.2 (PCIe5.0 x4)
2 RJ45 (10GbE) by Intel X710-AT2
2 RJ45 (1GbE) by Intel i210
Remote management (IPMI)Physical Status
Form Factor
CEB
Dimensions
12" x 10.5"Processor System
CPU
Supports Intel Xeon 6700P-series, 6500P-series, and 6700E-series processors
Socket
1 Socket E2 (LGA 4710)
Chipset
System on ChipSystem Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
DDR5 RDIMM
DDR5 MRDIMM (1DPC only)
Max. Capacity per DIMM
RDIMM: 128GB
MRDIMM: 64GB
Max. DIMM Frequency
RDIMM: 6400MT/s
MRDIMM: 8000MT/s
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe5.0 / CXL2.0 x16
SLOT6: PCIe5.0 / CXL2.0 x16
SLOT5: PCIe5.0 / CXL2.0 x16
SLOT4: PCIe5.0 / CXL2.0 x16
SLOT3: PCIe5.0 / CXL2.0 x16
SLOT2: PCIe5.0 / CXL2.0 x16
SLOT1: PCIe5.0 / CXL2.0 x16
SLOT7, 4, 2 only function with selected processorsTPM
TPM Support
1 (13-pin, SPI)Other PCIe Expansion Connectors
M.2 slot
2 M-key (PCIe5.0 x4), supports 22110/2280 form factor
Others
1 MCIO (PCIe5.0 / CXL2.0 x8)Ethernet
Additional Ethernet Controller
2 RJ45 (10GbE) by Intel X710-AT2
2 RJ45 (1GbE) by Intel i210Server Management
BMC Controller
ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
Dedicated IPMI LAN
1 Realtek RTL8211F for dedicated management GLANGraphics
Controller
ASPEED AST2600:

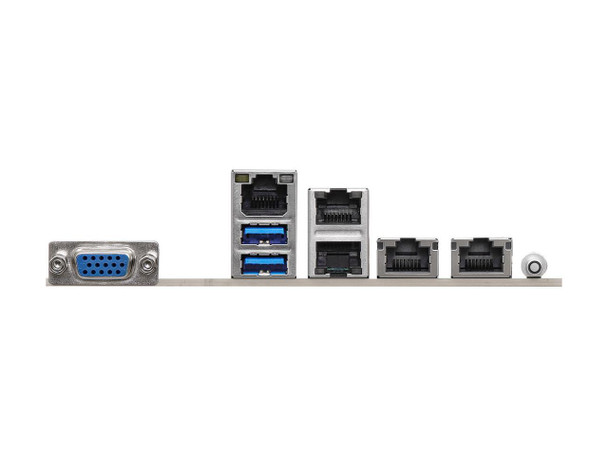

1 DB15 (VGA), 1 (15-pin) headerRear I/O
UID Button/LED
1 UID button w/ LED
Video Port
1 DB15 (VGA)
USB 3.2 Gen1 Port
2 Type-A (UBS3.2 Gen1)
RJ45
2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMIInternal Connector/Headers
Power Connector
1 (24-pin, ATX main power), 4 ( 8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1 (9-pin)
Fan Header
8 (6-pin)
TPM Header
1 (13-pin, SPI)
VROC header
1
HSBP
1
SMBus header
2
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Front Lan LED Connector
1
USB 3.2 (Gen1) Header
1 header (19-pin, 1 USB 3.2 Gen1 and 1 USB 2.0)
NMI Header
1LED Indicators
Standby PWR LED
1 (5VSB)
80 Debug Port LED
1
Fan Fail LED
8
BMC Heartbeat LED
1System BIOS
BIOS Type
AMI UEFI BIOS 512Mb SPI Flash ROM
BIOS Features
Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flashHardware Monitor
Temperature
CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSBEnvironment
Temperature
Operating temperature: 10^oC - 35^oC / Non-operating temperature: -40^oC - 70^oC
Humidity
Non-operating humidity: 20% - 90% (non-condensing)Item Dimension (L"xW"xH")
15 x 15 x 14

Weight
23 lbs

Warranty Information
36 Months
