ASRock B650M PG RIPTIDE WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX (268010)

This item is brand-new, factory sealed.

RODUCT BRIEF:

Supports AMD Ryzen 7000 Series Processors

12+2+1 Power Phase, Dr.MOS

Supports DDR5 6200MHz (OC)

2 PCIe 4.0 x16, 2 PCIe 3.0 x1

Graphics Output Options: HDMI, DisplayPort

Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

4 SATA3, 1 Blazing M.2 (PCIe Gen5x4)

1 Hyper M.2 (PCIe Gen4x4)

2 Rear USB 3.2 Gen2 (Type A + Type-C)

1 USB 3.2 Front Gen1 Type-C

6 USB 3.2 Gen1 (2 Rear, 4 Front)

8 USB 2.0 (4 Rear, 4 Front)

Dragon 2.5G LAN

802.11ax (WiFi 6E) + Bluetooth 5.2



Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of seas double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.


Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.


12+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. Unique Feature
Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
Ultrafast Gaming
- 2.5G LAN, 802.11ax Wi-Fi 6E Module
- ASRock Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker CPU
- Supports AMD Socket AM5 Ryzen^TM 7000 Series Processors Chipset
- AMD B650 Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC) ^Note
- Max. capacity of system memory: 128GB^Note
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Note: Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support Graphics
Integrated AMD RDNA^TM 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band^Note support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
Note: Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode^Note
- 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode^Note
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) ^Note
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Note: Supports NVMe SSD as boot disks
Supports AMD CrossFire^TM
15Mu Gold Contact in VGA PCIe Slot (PCIE1) Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode^Note
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode^Note
- 4 x SATA3 6.0 Gb/s Connectors
Note: Supports NVMe SSD as boot disks RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices ^Note
Note: Requires additional M.2 NVMe expansion cards to support RAID 10 USB
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-C (Front)
- 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Note: All USB ports support ESD Protection Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header^Note1
- 3 x Addressable LED Headers^Note2
- 1 x CPU Fan Connector (4-pin) ^Note3
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ^Note4
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) ^Note5
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt^TM AIC Connector (5-pin) (Supports ASRock Thunderbolt^TM 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
Note1: Supports in total up to 12V/3A, 36W LED Strip
Note2: Support in total up to 5V/3A, 15W LED Strip
Note3: CPU_FAN1 supports the fan power up to 1A (12W).
Note4: CPU_FAN2/WP supports the fan power up to 2A (24W).
Note5: CHA_FAN1 to 3/WP support the fan power up to 2A (24W).

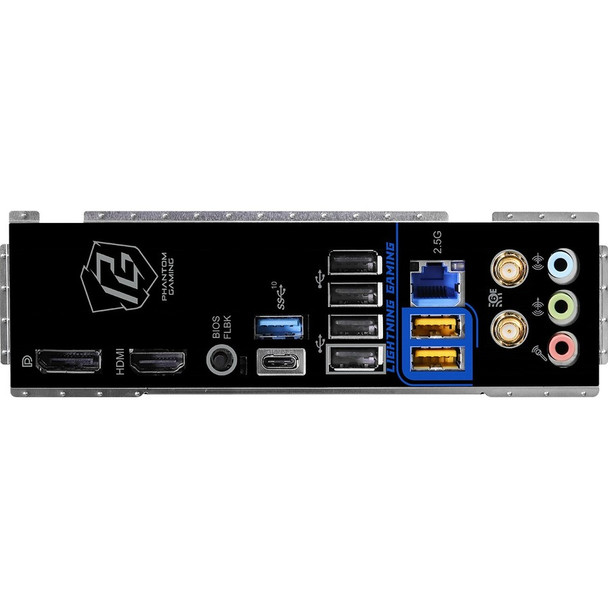

CPU_FAN2/WP and CHA_FAN1 to 3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
- 2 x USB 3.2 Gen1 Ports (USB32_23 are Gaming Ports.) Software and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC^Note
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Note: These utilities can be downloaded from ASRock Live Update and APP Shop. Accessories
- 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- 2oz Copper PCB OS
- Microsoft Windows 10 64-bit / 11 64-bit Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
