Asrock

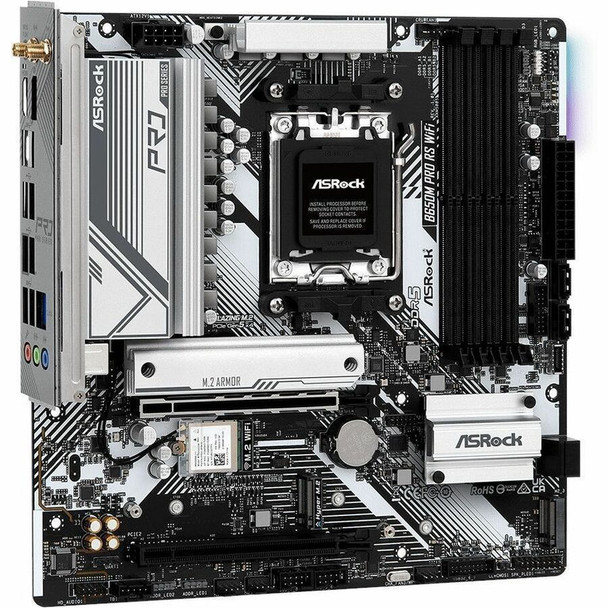

ASRock B650M Pro RS WiFi Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX (275056)
(No reviews yet)
Write a Review
- SKU:
- 20833839
- MPN:
- 275056
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/20/2025 05:11:07 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 3 | and pay only $162.77 each 162.77 |
| Buy 4 or above | and pay only $160.05 each 160.05 |
- Stock Update:
- 12/20/2025 05:11:07 PM PST
Description
This item is brand-new, factory sealed.
B650M Pro RS WiFiSupports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors
8+2+1 Power Phase, Dr.MOS
Supports DDR5 7200+ MHz (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
1 Hyper M.2 (PCIe Gen4 x4)
1 M.2 (PCIe Gen4 x2)
1 USB 3.2 Gen2 Type A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
Dragon 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth
PRO SERIES
RACE SPORT EDITION
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming with style and speed!
Extreme Overclocking Performance
DDR5 EXPO & XMP Support
Derived from the built for stable and reliable designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO/ Intel XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.Unique Feature
Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 8+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status CheckerCPU
- Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors
The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.Chipset
- AMD B650Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
- Max. capacity of system memory: 192GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Please refer to Memory Support List for more information.BIOS
- 256Mb AMI UEFI Legal BIOS with GUI supportGraphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120HzAudio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic AudioLAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority ControlWireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO
Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode
Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire
- 15mu Gold Contact in VGA PCIe Slot (PCIE1)
Supports NVMe SSD as boot disksStorage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
Supports NVMe SSD as boot disksRAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Requires additional M.2 NVMe expansion cards to support RAID 10USB
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-C (Front)
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
All USB ports support ESD ProtectionConnector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
Supports in total up to 12V/3A, 36W LED Strip.
Support in total up to 5V/3A, 15W LED Strip
CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2/WP supports the fan power up to 2A (24W).
CHA_FAN1-3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1-3/WP can auto detect if 3-pin or 4-pin fan is in use.Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
These utilities can be downloaded from ASRock Live Update and APP Shop.Accessories
- 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 SocketForm Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- 2oz Copper PCBOS
- Microsoft Windows 10 64-bit / 11 64-bitCertifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Features
Energy Efficiency Compliance:
Energy-related Products Directive Ready (ErP Ready)
Energy-using Products Directive Ready (EuP Ready)
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Specs
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| I/O Expansions | |
| PCI Express Standard |
|
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported | 7200 MHz |
| Memory Form Factor |
|
| Maximum Memory Supported | 192 GB |
| General Information | |
| Brand Name | ASRock |
| Package Type | Retail |
| Manufacturer Website Address | http://www.asrock.com |
| Marketing Information | Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming - with style and speed! Extreme Overclocking Performance | DDR5 EXPO & XMP Support Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel ® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. Blazing OC Tuner The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS. AMD PBO Technology PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC's performance by raising clock speeds based on the conditions inside your PC, AMD's processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the "go faster" decision as often as possible, please ensure system cooling is sufficient before enabling PBO. Intelligent Cooling Design | Aluminum Heatsink The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Fan-Tastic Tuning ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements. PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation. Optimized VRM Design | Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. 8+2+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. Optimized VRM Design | 6 Layer PCB The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. |
| Product Type | Gaming Desktop Motherboard |
| Product Name | PRO B650M Pro RS WiFi Gaming Desktop Motherboard |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | B650MPRORSWIFI |
| Product Model | B650M Pro RS WiFi |
| Product Series | PRO |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Multi GPU Supported | CrossFire |
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Model | B650 |
| Onboard Interfaces | |
| Total Number of Onboard USB Ports | 9 |
| Number of M.2 Interfaces | 3 |
| Number of Onboard USB 2.0 Ports | 4 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| VGA | Yes |
| HDMI Version | <li>2.1</li> |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| DisplayPort | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| HDMI | Yes |
| Number of USB 2.0 Ports | 4 |
| Total Number of USB Ports | 8 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | RDNA graphics |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
