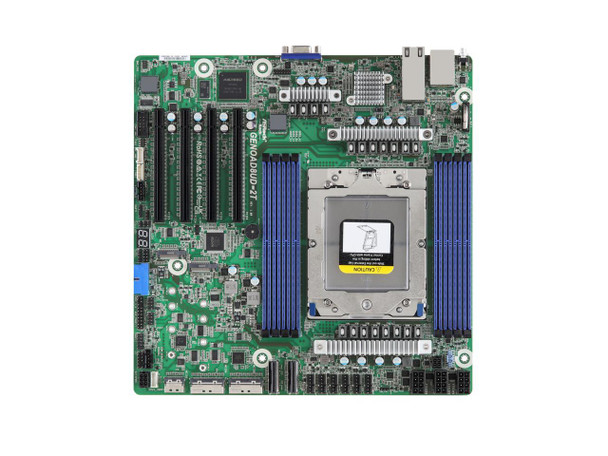

Asrock GENOAD8UD2T/X550 Motherboard GENOAD8UD2T/X550

This item is brand-new, factory sealed.

10.4" x 10.5"

Single Socket SP5 (LGA 6096), supports AMD EPYC 9004 (with AMD 3D V-Cache Technology) and 97x4 series processors

8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS

4 PCIe5.0 / CXL1.1 x16

2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8), 1 MCIO (PCIe5.0 x4)

Supports 2 M.2 (PCIe5.0 x4)

Up to 16 SATA 6Gb/s

2 RJ45 (10GbE) by Intel X550-AT2

Remote Management (IPMI)

Support ATX PSU or 12V DC-IN Processor System
CPU
Supports AMD EPYC^TM 9004 (with AMD 3D V-Cache^TM Technology) and 97x4 series processors
Socket
Single Socket SP5 (LGA 6096)
Chipset
System on Chip System Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM
RDIMM: 96GB (2R)
RDIMM-3DS: 512GB (2S8Rx4)
Max. DIMM Frequency
4800 MHz
Voltage
1.1V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 / CXL1.1 x16
SLOT5: PCIe5.0 / CXL1.1 x16
SLOT4: PCIe5.0 / CXL1.1 x16
SLOT3: PCIe5.0 / CXL1.1 x16 Other PCIe Expansion Connectors
M.2 slot
2 M-key (PCIe5.0 x4), support 2280/2260/2242/2230 form factor
Others
2 MCIO (PCIe5.0 x8)
2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
1 MCIO (PCIe5.0 x4) SATA/SAS Storage
PCH Built-in Storage
AMD EPYC^TM 9004 (16 SATA 6Gb/s):
2 MCIO Ethernet
Additional GbE Controller
Intel X550-AT2: 2 RJ45 (10GbE) Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN Graphics
Controller
ASPEED AST2600
VRAM

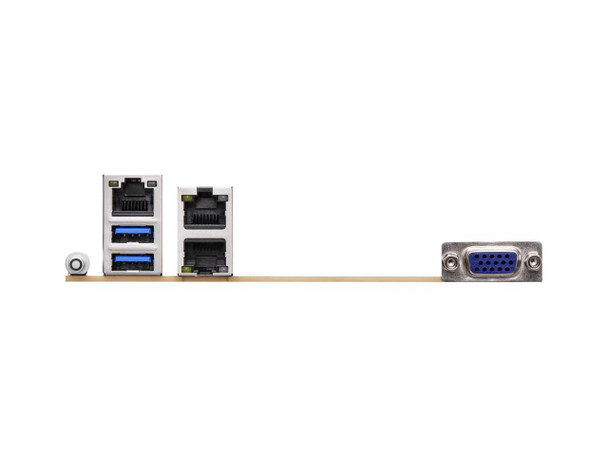

DDR4 512MB Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE)
1 dedicated IPMI Internal Connector/Headers
Power Connector
1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors
1 (6-pin) for HDD power
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1
Speaker Header
1 (4-pin)
Fan Header
6 (6-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
2
HSBP
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
NMI Header
1 LED Indicators
Standby PWR LED 5vsb
1 (5VSB)
Fan Fail LED
6
BMC heartbeat LED
1 System BIOS
BIOS Type
AMI UEFI BIOS, 256 Mb (32MB) SPI Flash ROM
BIOS Features
ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) Hardware Monitor
Temperature
CPU, MB, TR1 Temperature sensing
Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage
VCORE,VCCSA,VCCM,3V, 5V, 12V, +BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP Supported OS
OS
Microsoft Windows:
- Server 2019 (64bit)
- Server 2022 (64 bit)
Linux:
- RedHat Enterprise Linux Server 8.6 (64bit) / Server 8.7 (64bit) / Server 9.0 (64bit) / Server 9.1 (64bit)
- SUSE SLES 15.4(64 bit)
- UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit)
Hypervisor::
- VMWare ESXi/ 7.0 U3i / 8.0
- CITRIX Hypervisor 8.2.1 Environment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
14 x 12 x 3

Weight
4.00 lb

Warranty Information
3 Years
