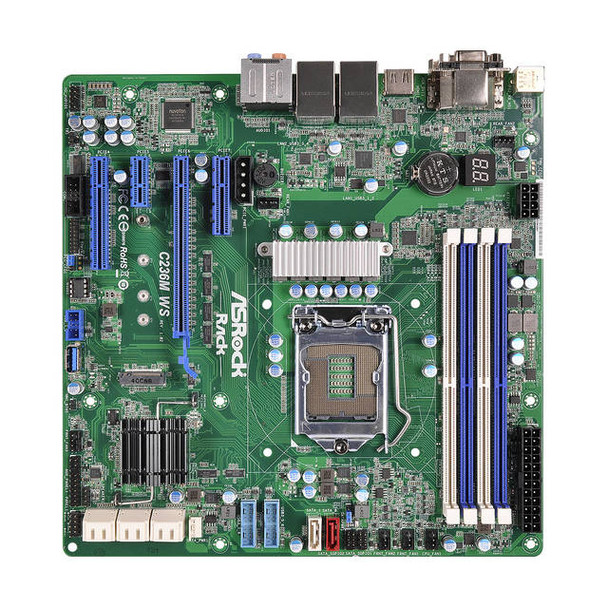

Asrock Rack C236MWS C236m Ws Lga1151/ Intel C236/ Ddr4/ Sata3usb3.0/ M.2/ A&2gbe/ Microatx Server Motherboard

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number: C236M WS
• CPU: LGA1151
  • Supports Intel Xeon E3-1200 v5 Series Processors
• Chipset: Intel C236
• Memory: 4x DDR4-2133/ 1866 DIMM Slots, Dual Channel, ECC
• Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 1x PCI-Express 3.0 x4 Slot, 1x PCI-Express 3.0 x1 Slot (share with M.2)
• Storage:
  • SATA: 8x SATA3 Ports
  • M.2: 1x M.2 Port
• Audio: Realtek ALC1150 High Definition Audio CODEC
• LAN: Intel i210 + Intel i219 Gigabit Ethernet Controllers
• Ports: 7x USB 3.0 Ports (4 rear, 2 via header, 1 Type A), 2x USB 2.0 Ports (via header), 1x PS/2 Keyboard/Mouse Port, 1x HDMI Port, 1x VGA Port, 1x DVI Port, 2x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 4x 8pin ATX Power Connectors
• Form Factor: MicroATX, 9.6 x 9.6 inch
