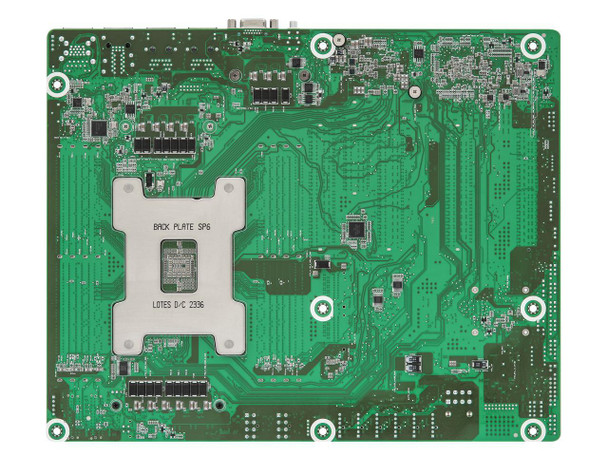

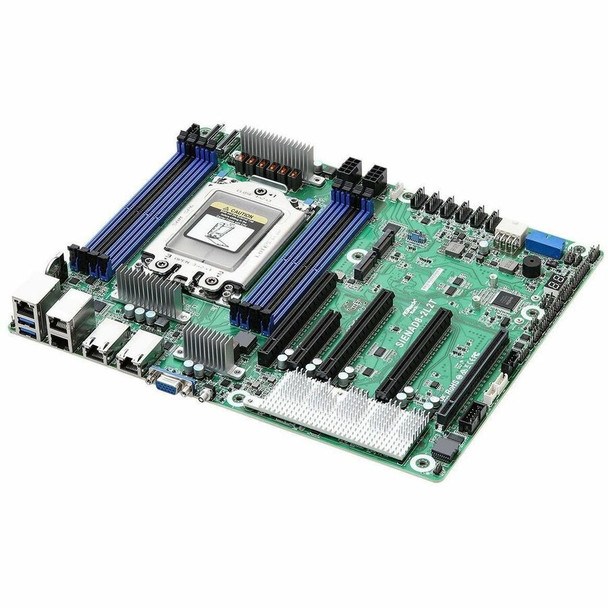

Asrock SIENAD82L2T Server Motherboard

This item is brand-new, factory sealed.

SIENAD8-2L2T
ATX (12" x 9.6")
Single Socket SP6 (LGA 4844), supports AMD EPYC 8004 series processors
8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
3 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 x16, 1 PCIe5.0 x8
2 MCIO (PCIe5.0 x8)
2 M.2 (PCIe5.0 x4)
2 RJ45 (10GbE) by Intel X710-AT2
2 RJ45 (1GbE) by Intel i210
Remote Management (IPMI)Physical Status
Form Factor
ATXProcessor System
CPU
Supports AMD EPYC 8004 series processors
Socket
Single Socket SP6 (LGA 4844)
Chipset
System on ChipSystem Memory
Supported DIMM Quantity
8 DIMM slots (2DPC/1DPC)
Supported Type
Supports DDR5 288-pin RDIMM
Max. Capacity per DIMM
96GB (2Rx4)
Max. DIMM Frequency
4800 MHz
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe5.0 / CXL1.1 x16
SLOT5: PCIe5.0 / CXL1.1 x16
SLOT3: PCIe5.0 x16
SLOT1: PCIe5.0 / CXL1.1 x16
PCIe x 8
SLOT6: PCIe5.0 x8Other PCIe Expansion Connectors
M.2 slot
2 M-key (PCIe5.0 x4), supports 22110/2280 form factor
Others
2 MCIO (PCIe5.0 x8)Ethernet
Additional GbE Controller
Intel X710-AT2: 2 RJ45 (10GbE)
Intel i210: 2 RJ45 (1GbE)Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLANGraphics
Controller
ASPEED AST2600
VRAM

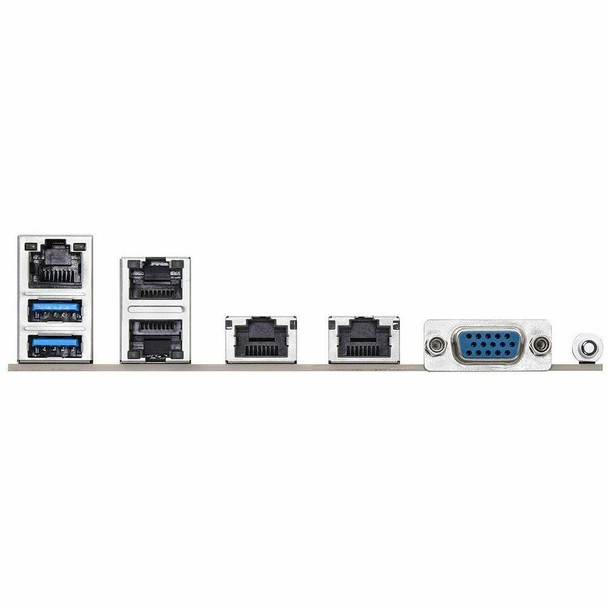

DDR4 512MBRear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMIInternal Connector/Headers
Power Connector
1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1
Speaker Header
1 (4-pin)
Buzzer
1
Fan Header
6 (6-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Others
1 header (9-pin, NCSI)
Front Lan LED Connector
1
USB 3.2 (Gen1) Header
1 header (19-pin, 2 USB3.2 Gen1)
NMI Header
1LED Indicators
Standby PWR LED
1 (5VSB)
80 Debug Port LED
1
Fan Fail LED
6
BMC heartbeat LED
1System BIOS
BIOS Type
AMI UEFI BIOS 256 Mb SPI Flash ROM
BIOS Features
ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)Hardware Monitor
Temperature
CPU, MB, Card side, TR1 Temperature sensing
Fan
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
VDDCR_CPU, VDDCR_SOC, VDDIO, VDD_18_S5, VDD_33_S5, VDD_11_S3, +3V, +5V, +12V, +BAT, +1V8SB, 3VSB, 5VSBEnvironment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)Item Dimension (L"xW"xH")
14 x 12 x 3

Weight
4 lbs

Warranty Information
36 M
