Asus ROG Crosshair VIII Impact Desktop Motherboard - AMD Chipset - Socket AM4 - Mini DTX (236969)

This item is brand-new, factory sealed.

AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors and up to two M.2 drives, USB 3.1 Gen2 and AMD StoreMI to maximize connectivity and speed

SO-DIMM.2: Bundled expansion card with heatsink allows two M.2 drives to be connected via an SO-DIMM interface and helps control SSD thermals for maximum performance

Comprehensive thermal design: An active VRM and chipset combo heatsink and full-sized aluminum backplate with heatpipe add mass to help absorb more heat

High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support and Intel Gigabit Ethernet with ASUS LANGuard supports GameFirst V technologies

Advanced water-cooling features: ROG water-cooling zone, water pump + header, and radiator headers enable easy integration with a custom water-cooling loop

5-Way Optimization: Automated system-wide tuning creates overclocking and cooling profiles tailor made for your rig

DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot and IMPACT Control Card IV , which adds BIOS FlashBack, Clr CMOS, Q-Code and FlexKey functionality

Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen. 2 addressable headers

Industry-leading ROG audio: SupremeFX S1220 and ESS SABRE9023P for enthusiast-grade audio performance, Sonic Studio III and DTS Sound Unbound


COMPACT DESIGN

Impact's unusual Mini-DTX form factor is a deliberate choice. Many Mini-ITX cases ship with enough space for a dual-slot graphics card, meaning there's typically unused space below the bottom PCIe slot space that could be utilized to mount more components or enable additional features. Being marginally taller than mini-ITX allows Impact to exploit this unused space, allowing ROG engineers to squeeze in features while still fitting a large proportion of mini-ITX PC cases.
CPU
AMD AM4 Socket 3rd and 2nd AMD Ryzen^TM/2nd and 1st Gen AMD Ryzen^TMwith Radeon^TMVega Graphics Processors
Chipset
AMD X570
Memory
3rd Gen AMD Ryzen^TM Processors
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen^TM Processors
4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen^TM with Radeon^TM Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
Double Capcity DRAM support depends on the DRAM models
Expansion Slots
3rd Gen AMD Ryzen^TM Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen^TM Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen^TM with Radeon^TM Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
Storage
3rd Gen AMD Ryzen^TM Processors :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen^TM/2nd and 1st Gen AMD Ryzen^TM with Radeon^TM Vega Graphics Processors :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Intel I211-AT
ASUS LAN Guard
ROG GameFirst Technology
Wireless Data Network
Intel Wi-Fi 6 AX200
Supports channel bandwidth: HT20/HT40/HT80/HT160
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed
Bluetooth
Bluetooth 5.0
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
3rd Gen AMD RyzenTM Processors :
2 x USB 3.2 Gen 2 port(s)
3rd Gen AMD RyzenTM Processors :
2 x USB 3.2 Gen 1 port(s)
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen^TM with Radeon^TM Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
2 x USB 2.0 port(s)
ROG Exclusive Features

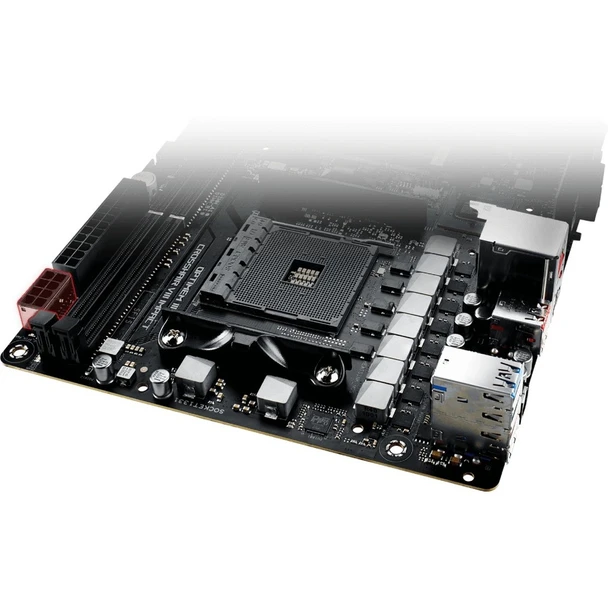

Extreme Engine Digi+ :
- Infineon TDA21472 Power Stage
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- OptiMem III
- Safe Boot button
- Slow Mode
- LN2 Mode
Extreme Tweaker
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
- Sonic Studio III + Sonic Studio Virtual Mixer
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Radar III
Special Features
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA :
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- USB BIOS Flashback
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- ASUS NODE: hardware control interface
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- Clear CMOS Button
- Reset Button
- Start Button
- ReTry button
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Back I/O Ports
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi Module
1 x Q-Code LED
1 x Reset Button
3 x LED-illuminated audio jacks
2 x USB 3.2 Gen 1 (up to 5Gbps) ports
6 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
Anti-surge LAN (RJ45) port
Internal I/O Ports
1 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
2 x Radiator Fan Headers
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories
Users manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG big sticker
2 x M.2 screw kit (short screw and mount)
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Panel cable
1 x ROG coaster(s)
1 x ROG Thank you card
1 x ROG SO-DIMM.2 with heatsinks
1 x 2-in-1 Rubber pad
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Manageability
WOL, PXE
Operating System
Windows 10 64-bit
Form Factor
Mini-DTX Form Factor
8 inch x 6.7 inch ( 20.3 cm x 17 cm ) Item Dimension (L"xW"xH")
11 x 11 x 4
Weight
4.08 LB
Warranty Information
3 years
