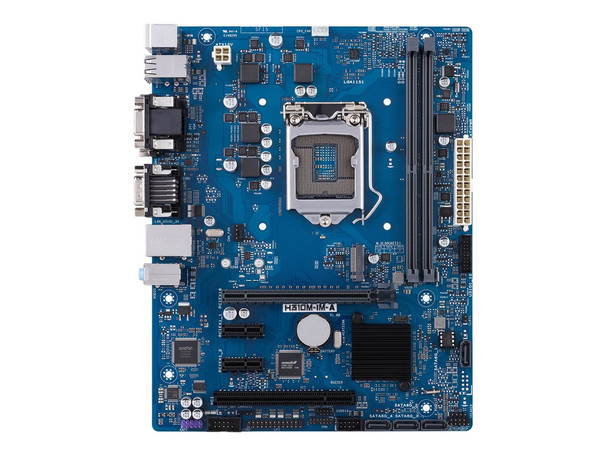

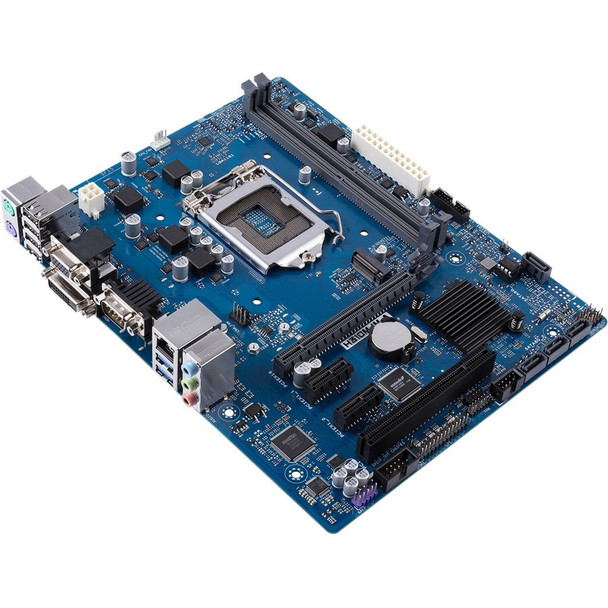

Asus H310M-IM-A Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Micro ATX (241751)

This item is brand-new, factory sealed.

8th/9th Generation IntelR? Core? i7/i5/i3 LGA 1151 Micro-ATX motherboard with H310 chipset, two U-DIMM slots, DVI-D & D-sub, M.2 slot, PCIe x16 and four SATA ports


Supports Intel9th/8th Gen Core processors (LGA1151) with the Intel H310 chipset

Two U-DIMM slots support up to 32GB DDR4 2400/2133 MHz SDRAM

Supports dual display configurations with multiple interfaces, including DVI-D & D-sub

Advanced I/O and connectivity features

Seven years of longevity with extended product life cycles

Wide temperature range endurance: 060C


ASUS H310M-IM-A is a Micro-ATX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, COM ports, four SATA ports and two M.2 sockets as well as rich expandability with a PCIe x16 slot. ASUS H310M-IM-A is an ideal choice for a wide range of embedded applications.



As the worlds No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.PROCESSOR SYSTEM
CPU
LGA1151 socket for the 9 ^th/8^th Generation Intel Core^TM i7/ i5/ i3/ Pentium / Celeron processors supports 14nm CPU.
MAX. SPEED
4.9GHz eight core
L2 Cache
12MB
CHIPSET
IntegratedMEMORY
Technology
DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory
Note: DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel8th Gen. 6-core or higher processors.
Max.
32GB
Socket
2 x U-DIMMDisplay
Controller
Intel UHD Graphics 630/610
DVI-D
1, Supports 1920 x 1200 at 60 Hz
D-sub
1, Supports 1920 x 1200 at 60 Hz
Multi Display
DVI-D+D-sub
Multi-VGA output support :DVI-D/D-sub ports
Supports up to 2 displays simultaneous under OSEXPANSION SLOT
M.2
1 x M.2 socket 3 with M key, type 2260/2280 storage devices support both SATA and PCIe x2 modeETHERNET
Speed
10/100/1000Mbps
Controller
1 x Realtek RTL8111H Gb Lan
Connector
1 x RJ-45AUDIO
Codec
Realtek ALC887-VD2 High Definition Audio CODEC
Connector
Line-out, Lin-in, Mic-inSTORAGE
SATA port
4x SATA Gen 3.0, up to 6Gb/sRear I/O
DVI-D
1
D-sub
1
USB3.2 Gen1 Type-A ports
2
USB 2.0/1.1 Type-A ports
4
Ethernet
1
COM port
1 (RS-232 port)
P/S2 keyboard
1
P/S2 mouse port
1Internal Connector
Serial Port
1 (RS-232 header)
USB3.2 Gen1 Type A header
1, support additional 2 x USB3.2 Gen1 connectors
USB2.0
1, support additional 2 x USB2.0 connectors
Chassis fan header
1
Chassis intrusion header
1
Front panel audio header (AAFP)
1
System panel header
1
Clear CMOS header
1
Speaker connector
1
Parallel connector
1
LPC Debug header
1
LPC TPM header
1
power connector
1 x 24-pin EATX Power connector
1 x 4-pin EATX 12V Power connectorWATCHDOG TIMER
SW
YesSecurity
TPM
LPC TPM headerPOWER
Power Type
ATX PowerOperating System
Microsoft Windows
Windows 10 (64bit ) / Win10 Iot Enterprise
Linux
Ubuntu, RedHat Enterprise, Fedora WorkstationENVIRONMENT
Operating Temperature
0 - 60^oC
Non-Operating Temperature
-40 - 85^oCCertification
Safety
CE, FCC
EMC
UL, CCCItem Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00 LB

Warranty Information
2 years
