Asus
Asus PN80 PN80-SYS715PXFD Desktop Computer - Intel Core i7 11th Gen i7-11700B 3.20 GHz - 16 GB RAM DDR4 SDRAM - 512 GB M.2 PCI Express NVMe 4.0 SSD - Mini PC - Black (263643)
- SKU:
- 19038713
- MPN:
- 263643
- Availability:
- Out of stock
- Stock Update:
- 04/29/2024 11:01:37 AM PST
- Stock Update:
- 04/29/2024 11:01:37 AM PST
Description
This item is brand-new, factory sealed.

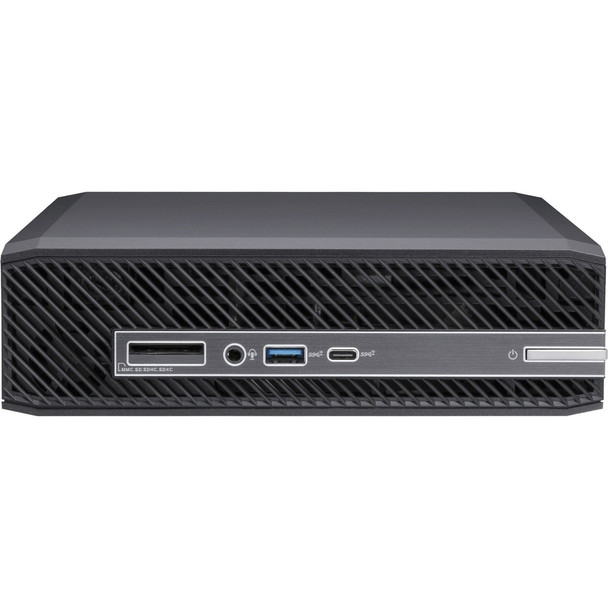

The all-around high-performance mini PC
The ASUS Mini PC PN80 series delivers amazing performance in a compact package. It houses up to two 2.5-inch storage drives plus two M.2 SSDs and offers Intel® Optane™ SSD H20 support. PN80 is powered by a desktop-grade Intel Core™ processor to give it the performance to tackle a wide range of tasks. An embedded power adapter complements its space-saving design, allowing users to place PN80 vertically or horizontally.
Stylish design
Measuring 20 x 20 x 6 cm, the compact 2.4-liter chassis of PN80 has a modern aesthetic that makes it perfect for offices. And at 2.5 kg, it can be mounted on a monitor via its integrated VESA mount. Specially designed vents ensure that it stays cool in any scenario.
Embedded power adapter
A built-in power adapter helps to keep any workstation clutter-free. PN80 can also be used vertically, standing on the desk or the floor.
Flexible storage
An optional multi-storage customizable design can accommodate up to two M.2 SSDs plus two 2.5-inch SSDs or HDDs for flexibility.
Stunning graphics
PN80 can support up to four 4K displays or two 8K display via HDMI, DisplayPort (via two Thunderbolt 4 ports) and optional DisplayPort or HDMI port.
-fast Thunderbolt™ 4
The two Thunderbolt™ 4 ports on ASUS Mini PC PN80 give you unrivaled versatility with ultrafast speeds. They support USB-C Power Delivery and provide up to 40 Gbps data-transfer speeds for high-performance peripherals. Combined with the Thunderbolt 4 ports and HDMI port and optional Display or HDMI port PN80 can support a maximum of four displays.
All the right connections
With a full complement of I/O ports, connecting your Mini PC PN80 to your studio peripherals, display devices and networks is easy. There is a Thunderbolt™ port, a USB 3.2 Gen 2 Type-C® port, a 2.5 Gbps Ethernet LAN port, the latest HDMI® 2.1 port, and an SDXC card reader that puts your connectivity leagues ahead of the pack. ASUS Mini PC PN80 also sipports Wi-Fi 6 or Wi-Fi 6E, so you can easily connect, create and share on the go.
Built for business
VGA, DisplayPort and COM enable compatibility with all types of monitors and legacy devices like barcode scanners and receipt printers. This gives PN80 the versatility to be deployed cross a wide range of uses, including digital signage, point-of-sale systems and intelligent vending machines.
Support Wi-Fi 6 & 6E
Wi-Fi 6E uses the newly-available 6GHz frequency band, a band that can only be used by Wi-Fi 6E devices. This means it will not compete for bandwidth with non-Wi-Fi 6E devices. The 6 GHz band provides up to seven extra 160 MHz channels, providing more bandwidth, more flexibility, and less congestion.
Security matters
A Kensington lock helps secure PN80 and a Torx® T5 screw prevents chassis intrusions when deployed in public spaces.
Package Contents:
- PN80-SYS715PXFD Desktop Computer
- 1.8m Power Cord
- Power Adapter
Features
- PN80-SYS715PXFD Desktop Computer
- 1.8m Power Cord
- Power Adapter
Environmentally Friendly:
Yes
Energy Star:
Yes
Features:
Security Slot
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Generation | 11th Gen |
| Processor Model | i7-11700B |
| Maximum Turbo Speed | 4.80 GHz |
| Processor Type | Core i7 |
| Processor Speed | 3.20 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Product Color | Black |
| Height | 2.4" |
| Color Family | Black |
| Width | 7.9" |
| Depth | 7.9" |
| Warranty | |
| Additional Warranty Information | <p>1 year manufacturer's limited warranty</p> |
| Limited Warranty | 1 Year |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | The all-around high-performance mini PC The ASUS Mini PC PN80 series delivers amazing performance in a compact package. It houses up to two 2.5-inch storage drives plus two M.2 SSDs and offers Intel ® Optane™ SSD H20 support. PN80 is powered by a desktop-grade Intel Core™ processor to give it the performance to tackle a wide range of tasks. An embedded power adapter complements its space-saving design, allowing users to place PN80 vertically or horizontally. Stylish design Measuring 20 x 20 x 6 cm, the compact 2.4-liter chassis of PN80 has a modern aesthetic that makes it perfect for offices. And at 2.5 kg, it can be mounted on a monitor via its integrated VESA mount. Specially designed vents ensure that it stays cool in any scenario. Embedded power adapter A built-in power adapter helps to keep any workstation clutter-free. PN80 can also be used vertically, standing on the desk or the floor. Flexible storage An optional multi-storage customizable design can accommodate up to two M.2 SSDs plus two 2.5-inch SSDs or HDDs for flexibility. Stunning graphics PN80 can support up to four 4K displays or two 8K display via HDMI, DisplayPort (via two Thunderbolt 4 ports) and optional DisplayPort or HDMI port. Lightning-fast Thunderbolt™ 4 The two Thunderbolt™ 4 ports on ASUS Mini PC PN80 give you unrivaled versatility with ultrafast speeds. They support USB-C Power Delivery and provide up to 40 Gbps data-transfer speeds for high-performance peripherals. Combined with the Thunderbolt 4 ports and HDMI port and optional Display or HDMI port PN80 can support a maximum of four displays. All the right connections With a full complement of I/O ports, connecting your Mini PC PN80 to your studio peripherals, display devices and networks is easy. There is a Thunderbolt™ port, a USB 3.2 Gen 2 Type-C® port, a 2.5 Gbps Ethernet LAN port, the latest HDMI® 2.1 port, and an SDXC card reader that puts your connectivity leagues ahead of the pack. ASUS Mini PC PN80 also sipports Wi-Fi 6 or Wi-Fi 6E, so you can easily connect, create and share on the go. Built for business VGA, DisplayPort and COM enable compatibility with all types of monitors and legacy devices like barcode scanners and receipt printers. This gives PN80 the versatility to be deployed cross a wide range of uses, including digital signage, point-of-sale systems and intelligent vending machines. Support Wi-Fi 6 & 6E Wi-Fi 6E uses the newly-available 6GHz frequency band, a band that can only be used by Wi-Fi 6E devices. This means it will not compete for bandwidth with non-Wi-Fi 6E devices. The 6 GHz band provides up to seven extra 160 MHz channels, providing more bandwidth, more flexibility, and less congestion. Security matters A Kensington lock helps secure PN80 and a Torx ® T5 screw prevents chassis intrusions when deployed in public spaces. |
| Product Type | Desktop Computer |
| Product Name | PN80-SYS715PXFD Desktop Computer |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN80-SYS715PXFD |
| Product Model | PN80-SYS715PXFD |
| Product Series | PN80 |
| Storage | |
| Total Solid State Drive Capacity | 512 GB |
| SSD Form Factor | M.2 |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| Interfaces/Ports | |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| USB Type-C (Front) | Yes |
| DisplayPort (Rear) | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| Total Number of USB Ports | 6 |
| Number Of Ethernet Ports | 1 |
| HDMI (Rear) | Yes |
| Number of DisplayPort Outputs (Rear) | 1 |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| LAN Model | I225V |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
