Asus Prime H310I-PLUS R2.0/CSM Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 (224288)

This item is brand-new, factory sealed.

Prime
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. Weve melded all the good stuff thats packed into the latest 8th Generation Intel Core processors with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center - server-grade IT management software.

ASUS Control Center
ASUS Control Center is centralized IT management software designed to provide a convenient, effective, secure and cost-saving solution for enterprises, small and medium-sized businesses, and data centers in any type of industry. With the help of ASUS Control Center, your organization will be equipped to achieve success in even the most challenging modern IT environments.

CPU
Intel Socket 1151 for 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Refer to www.asus.com for CPU support listChipset
Intel H310Memory
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
The maximum memory frequency supported varies by processor
DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 at 24 Hz / 25600 x 1600 at 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 at 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, InsiderExpansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)Storage
Intel H310 Chipset :
1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA and PCIE mode)
4 x SATA 6Gb/s port(s), gray,LAN
Realtek RTL8111H, 1 x Gigabit LANAudio
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Choose the chassis with HD audio module in front panel to support 8-channel audio output.USB Ports
Intel H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel H310 Chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 20 Gb/s data transfer speeds)Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
2 x USB 2.0
3 x Audio jack(s)Internal I/O Ports

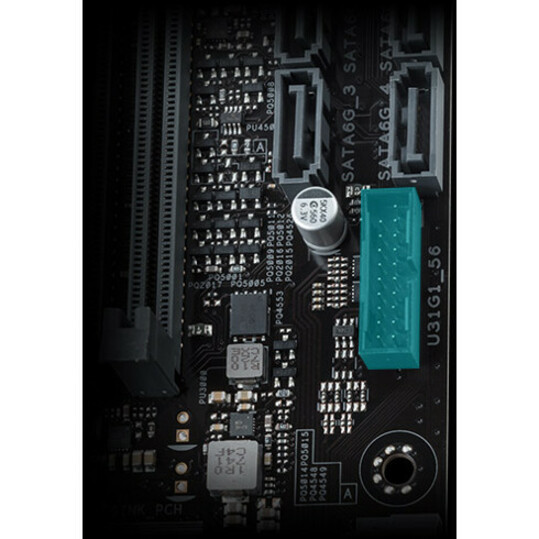

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA PCIE x4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x System panel connector
1 x Speaker connector
1x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB/CNVi modeAccessories
Users manual

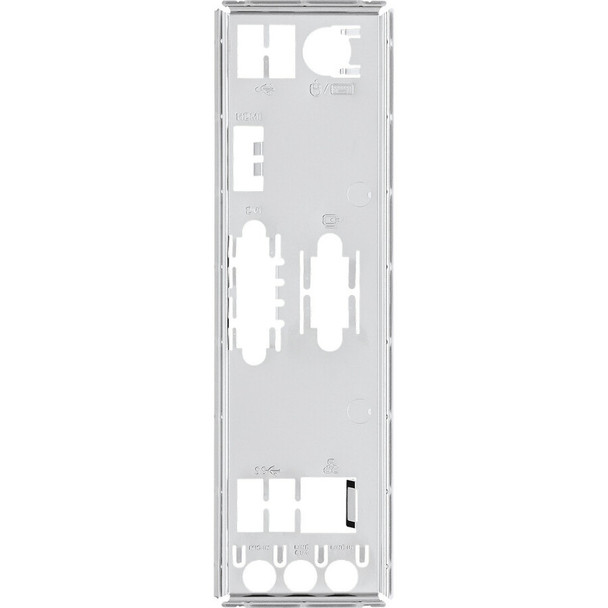

I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVDBIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory informationManageability
WOL by PME, PXEOperating System
Windows 10 64-bitForm Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )Item Dimension (L"xW"xH")
9 x 8 x 3

Weight
2 lbs

Warranty Information
3 years

Package Contents:

• Prime H310I-PLUS R2.0/CSM Desktop Motherboard
• User's Manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 2 x M.2 Screw Package
• 1 x Supporting DVD
