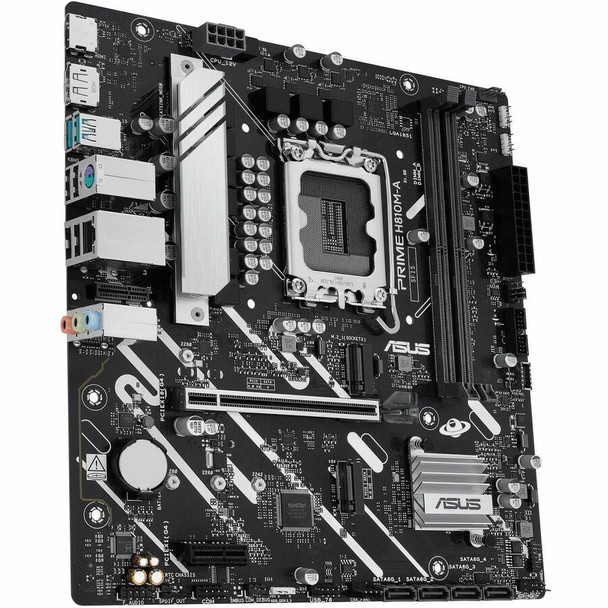

Asus Prime H810M-A-CSM Desktop Motherboard - Intel H810 Chipset - Socket LGA-1851 - Micro ATX (primeh810m-acsm)

This item is brand-new, factory sealed.

Prime
H810M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
6+1+1+1
phase digital power design
DIMM Fit / DIMM Fit Pro
for enhanced DDR5 performance
PCIe 4.0 slots
for graphics card
USB 10Gbps Type-A
for rapid data transmission
USB 5Gbps Type-C
for rapid data transmission
PCIe 4.0 M.2
for storage
EZ PC DIY
for easier build customization
1Gb Ethernet
for faster data transfers
Aura Sync
for full RGB lighting controlModel
PRIME H810M-A-CSMNews and Updates
Please visit our GLOBAL website to check and download the latest updates.CPU
Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset
Intel H810 ChipsetMemory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics
1 x DisplayPort
1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Supports 4K at 60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors or graphic cards resolution.Expansion Slots
Intel Core Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel H810 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s portsEthernet
1 x Intel 1Gb Ethernet port
ASUS LANGuard
With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.Wireless and Bluetooth
"V-M.2 slot only (Key E, CNVi and PCIe)
Wi-Fi module is sold separately."USB
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Vertical M.2 slot (Key E)
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo portInternal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System headerSpecial Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Addressable Gen 2 headersSoftware Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkeyBIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOSManageability
WOL by PME, PXEAccessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express activation key card
1 x Quick start guideOperating System
Windows 11 (22H2 and later), Windows 10 64-bit (21H2 and later)
