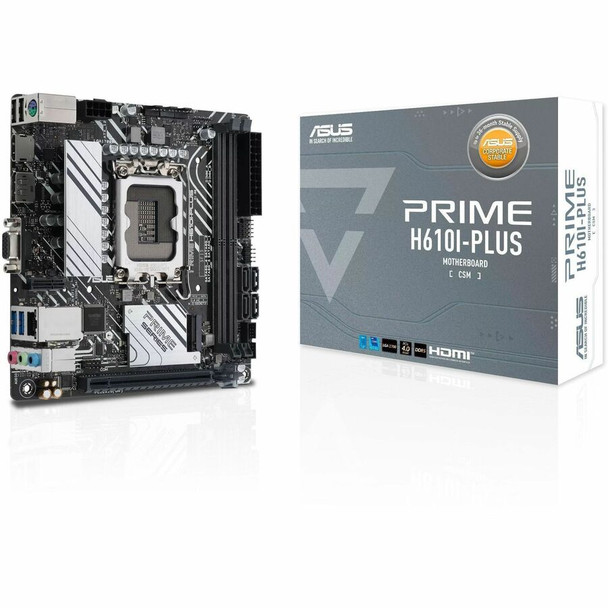

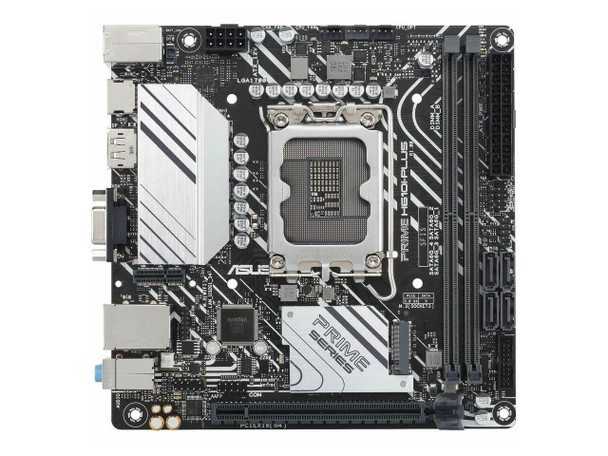

Asus Prime H610I-PLUS-CSM Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Mini ITX (primeh610i-plus-csm)

This item is brand-new, factory sealed.

PRIME H610I-PLUS-CSM

Intel LGA 1700 socket: Ready for 14th, 13th & 12th Gen Intel Core processors.

Enhanced power solution: 5+1+1 DrMOS power stages for stable power delivery.

Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert.

Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1 ports.

5X Protection III: Multiple hardware safeguards for all-round protection.

Remote management Software: ASUS Control Center Express (ACCE) for easier IT endpoint managementCPU
Intel Socket LGA1700 for 13th Gen Intel Core^TM
Processors and 12th Gen Intel Core^TM, Pentium Gold and Celeron Processors^note1
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0^note2
Note1: Refer to www.asus.com for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset
Intel H610 ChipsetMemory
2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory^note
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Note: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Note: Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics
1 x DisplayPort^note2
1 x VGA port
1 x HDMI^TM port^note3
Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Note3: Supports 4K at 60Hz as specified in HDMI 2.1.Expansion Slots
Intel 13th and 12th Gen Processors
1 x PCIe 4.0 x16 slotStorage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s portsEthernet
1 x Intel 1Gb Ethernet
ASUS LANGuardWireless and Bluetooth
M.2 slot only (Key E, CNVi and PCIe) ^note
Note: Wi-Fi module is sold separately.USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 portsAudio
Realtek 7.1 Surround Sound High Definition Audio CODEC^note
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI^TM port
1 x V-M.2 slot (Key E)
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo portInternal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Mono-out header(with Amp IC)
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel headerSpecial Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink designSoftware Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ ModeBIOS
128 Mb Flash ROM, UEFI AMI BIOSManageability
WOL by PME, PXEAccessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x Vertical M.2 Key E bracket set
Documentation
1 x User guideOperating System
Windows 11 64-bit, Windows 10 64-bitForm Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )Item Dimension (L inchxW inchxH inch)
9 x 8 x 3

Weight
2.00lb

Warranty Information
3 Years
