Asus

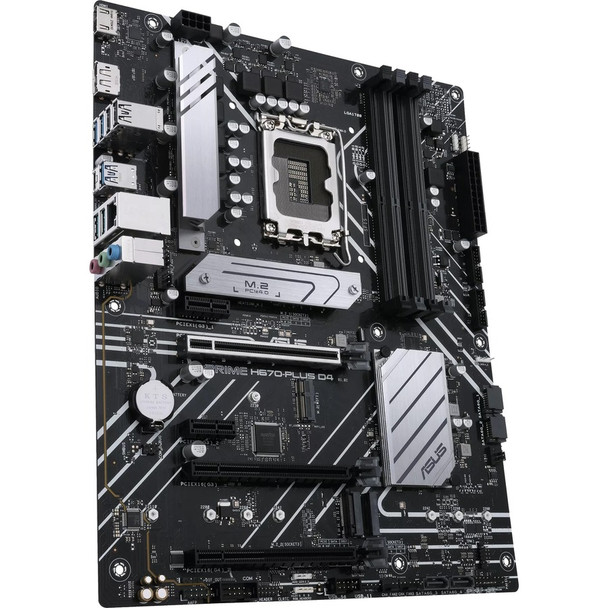

Asus Prime H670-PLUS D4 Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX (primeh670-plusd4)

(No reviews yet) Write a Review
SKU:
18854159
MPN:
primeh670-plusd4
Availability:
Out of stock
Stock Update:
04/30/2025 05:55:06 PM PST
  • Alternate-Image9
  • Alternate-Image8
  • Alternate-Image7
  • Alternate-Image6
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image13
  • Alternate-Image12
  • Alternate-Image11
  • Alternate-Image10
  • Alternate-Image1
  • Main

Out of stock

Stock Update:
04/30/2025 05:55:06 PM PST

Description



This item is brand-new, factory sealed.

Intel H670 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2 Type-C, Realtek 2.5Gb Ethernet, Thunderbolt 4 header support, DisplayPort, HDMI, Aura Sync

Intel LGA 1700 socket: Ready for 12th Gen Intel processors

Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet and Thunderbolt 4 support

Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability


ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H670 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.


FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.


All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron ProcessorsNote1
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0Note2
Note1: Refer to www.asus.com for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
H670
Intel H670 Chipset Memory
4 x DIMM, Max. 128GB, DDR4
5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memoryNote"
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Note: Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics
1 x DisplayPortNote2
1 x HDMI portNote3
Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Note3: Supports 4K at 60Hz as specified in HDMI 2.1.
Note4: VGA resolution support depends on processors resolution. Expansion Slots
Intel 12th Gen ProcessorsNote1

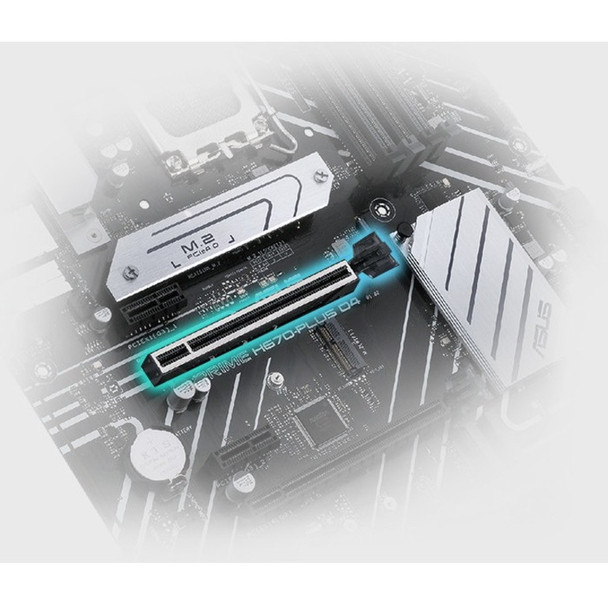

1 x PCIe 4.0 x16 slot
Intel H670 ChipsetNote2
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Note1: Please check PCIe bifurcation table in support site.
Note2: Supports Intel Optane Memory H Series on PCH-attached PCIe slot. Storage
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel H670 ChipsetNote2
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes)
4 x SATA 6Gb/s ports
Note: Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Note2: Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. Ethernet
ASUS LANGuard
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless and Bluetooth
M.2 slot only (Key E, CNVi and PCIe) Note
Note: Wi-Fi module is sold separately. USB
Rear USB:Total 8 ports
Rear USB (Total 8 ports)

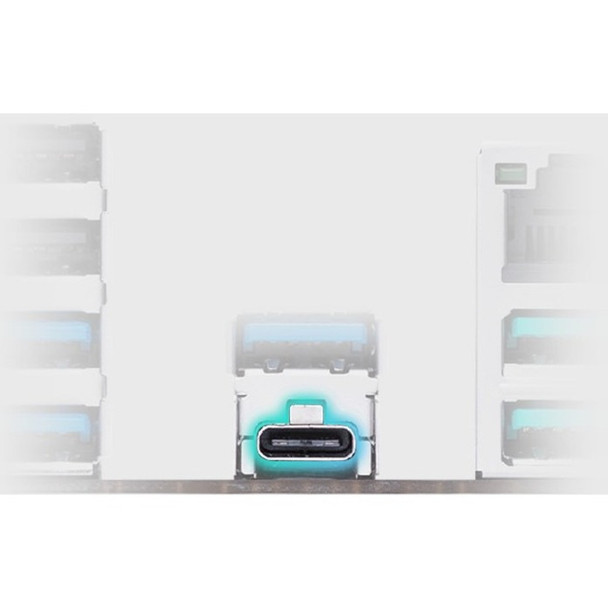

1 x USB 3.2 Gen 2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 7 ports
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port Audio
Realtek 7.1 Surround Sound High Definition Audio CODECNote
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports
1 x USB 3.2 Gen 2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PME, PXE Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x User guide Form Factor
ATX
30.5cm x 24.4cmItem Dimension (L inchxW inchxH inch)
13 x 11 x 3

Weight
4.00 lb

Warranty Information
3 Years

Package Contents:
  • Prime H670-PLUS D4 Desktop Motherboard
  • 2 x SATA 6Gb/s Cables
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 2 x M.2 SSD Screw Packages
  • 1 x M.2 Key E Screw Package
  • 1 x Support DVD
  • 1 x User Guide

Features

Package Contents:
  • Prime H670-PLUS D4 Desktop Motherboard
  • 2 x SATA 6Gb/s Cables
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 2 x M.2 SSD Screw Packages
  • 1 x M.2 Key E Screw Package
  • 1 x Support DVD
  • 1 x User Guide



Environmentally Friendly:
Yes



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Specs

Physical Characteristics
Form FactorATX
Width12"
Depth9.6"
Warranty
Limited Warranty3 Year
I/O Expansions
Number of PCI Express x1 Slots2
Total Number of Expansion Slots4
Number of PCI Express x16 Slots2
Total Number of PCI Express Slots4
Memory
Memory TechnologyDDR4 SDRAM
Number of Memory Slots4
Memory Speed Supported
  • 5000 MHz
  • 4800 MHz
  • 3866 MHz
  • 4600 MHz
  • 4400 MHz
  • 4266 MHz
  • 5066 MHz
  • 4000 MHz
  • 3733 MHz
  • 3600 MHz
  • 3466 MHz
  • 3400 MHz
  • 3333 MHz
  • 3200 MHz
  • 3000 MHz
  • 2933 MHz
  • 2800 MHz
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz
Memory Form Factor
  • DIMM
  • UDIMM
Maximum Memory Supported128 GB
Intel Optane Memory ReadyYes
General Information
Brand NameAsus
Manufacturer Website Addresshttp://usa.asus.com
Marketing InformationIntel® H670 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2 Type-C®, Realtek 2.5Gb Ethernet, Thunderbolt™ 4 header support, DisplayPort, HDMI®, Aura Sync
Intel
® LGA 1700 socket: Ready for 12th Gen Intel® processors
Ultrafast connectivity:
PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet and Thunderbolt™ 4 support
Comprehensive cooling:
VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS OptiMem:
Careful routing of traces and vias to preserve signal integrity for improved memory stability
PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H670 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control l
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
MemTest 86
This memory testing software is pre-installed into the UEFI BIOS and lets you pinpoint memory issues with just one click, without the need for a USB stick or going into the OS. It stores the memory report in the BIOS archives for reference.
Prediction
AI Overclocking monitors system vitals such as temperature, fan speed, and power draw to estimate overclocking performance.
AI Overclocking Guide
Refer to the guide offered in the UEFI BIOS for step-by-step instructions detailing how to use AI Overclocking.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
FlexKey
Remap the reset button on the chassis to toggle Aura lighting, activate the DirectKey to go straight to the UEFI BIOS, or reset the system.
COOLING
Prime H670 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

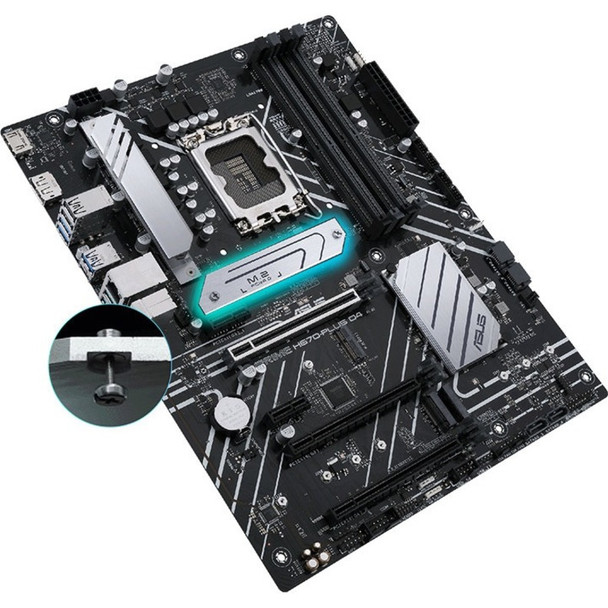

M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
Product TypeDesktop Motherboard
Product NamePrime H670-PLUS D4 Desktop Motherboard
ManufacturerASUS Computer International
Manufacturer Part NumberPRIME H670-PLUS D4
Product ModelH670-PLUS D4
Product LinePrime
Processor & Chipset
Chipset ManufacturerIntel
Processor Generation Supported12th Gen
Processor Supported
  • Pentium Gold
  • Celeron
  • Core i5
  • Core i7
  • Core i9
  • Core i3
Total Processor Supported1
Processor SocketSocket LGA-1700
Chipset ModelH670
Onboard Interfaces
Number of SATA Interfaces4
Total Number of Onboard USB Ports7
Number of Onboard USB 3.2 Ports4
Number of M.2 Interfaces3
Number of Onboard USB 2.0 Ports3
Interfaces/Ports
Number of USB 3.2 Gen 2 Type-A Ports2
DisplayPortYes
Number of USB 3.2 Ports1
HDMIYes
Number of USB 2.0 Ports2
Total Number of USB Ports8
Number of USB 3.2 Gen 1 Ports3
Number of Network (RJ-45) Ports1
I/O Controller
RAID SupportedYes
Controller TypeSerial ATA/600
Intel RSTYes
RAID Levels
  • 0
  • 1
  • 5
  • 10
Video
Onboard VideoCPU Dependent Video
Network & Communication
2.5Gigabit EthernetYes
Audio
Audio Channels7.1

View AllClose

Warranty Information

All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
