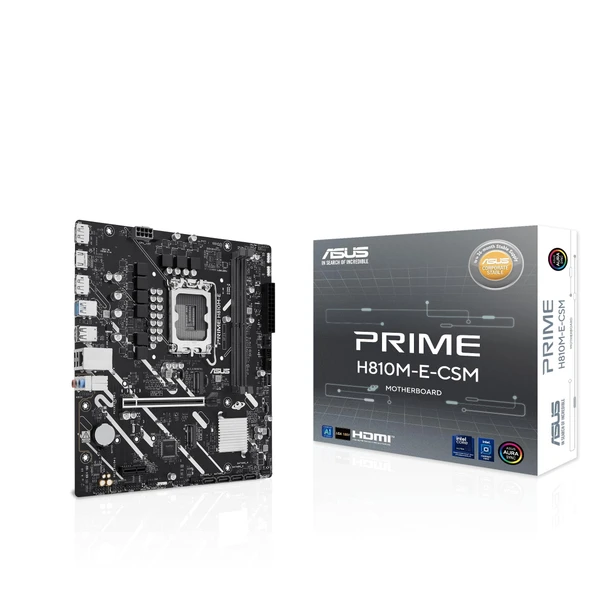

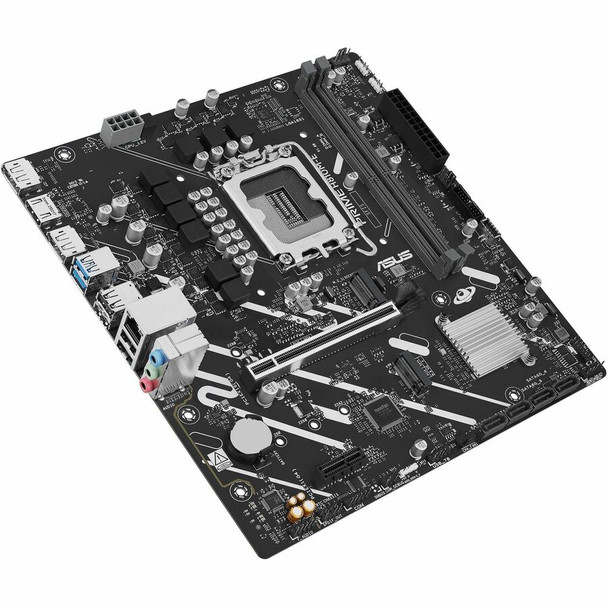

Asus Prime H810M-E-CSM Desktop Motherboard - Intel H810 Chipset - Socket LGA-1851 - Micro ATX (primeh810m-e-csm)
(No reviews yet)
Write a Review
- SKU:
- 21500419
- MPN:
- primeh810m-e-csm
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/13/2026 04:57:26 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $130.31 each 130.31 |
| Buy 3 - 4 | and pay only $128.07 each 128.07 |
| Buy 5 or above | and pay only $125.99 each 125.99 |
- Stock Update:
- 06/13/2026 04:57:26 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
PRIME H810M-E-CSMOptimized for Intel Core Ultra Processors (Series 2): Built on the Intel H810 chipset with LGA1700 socket, delivering stable performance and compatibility for next-gen AI PC applications.
Commercial-Grade Reliability with CSM Support: ASUS Corporate Stable Model (CSM) provides extended product lifecycle, EOL notice, and IT-focused features for managed commercial deployments.
ASUS Control Center Express (ACCE): Streamline IT management with real-time monitoring, remote BIOS updates, and asset trackingideal for SMBs and enterprise fleets.
Essential Connectivity and Expansion: Features PCIe 4.0, DDR5 support, M.2 slot, HDMI, D-Sub, USB 3.2 Gen 1, and Realtek 1Gb LAN for modern commercial needs.
Advanced Cooling and Power Design: Comprehensive cooling with VRM and PCH heatsinks, plus robust 6+1+1 power stages ensure stable power delivery and thermal efficiency.
AI PC-Ready Platform: Designed to meet the demands of AI-enhanced commercial desktops with optimized performance, cooling, and connectivity for modern workloads.CPU
Support Intel CoreTM Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0note2
Note1: Refer to https://www.asus.com/support/download-center/ for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset
Intel H810 ChipsetMemory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) note1
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Note1: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Note2: Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics
2 x DisplayPortnote2
1 x HDMITM portnote3
Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Note3: Supports 4K at 60Hz as specified in HDMI 2.1.
Note4: VGA resolution support depends on processors or graphic cards resolution.Expansion Slots
Intel CoreTM Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel H810 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s portsEthernet
1 x Realtek 1Gb Ethernet port
ASUS LANGuardUSB
Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C)note1
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Note1: USB Type-C power delivery output: max. 5V/3A
Note2: USB_E1 port, USB_E2 port and USB_E3 port share the bandwidth.Audio
Realtek 7.1 Surround Sound High Definition Audio CODECnote
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacksInternal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System headerSpecial Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Dual DIMM clips
Aura Sync
- Addressable RGB Gen 2 headersSoftware Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
ASUS DriverHub
- ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
DIMM FIT Pro
Note: For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOSManageability
WOL by PME, PXEAccessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x M.2 anchor package
Documentation
1 x Quick start guide
1 x ACC Express activation key cardOperating System
Windows 11 (22H2 and later), Windows 10 64-bit (21H2 and later)Form Factor
micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)Item Dimension (L inchxW inchxH inch)
11 x 11 x 3
Weight
3.00lb
Warranty Information
3 Years
Features
Package Contents:
Restriction of Hazardous Substances (RoHS)
Intel
- Prime H810M-E-CSM Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O shield
- 1 x M.2 anchor package
- 1 x Quick start guide
- 1 x ACC Express activation key card
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Brand Compatibility:
Intel
Specs
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 8.7" |
| Warranty | |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 2 |
| PCI Express Standard | PCI Express 4.0 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 2 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 2 |
| Memory Speed Supported | 6400 MHz |
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Error Checking | ECC |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Prime H810M-E-CSM ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. ASUS Corporate Stable Model ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software. ASUS Control Center Express ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs. Optimize IT endpoint management Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely. Automate IT maintenance Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility. Securely manage all of endpoints Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices. Digital Power Design Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME H810M-E-CSM features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use. |
| Product Type | Desktop Motherboard |
| Product Name | Prime H810M-E-CSM Desktop Motherboard |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME H810M-E-CSM |
| Product Model | H810M-E-CSM |
| Product Line | Prime |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Chipset Model | H810 |
| Technical Information | |
| AI-powered | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 5 |
| Number of M.2 Interfaces | 2 |
| Onboard S/PDIF Header | Yes |
| Number of Onboard USB 2.0 Ports | 2 |
| Interfaces/Ports | |
| VGA | Yes |
| HDMI Version | <li>2.1</li> |
| DisplayPort | Yes |
| HDMI | Yes |
| Total Number of USB Ports | 6 |
| Number of Network (RJ-45) Ports | 1 |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
