Asus Prime Z590-P WIFI Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX (primez590-pwifi)
(No reviews yet)
Write a Review
- SKU:
- 18307569
- MPN:
- primez590-pwifi
- Availability:
- Out of stock
- Stock Update:
- 12/09/2025 10:12:34 AM PST
- Stock Update:
- 12/09/2025 10:12:34 AM PST
Description
This item is brand-new, factory sealed.
Intel Z590 (LGA 1200) ATX motherboard with PCIe 4.0, three M.2 slots, 11 DrMOS power stages, HDMI, DisplayPort, SATA 6 Gbps, Intel WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 support, and Aura Sync RGB lightingIntel LGA 1200 socket: Ready for 11th and 10th gen Intel Core processors

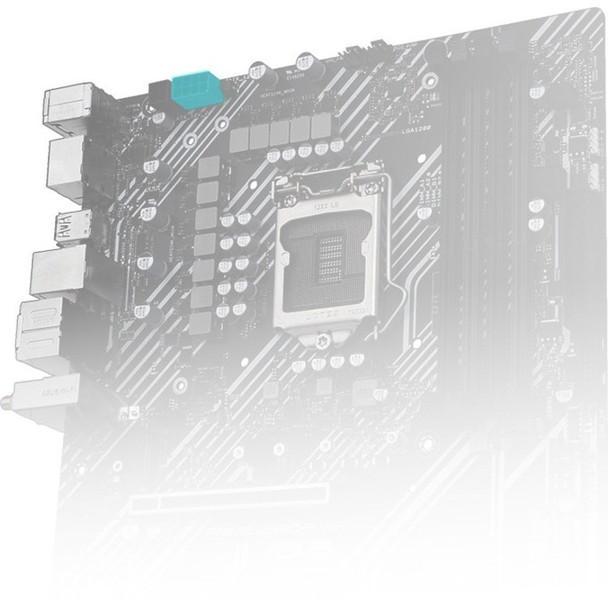

Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4

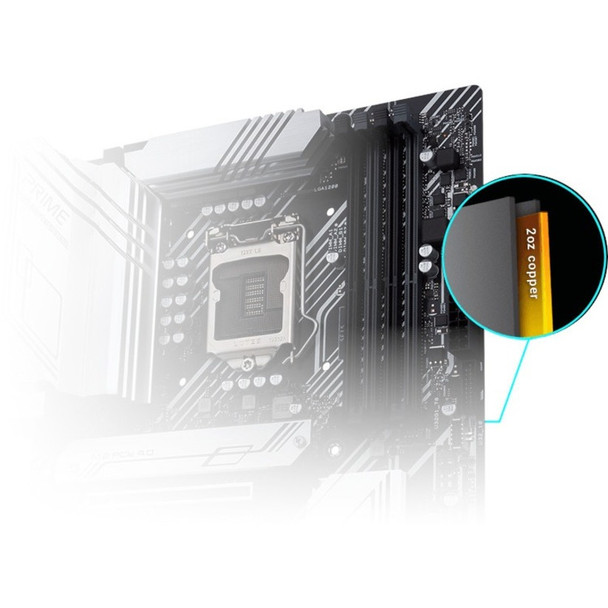

ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: Intel WiFi 6, PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support
Prime
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.CPU
Intel Socket LGA1200 for 11th Gen Intel Core Processors and 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset
Z590Memory
5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.Graphics
1 x DP1.4
Graphics specifications may vary between CPU types.
Intel 11th and 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 at 60Hz. Please refer to www.intel.com for any updates.
Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K at 60Hz, others will only support HDMI 1.4 with max. resolution of 4K at 30Hz. Please refer to www.intel.com for any updates.Expansion Slots
1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel 11th and 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
- Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Supports PCIe bandwidth bifurcation for RAID on CPU function.Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 and SATA modes)
4 x SATA 6Gb/s ports
Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuardWireless and Bluetooth
Intel Wi-Fi 6USB
Rear USB:Total 6 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layersBack Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo portIntrernal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt headerSpecial Features
Y
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+

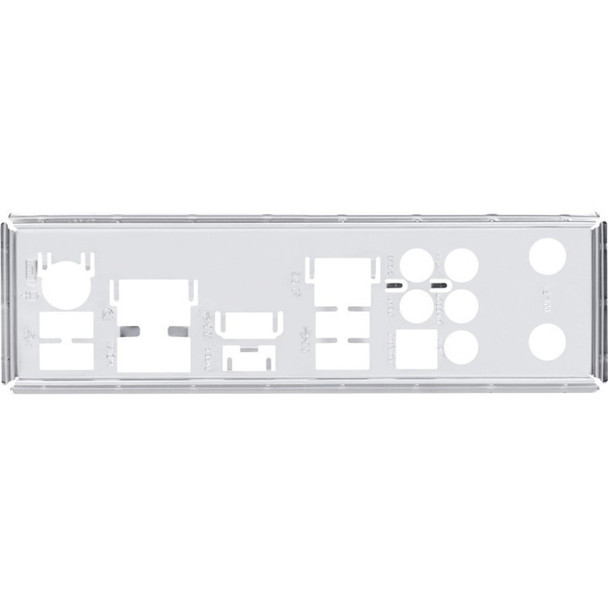

- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headersSoftware Features
ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ ModeBIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOSManageability
WOL by PME, PXEAccessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User manualItem Dimension (L"xW"xH")
14 x 11 x 3
Weight
4 lbs
Warranty Information
3 Years
Features
Country of Origin:
China
China
Specs
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.2" |
| Warranty | |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 2 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 4 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Intel Optane Memory Ready | Yes |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Intel® Z590 (LGA 1200) ATX motherboard with PCIe® 4.0, three M.2 slots, 11 DrMOS power stages, HDMI®, DisplayPort™, SATA 6 Gbps, Intel® WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Next-gen connectivity: Intel® WiFi 6, PCIe® 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support PRIME ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Search Function Quickly and easily find the option or setting you need. ASUS User Profile Port configuration settings between different BIOS versions or share them with friends. Cool to the Core Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 Heatsink An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. Build on a Solid Foundation Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 11th Generation Intel® Core™ processors. Prime Z590-P WIFI is geared to cater to the demands of these high-core count CPUs. ProCool Connector Proprietary connector augment the motherboard's link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector. |
| Product Type | Desktop Motherboard |
| Product Name | Prime Z590-P WIFI Desktop Motherboard |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME Z590-P WIFI |
| Product Model | Z590-P WIFI |
| Product Line | Prime |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Model | Z590 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 3.2 Ports | 5 |
| Number of M.2 Interfaces | 3 |
| Number of Onboard USB 2.0 Ports | 4 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| DisplayPort | Yes |
| Number of USB 3.2 Ports | 1 |
| HDMI | Yes |
| Number of USB 2.0 Ports | 2 |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
