Asus Pro Pro WS W880-ACE SE Gaming Desktop Motherboard - Intel W880 Chipset - Socket LGA-1851 - ATX (299762)

This item is brand-new, factory sealed.

Intel W880 LGA1851 ATX workstation motherboard with PCIe 5.0, DDR5 support, Dual 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gbps front-panel connector and onboard BMC.

Ready for advanced AI PCs : Designed for the future of AI computing, with the placement and connectivity needed for demanding AI applications

Intel LGA1851 socket : Ready for Intel Core Ultra 9, 7, and 5 desktop processors

Robust performance :?8+1+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors

Future-proofed connectivity : Thunderbolt 4, Dual 2.5Gb Ethernet, two PCIe?5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header

Exclusive AI technologies : AI Cooling II and AI Advisor

DIY-friendly design :?M.2 Q-Latch, BIOS?FlashBack, Q-Connector

Server-grade IPMI remote management and onboard BMC : Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management


Pro WS W880-

ACE SE

The Pro WS W880-ACE SE empowers workstation users of all levels by maximizing the performance of the latest Intel Core Ultra Processor (Series 2) processors with 8+1+2+2 team power stages, DDR5 slots, PCIe 5.0 and -fast connectivity including Thunderbolt 4 port, dual 2.5Gb Ethernet.

The workstation motherboard is engineered to support dual graphics cards, making it an ideal choice for content creation, AI and deep learning, and IT management.News and Updates
Please visit our GLOBAL website to check and download the latest updates.CPU
Supports Intel Core^TM Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0^note2
Note1: Refer to https://www.asus.com/support/download-center/ for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset
Intel W880 ChipsetMemory
4 x DIMM slots, max. 256GB, DDR5
Support up to 9066+MT/s (OC), ECC and Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM) ^note1
Dual channel memory architecture
Supports DIMM Fit
Supports DIMM Flex
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Note1: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Note2: Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics
1 x HDMI^TM port^note2
1 x Intel Thunderbolt^TM 4 port (USB Type-C) support DisplayPort and Thunderbolt^TM video outputs^note3
1 x VGA port from AST2600
Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Note2: Supports 4K at 60Hz as specified in HDMI 2.1.
Note3: In Thunderbolt^TM 4 mode, supports up to 8K at 60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
Note4: VGA resolution support depends on processors or graphic cards resolution.
Note6: While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.Expansion Slots
Intel Core^TM Ultra Processors (Series 2) ^note1
2 x PCIe 5.0 x16 slots^note3 (supports x16 or x8/x8 modes) ^note2
Intel W880 Chipset^note2
1 x PCIe 4.0 x16 slot (supports x4 mode) ^note2
Note1: Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Note2: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.Storage
Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports^note1
Intel Core^TM Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe4.0 x4 mode)
Intel W880 Chipset^note2
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SlimSAS_1 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately. ^note2
4 x SATA 6Gb/s ports
Note1: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Note2: SlimSAS connector connected to a U.2 device via an adapter cable does not support VMD/RST.Ethernet
2 x Intel 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet dedicated for AST2600USB
Rear USB (Total 8 ports)
1 x Thunderbolt^TM 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers supports 4 additional USB 2.0 portsAudio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"
Audio Features
- Audio Shielding

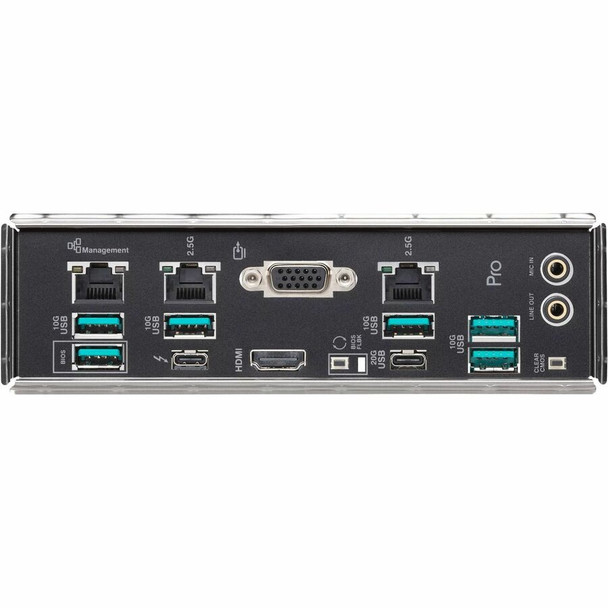

- Premium audio capacitorsBack Panel I/O Ports
1 x Thunderbolt^TM 4 USB Type-C port
1 x USB 20Gbps port (1 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
1 x HDMI^TM port
2 x Intel 2.5Gb Ethernet port
1 x Realtek 1Gb Ethernet dedicated for AST2600
1 x VGA port from AST2600
2 x Audio jacks
1 x BIOS FlashBack^TM button
1 x Clear CMOS buttonInternal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
5 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS connector
USB
1 x USB 20Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 header supports 4 additional USB 2.0 ports
Miscellaneous
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
1 x Thunderbolt^TM (USB4) header
1 x SPI TPM header (14-1 pin)Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design

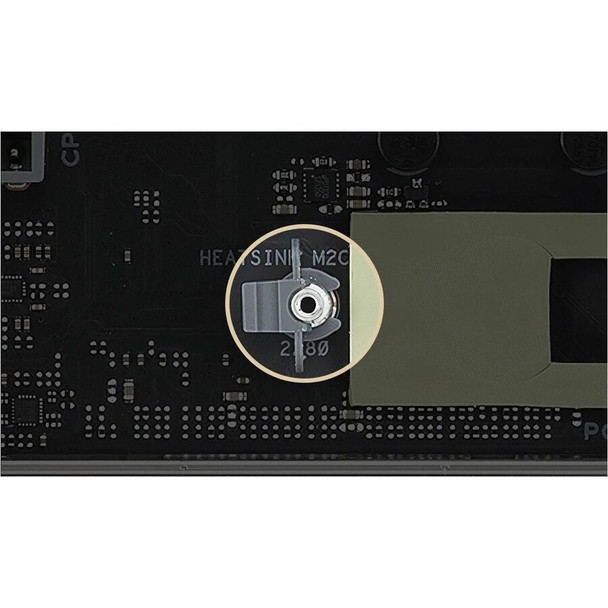

- M.2 Q-Latch
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack^TM button
- BIOS FlashBack^TM LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design and Business Focused Features
- 24/7 reliability
- Overcurrent protectionSoftware Features
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS DriverHub
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS MyHotkeyRemote Management Features
IT Management software supported
- ASUS Control Center Express(ACCE)
BMC Related
1 x BMC switch
1 x BMC debug UART header
1 x BMC LAN fixed IP switch
1 x IPMI switch
1 x Message LED header
1 x microSD card socket
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VPP_I2C header
BMC LED Design
1 x BMC LED
Intel W880 Chipset
Intel vProBIOS
256 Mb Flash ROM UEFI AMI BIOS(text-based)Manageability
WOL by PME, PXEAccessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x AMI license sticker
1 x I/O shield
1 x M.2 Q-Latch packages
2 x M.2 rubber packages
1 x Q-connector
Documentation
1 x ACC Express activation key card
1 x Quick start guideOperating System
Windows 11 (22H2 and later), Windows 10 64-bit(21H2 and later)Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
