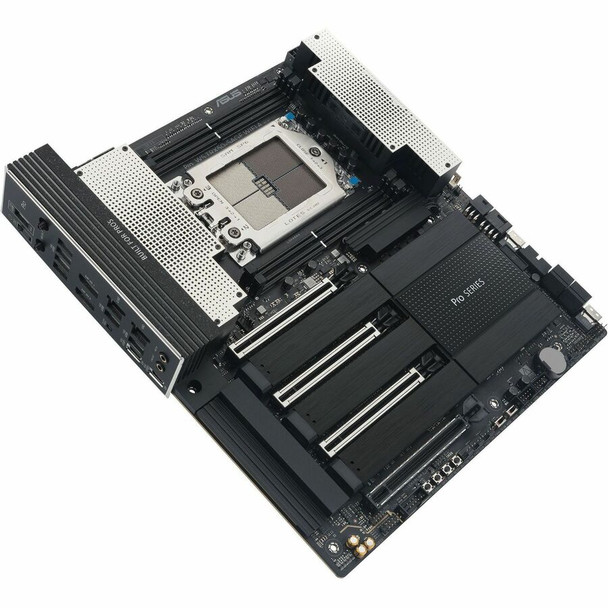

Asus Pro WS TRX50-SAGE WIFI A Workstation Motherboard - AMD TRX50 Chipset - Socket sTR5 - SSI CEB (prowstrx50-sagewifia) PROWSTRX50SAGEWIFIA_25

This item is brand-new, factory sealed.

AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, USB4, 10 Gb and 2.5 Gb LAN, multi-GPU support

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

AMD sTR5 Socket Supports up to 96-Core CPUs: Ready for AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors

CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)

Robust Power & Thermal Design: 20 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad

Ultrafast Connectivity: Three PCIe 5.0 x16 slots, one PCIe 4.0 x16 slot, two USB4 (40Gbps) ports, 10 Gb & 2.5 Gb LAN ports, four M.2 slots, front USB 20Gbps Type-C ports, and SlimSAS NVMe support

Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management

Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operationCPU
AMD Socket sTR5 for Ryzen^TM Threadripper^TM PRO 9000 and 7000 WX-Series and Ryzen^TM Threadripper^TM 9000 and 7000 Series Processors ^note2
Note1: Refer to www.asus.com for CPU support list.
Note2: System boot may take longer with Threadripper^TM 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete.Chipset
AMD TRX50 ChipsetMemory
4 x DIMM slots, DDR5, ECC Registered Memory^note
4 Channel Memory Architecture
Note: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.Expansion Slots
AMD Ryzen^TM Threadripper^TM PRO 9000 and 7000 WX-Series and Ryzen^TM Threadripper^TM 9000 and 7000 Series Processors
3 x PCIe 5.0 x16 slots
1 x PCIe 4.0 x16 slot
Note: Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)Storage
Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports
AMD Ryzen^TM Threadripper^TM PRO 9000 and 7000 WX-Series and AMD Ryzen^TM Threadripper^TM 9000 and 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) ^note2
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) ^note2
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2^note3
4 x SATA 6Gb/s ports
SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3^note3
AMD Ryzen^TM Threadripper^TM PRO 9000 and 7000 WX-Series
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) ^note4
SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device^note4
Note1: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Note2: M.2_1 and M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs
Note3: M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa.
Note4: Supported when the Threadripper^TM PRO series CPU is installedRAID Support
AMD RAIDXpert2 Technology
PCIe RAID 0/1/5/10
SATA RAID 0/1/5/10Ethernet
1 x Marvell AQtion 10Gb Ethernet
1 x Intel I226-LM 2.5Gb EthernetWireless and Bluetooth
"Wi-Fi 7 (Realtek RTL8922AE)
2x2 Wi-Fi 7^note1 (802.11be)
Supports 2.4/5/6GHz frequency band^note2
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth v5.4^note3
Note1: Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
Note2: Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
Note3: The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications."USB
Rear USB (Total 9 ports)
2 x USB4 (40Gbps) (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A )
1 x USB 2.0 ports (1 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD) ^note
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Note: USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0AAudio
Realtek ALC1220P Surround Sound High Definition Audio CODEC^note
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
- Unique de-pop circuit
Note: A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
Note: This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.Back Panel I/O Ports
2 x USB4 (40Gbps) ports (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
2 x DisplayPort IN
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack^TM button
1 x Clear CMOS buttonInternal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
1 x 24-pin Main Power connectors
1 x 4-pin to 24-pin Main Power connectors
2 x 8-pin +12V CPU Power connector
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable RGB Gen 2 header
1 x BMC header
1 x COM Port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
1 x Chassis intrusion header
1 x Thermal Sensor header
7 x ProbeIt Measurement PointsSpecial Features
ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- M.2 Q-Release
- Q-Connector
- Q-DIMM
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- M.2 heatsink backplate
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack^TM button
- BIOS FlashBack^TM LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 header
Bespoke Motherboard Design and Business Focused Features
- 24/7 Reliability
- Overcurrent ProtectionSoftware Features
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Aura Sync
ASUS CPU-Z
ASUS DriverHub
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey
Note1: For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
Note2: For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.Remote Management Features
IT Management software supported
- ASUS Control Center Express(ACCE)
Ready for IPMI Expansion Card^note
1 x BMC header
Note: IPMI Expansion Card is sold separately.BIOS
256 Mb Flash ROM, UEFI AMI BIOSManageability
WOL by PME, PXE (UEFI mode)Accessories

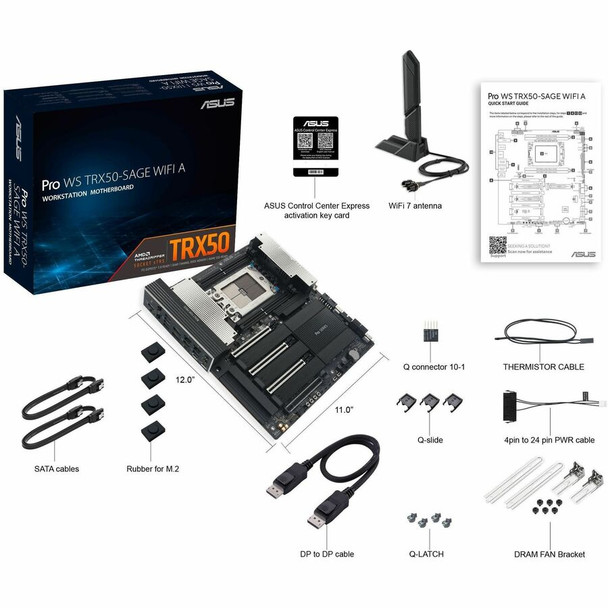

Cables
2 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x DisplayPort cable
1 x 4pin to 24-pin ATX power connector
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Q-Latch package(2 in 1)
2 x M.2 Q-Slide package
2 x M.2 Rubber Packages
1 x Fan bracket
1 x Q-connector
Documentation
1 x ACC Express Activation Key Card
1 x QSGOperating System
Windows 11Form Factor
CEB 12 inch x 11 inch (30.5 cm x 28.0 cm)
