Asus PROARTPF120FANPWMBLACK Case Asus|proart Pf120 Fan Pwm Black R
- SKU:
- 21596766
- MPN:
- proartpf120fanpwmblack
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/06/2026 12:27:18 AM PST
- Stock Update:
- 07/06/2026 12:27:18 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

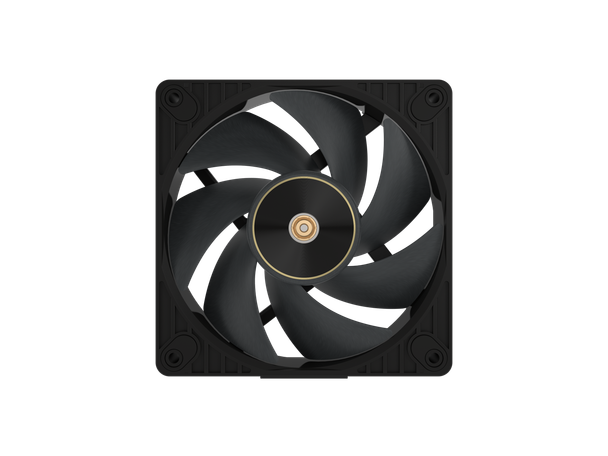

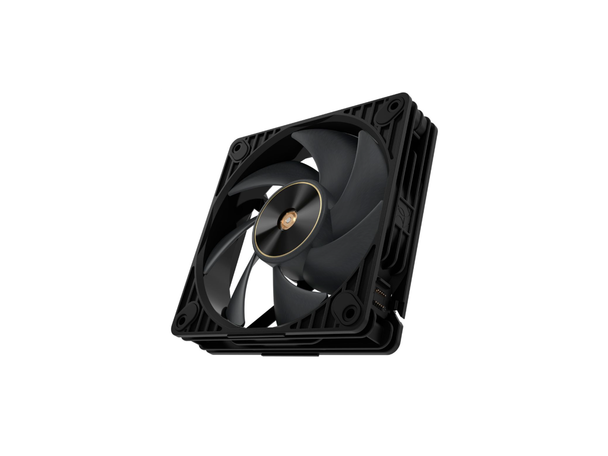

ProArt PF120 PWM Fan | The Art of Performance Cooling,The ProArt PF120 fan delivers superior cooling with premium quality and design for unmatched reliability . Boasting a 28mm frame, powerful 3-phase and 6-pole motor, CNC-milled brass bearing housing, reinforced Liquid Crystal Polymer (LCP) blades, and patented daisy-chain connectors to streamline installation and cable management, the ProArt PF120 is the ideal choice for users who demand peak performance and effortless integration.,28mm Frame Thickness,Enhances airflow with low noise,Smooth & Powerful 3-Phase and 6-Pole Fan Motor,Minimizes noise and vibration,CNC-Milled Brass Bearing Housing,Ensures reliability,Enhanced Airflow,ProArt PF120 fans provide strong airflow and static pressure to ensure a consistently perfect balance of cooling and acoustics performance.,3000rpm,Fan Speed,104.8cfm,Airflow,7.3 mmH2O,Static Pressure,Uncompromised Quality | Smooth & Powerful 3-Phase and 6-Pole Fan Motor,Powerful motor delivers smooth and robust performance by operating at a low frequency. This design minimizes noise and vibration, resulting in superior sound quality and enhanced operational efficiency.,CNC-Milled Brass Bearing Housing,The brass housing stabilizes the motor and bearings for long-term durability and reliability.,Smaller 0.5mm Blade Gap for Reduced Turbulence,A precise 0.5mm parallel gap between the fan blade and the frame enhances airflow efficiency while minimizing turbulence and noise.,Reinforced Liquid Crystal Polymer (LCP) Blades,The fan blades are made using a liquid-crystal polymer (LCP) composite that delivers exceptional strength, minimal thermal expansion, and natural vibration damping-helping to ensure high-speed operation with stable, precise performance.,PWM Fan Efficiency | PQ Curve,Under the same noise performance as competing models, ProArt PF120 fans deliver higher pressure-quantity optimization and better heat outtake efficiency.,PWM Curve,PWM support offers precise fan control via a wide speed adjustment range from 0 to 3000rpm. Users can select silent operation for lighter loads or maximum airflow for more demanding activities.,Patented Daisy-Chain Connectors,Easy fan installation and cable management are enabled via patented daisy-chain connectors, ensuring reliable, vibration-dampening connection between fans. The daisy-chain design lets users link multiple fans together using just one cable, saving time and effort while creating a cleaner, more efficient PC.,Perfectly Match Your Build,The ProArt PF120 comes in white or black, so its suitable for builders seeking to match a lighter aesthetic or a classic black look.,Reinforced Liquid Crystal Polymer(LCP) Blades,Smaller 0.5mm Blade Gap for Reduced Turbulence,Patented Daisy-Chain Connectors for Seamless InstallationProArt PF120 Cooling Fan Heavy-duty fan shroud ensures safe operation Fluid Dynamic Bearing fan bearing type for maximum cooling/heating usability with added feasibility Fully compatible with standard PCs
Features
Application/Usage:
PC
PC
Specs
| Physical Characteristics | |
| Product Material |
|
| Maximum Fan Diameter | 4.72" |
| Fan Width | 4.72" |
| Product Color | Black |
| Fan Depth | 1.10" |
| Color Family | Black |
| Fan Height | 4.72" |
| Warranty | |
| Limited Warranty | 6 Year |
| Fan Information | |
| Pulse-width Modulation (PWM) Support | Yes |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Maximum Airflow | 104.80 CFM |
| Maximum Air Pressure | 7.3mmH2O |
| Fan Speed (Max) | 3000 rpm |
| Noise Levels (A-Weighted) | 39 dB(A) |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ProArt PF120 PWM Fan | The Art of Performance Cooling The ProArt PF120 fan delivers superior cooling with premium quality and design for unmatched reliability . Boasting a 28mm frame, powerful 3-phase and 6-pole motor, CNC-milled brass bearing housing, reinforced Liquid Crystal Polymer (LCP) blades, and patented daisy-chain connectors to streamline installation and cable management, the ProArt PF120 is the ideal choice for users who demand peak performance and effortless integration. 28mm Frame Thickness Enhances airflow with low noise Smooth & Powerful 3-Phase and 6-Pole Fan Motor Minimizes noise and vibration CNC-Milled Brass Bearing Housing Ensures reliability Reinforced Liquid Crystal Polymer(LCP) Blades Smaller 0.5mm Blade Gap for Reduced Turbulence Patented Daisy-Chain Connectors for Seamless Installation Enhanced Airflow ProArt PF120 fans provide strong airflow and static pressure to ensure a consistently perfect balance of cooling and acoustics performance. 3000rpm Fan Speed 104.8cfm Airflow 7.3 mmH2O Static Pressure Uncompromised Quality | Smooth & Powerful 3-Phase and 6-Pole Fan Motor Powerful motor delivers smooth and robust performance by operating at a low frequency. This design minimizes noise and vibration, resulting in superior sound quality and enhanced operational efficiency. CNC-Milled Brass Bearing Housing The brass housing stabilizes the motor and bearings for long-term durability and reliability. Smaller 0.5mm Blade Gap for Reduced Turbulence A precise 0.5mm parallel gap between the fan blade and the frame enhances airflow efficiency while minimizing turbulence and noise. Reinforced Liquid Crystal Polymer (LCP) Blades The fan blades are made using a liquid-crystal polymer (LCP) composite that delivers exceptional strength, minimal thermal expansion, and natural vibration damping-helping to ensure high-speed operation with stable, precise performance. PWM Fan Efficiency | PQ Curve Under the same noise performance as competing models, ProArt PF120 fans deliver higher pressure-quantity optimization and better heat outtake efficiency. PWM Curve PWM support offers precise fan control via a wide speed adjustment range from 0 to 3000rpm. Users can select silent operation for lighter loads or maximum airflow for more demanding activities. Patented Daisy-Chain Connectors Easy fan installation and cable management are enabled via patented daisy-chain connectors, ensuring reliable, vibration-dampening connection between fans. The daisy-chain design lets users link multiple fans together using just one cable, saving time and effort while creating a cleaner, more efficient PC. Perfectly Match Your Build The ProArt PF120 comes in white or black, so its suitable for builders seeking to match a lighter aesthetic or a classic black look. |
| Product Type | Cooling Fan |
| Product Name | ProArt PF120 Cooling Fan |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PROART PF120 FAN PWM BLACK |
| Product Line | ProArt PF120 |
