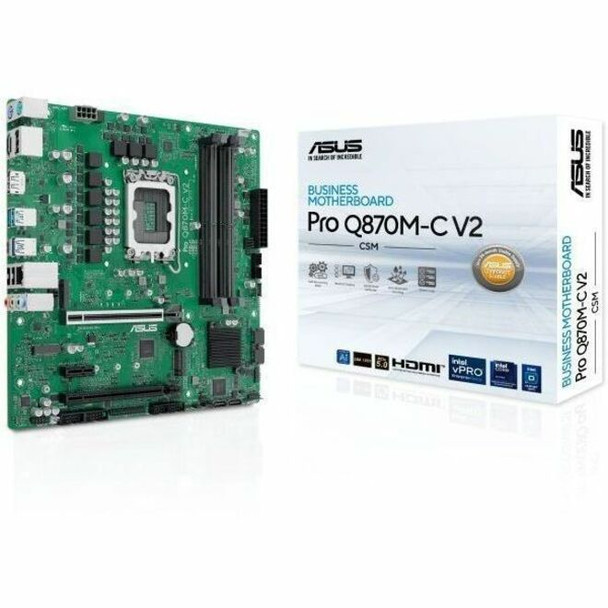

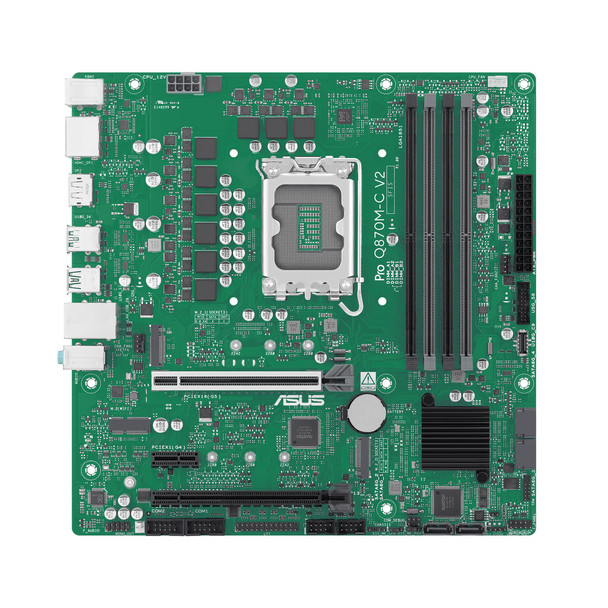

Asus Pro Q870M-C V2-CSM Desktop Motherboard - Intel Q870 Chipset - Socket LGA-1851 - Micro ATX (proq870m-cv2-csm)

This item is brand-new, factory sealed.

Micro-ATX Q870 business motherboard with Intel vPro support and enhanced security, reliability and manageability
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)
ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C
DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headersModel
Pro Q870M-C V2-CSMNews and Updates
Please visit our GLOBAL website to check and download the latest updates.CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset
Intel Q870 ChipsetMemory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
7200MT/s with Intel Core Ultra 200S Plus Processors
6400MT/s with Intel Core Ultra 200S Processors,
Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)"
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics
2 x DisplayPort
1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Supports 4K at 60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors or graphic cards resolution.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.Expansion Slots
Intel Core Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
Intel Q870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(series 2)

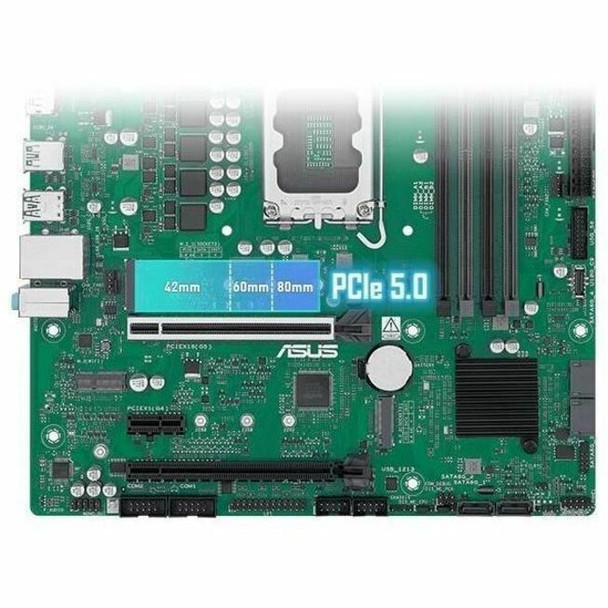

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel Q870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.Ethernet
1 x Intel I219LM 1Gb Ethernet
ASUS LANGuard
With Intel I219LM LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.Wireless and Bluetooth
M.2 slot only 2230 (Key E, CNVi and PCIe)
Wi-Fi module is sold separately.USB
Rear USB (Total 6 ports)
1 x USB 10Gbps port (1 x USB Type-C)
2 x USB 10Gbps ports (2 x Type-A )
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 portsAudio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports
1 x USB 10Gbps port (1 x USB Type-C)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A )
2 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
1 x Intel 1Gb Ethernet
3 x Audio jacksInternal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME CPU
1 x DIS ME PCH
1 x LPT header
1 x Mono-Out Audio header (with Amp IC)
1 x M.2 slot (Key E)
1 x Speaker header
1 x 10-1 pin Front Panel System headerSpecial Features
ASUS Q-Design
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Box headers
- BIOS EZ Deploy
- Dual DIMM clips
- SafeSlot
Bespoke Motherboard Design and Business Focused Features
- ASUS Boot Defender
- ASUS Self Recovering BIOS
- ASUS BIOS EZ Deploy
- ASUS Event Log
- ASUS MyHotkey
- ASUS Commercial BIOS Kit
- Anti-moisture coating
- 24/7 Reliability
- Overcurrent Protection
- Intel Trusted Execution Technology (Intel TXT) support
Please contact local FAE for Commercial BIOS kit.
After updating BIOS, the system automatically enters S5 and needs to be restarted.
TPM IC onboardSoftware Features
ASUS Exclusive Software
ASUS DriverHub
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS MyHotkeyRemote Management Features
IT Management software supported
- ASUS Control Center Express(ACCE)
Intel Q870 Chipset
Intel vProBIOS
256 Mb Flash ROMManageability
WOL by PME, PXEAccessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x Screw package for M.2 SSD
1 x I/O Shield
1 x M.2 Key E screw package
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide
